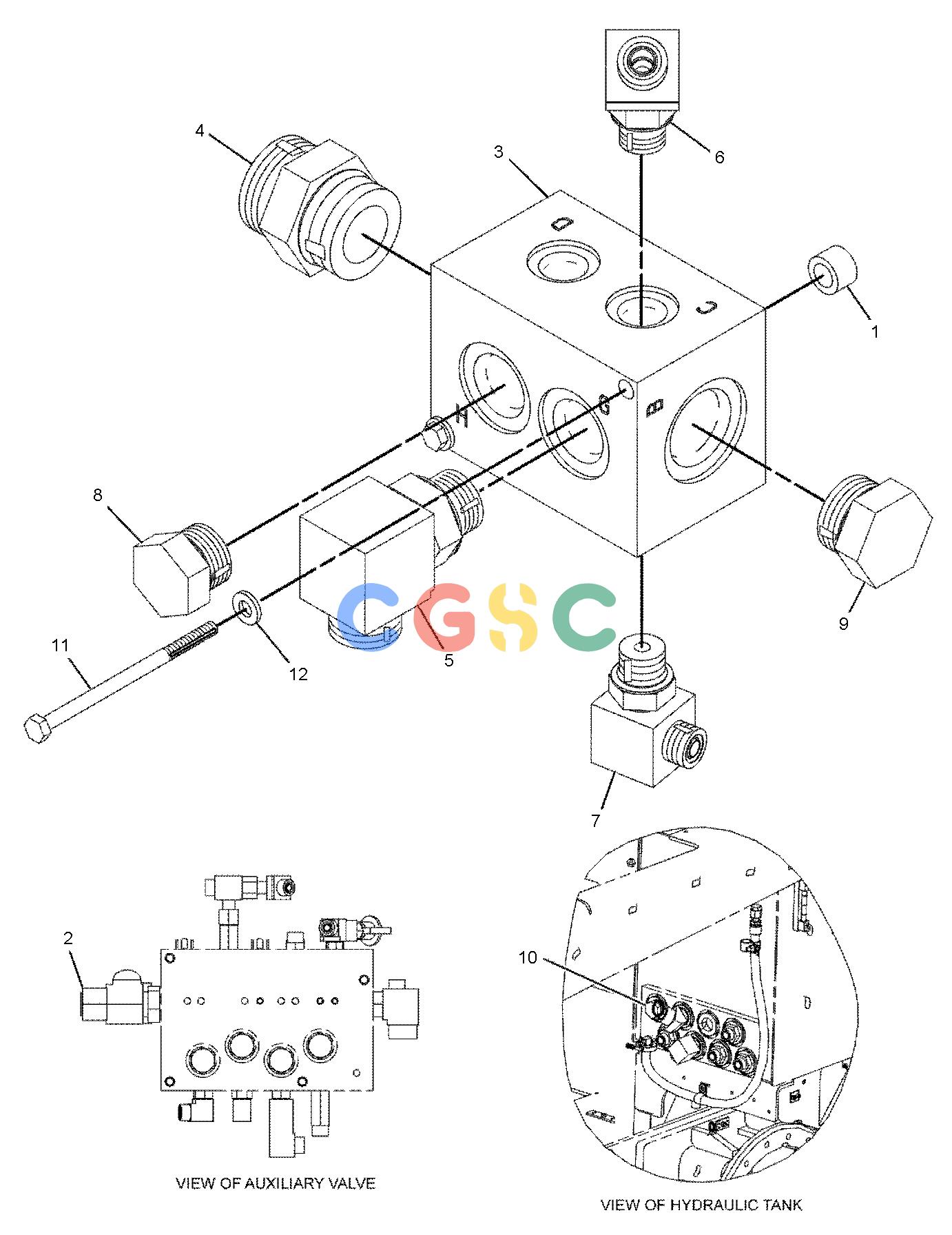

卡特零件查询（AP-655C） 243-3867: MANIFOLD GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
541 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5K-2232 | [2] | SPACER(11-MM THK) | |
| 2. | 6V-9832 | [1] | CAP(ORFS) | |
| 3. | 107-0003 | [1] | MANIFOLD | |
| 4. | 148-8334 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 8T-3611 | [1] | CONNECTOR | |
| 5. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 148-8354B | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 7. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 8. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 9. | 164-4180 | [1] | PLUG AS | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 10. | 164-5616B | [1] | PLUG AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 9S-6130 | [1] | PLUG | |
| 11. | 7X-0465M | [2] | BOLT(M6X1X100-MM) | |
| 12. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
