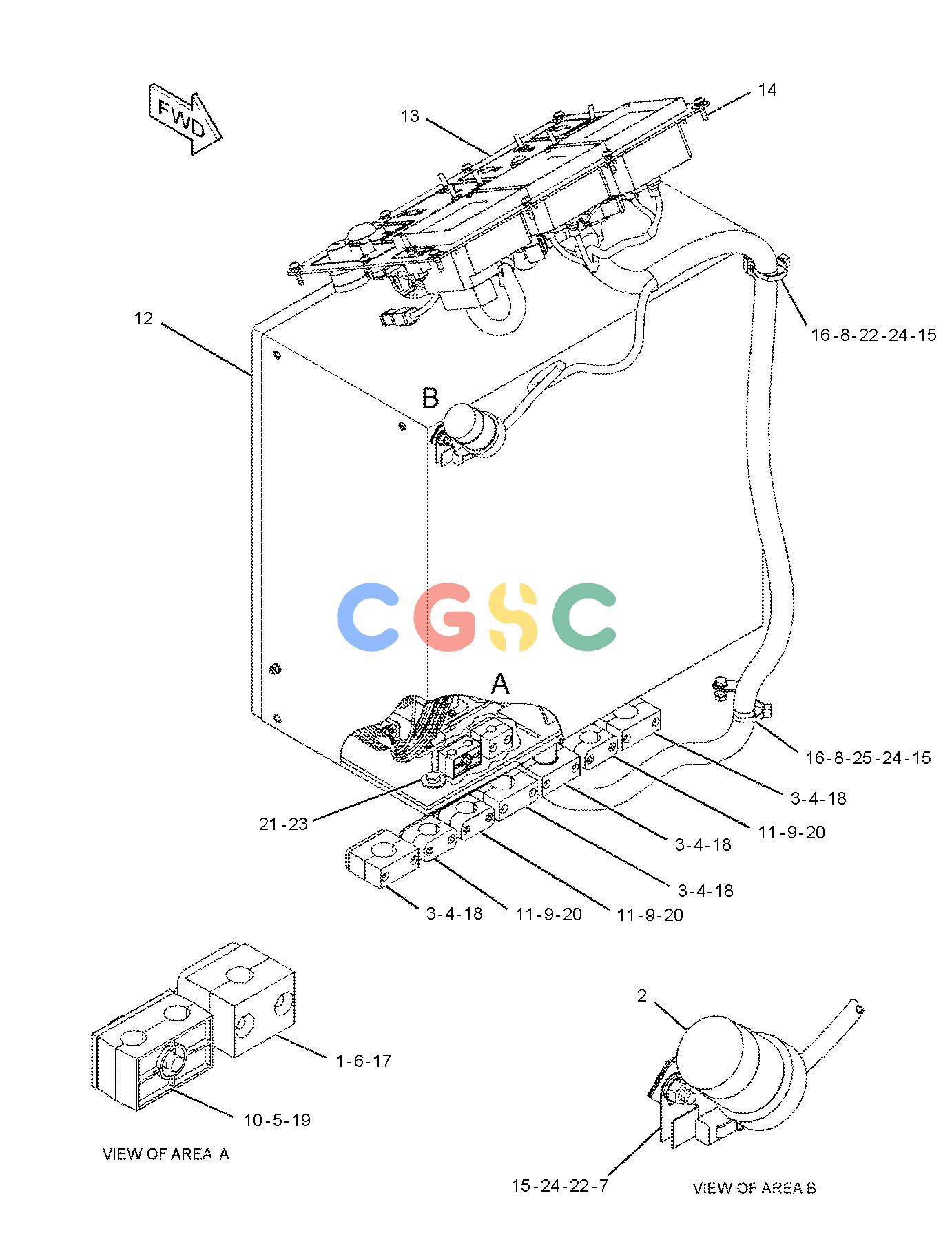

卡特零件查询（AP-655C） 260-9624: WIRING GP-CONSOLE
广数供应链运营团队, 16 02月, 2025，浏览：
628 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-8781 | [2] | CLAMP(HALF) | |
| 2. | 3E-6328Y | [1] | ALARM GP(24-VOLT)(ACTION) | |
| 3. | 7R-7940 | [8] | CLAMP | |
| 4. | 7R-7951 | [4] | PLATE | |
| 5. | 102-8703 | [1] | PLATE-COVER | |
| 6. | 107-4749 | [1] | PLATE | |
| 7. | 116-0118 | [1] | CLIP | |
| 8. | 132-5789 | [2] | CLIP(LADDER) | |
| 9. | 143-9644 | [3] | PLATE-RETAINER | |
| 10. | 154-4879 | [2] | CLAMP-HALF | |
| 11. | 208-0075 | [6] | CLAMP-HALF | |
| 12. | 262-9205Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 13. | 262-9210Y | [1] | PANEL GP-INSTRUMENT | |
| 14. | 3E-8020M | [10] | SCREW-TRUSS HEAD(M6X1X25-MM) | |
| 15. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 16. | 7K-1181 | [2] | STRAP-CABLE | |
| 17. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 18. | 7X-2535M | [8] | BOLT(M6X1X60-MM) | |
| 19. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 20. | 8T-2947M | [6] | BOLT(M6X1X45-MM) | |
| 21. | 8T-4137M | [5] | BOLT(M10X1.5X20-MM) | |
| 22. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 23. | 8T-4222 | [5] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 24. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
