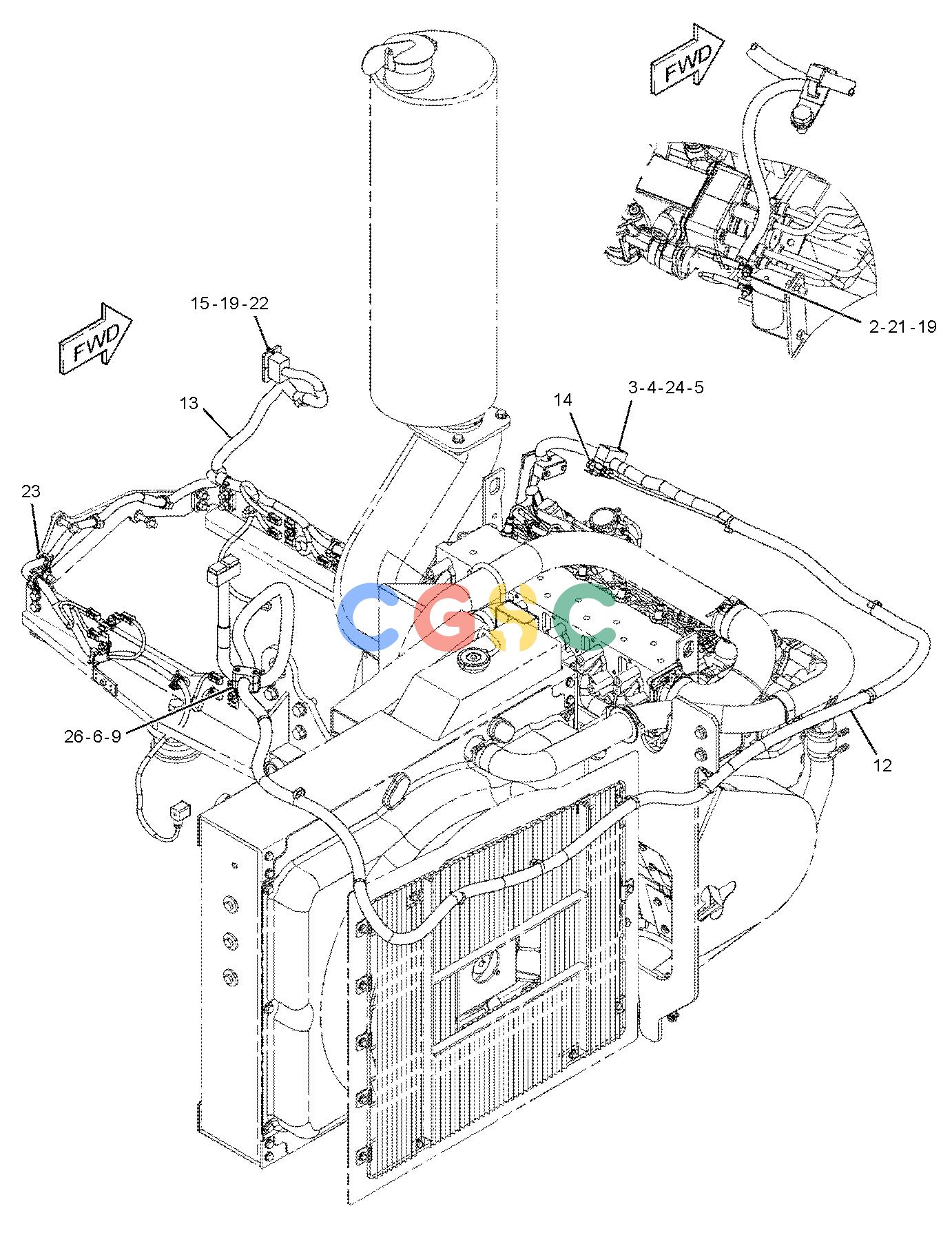

卡特零件查询（AP-655C） 246-5394: WIRING GP-POWER TRAIN
广数供应链运营团队, 16 02月, 2025，浏览：
808 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093B | [16] | STRAP-CABLE | |
| 2. | 6V-9502 | [2] | LOCKWASHER | |
| 3. | 7R-7939 | [4] | CLAMP-PIPE | |
| 4. | 7R-7951 | [2] | PLATE | |
| 5. | 116-0118 | [12] | CLIP | |
| 6. | 143-9644 | [1] | PLATE-RETAINER | |
| 7. | 183-1025 | [1] | STRAP AS | |
| 8. | 203-6605 | [1] | SEAL | |
| 9. | 208-0075 | [2] | CLAMP-HALF | |
| 10. | 209-6394 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(100-CM) | |
| | 8T-8799 | [2] | BOOT(RED) | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 6T-5598 | [1] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| 11. | 210-9264 | [1] | SPACER(10.7X17.5X25.4-MM THK) | |
| 12. | 246-5396 | [1] | HARNESS AS-ENGINE | |
| | 9X-4391 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 9X-7147 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 13. | 248-2067 | [1] | HARNESS AS-PUMP(PROPEL) | |
| | 102-8802 | [3] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [13] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9X-7143 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| 14. | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| 15. | 3B-4501 | [2] | LOCKWASHER | |
| 16. | 4P-7428 | [2] | CLIP(LADDER) | |
| 17. | 4P-7581 | [10] | CLIP(LADDER) | |
| 18. | 4P-8134 | [3] | CLIP(LADDER) | |
| 19. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 20. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 6V-5210M | [2] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 22. | 6V-9672M | [2] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 23. | 7K-1181B | [32] | STRAP-CABLE | |
| 24. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 25. | 8S-0948 | [1] | CLIP | |
| 26. | 8T-2947M | [2] | BOLT(M6X1X45-MM) | |
| 27. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 29. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 30. | 8T-2223M | [1] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| 31. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 32. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 34. | 160-2244E | | SLEEVE-ABRASION(30-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
