卡特零件查询（AP-655C） 246-2988: PLATE & FILM GP
广数供应链运营团队, 16 02月, 2025，浏览：
893 次

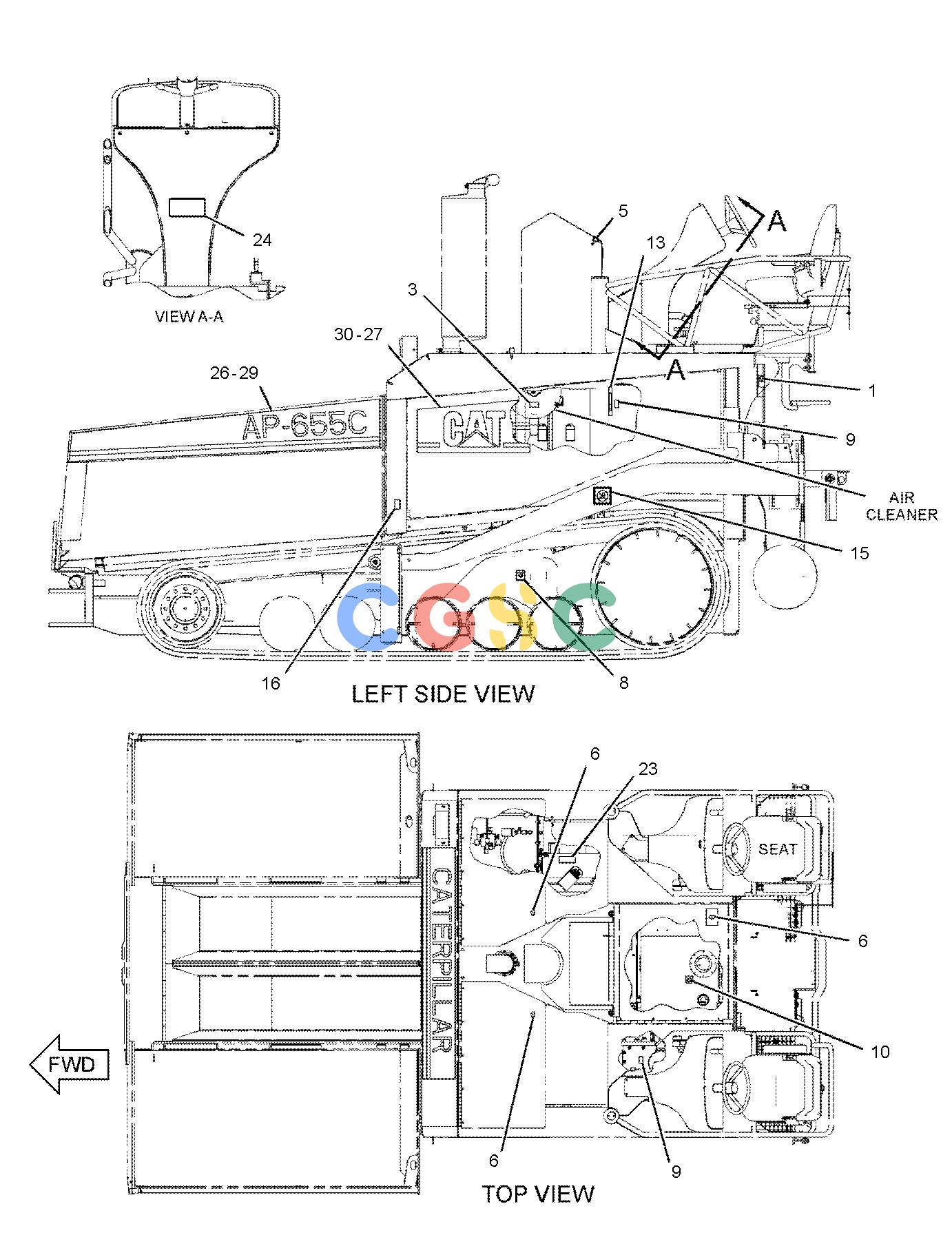

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-2807 | [2] | FILM-IDENTIFICATION(LIFT EYE LOCATION) | |
| 3. | 4P-6422 | [1] | FILM-WARNING(NO ETHER SPRAY/AIR INTAKE) | |
| 4. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 5. | 5P-8500 | [2] | KEY | |
| 6. | 246-2641 | [4] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 7. | 7X-3229 | [2] | FILM-IDENTIFICATION(LIFT EYE, TIE-DOWN LOCATION) | |
| 8. | 7X-7644 | [4] | FILM-IDENTIFICATION(TIE-DOWN) | |
| 9. | 8C-4316 | [2] | FILM-IDENTIFICATION(HYDRAULIC OIL) | |
| 10. | 8C-4535 | [1] | FILM-IDENTIFICATION(DIESEL FUEL) | |
| 11. | 8T-6986 | [1] | PLATE AS-WARNING(SLOW MOVING VEHICLE) | |
| 12. | 9N-7042 | [1] | CHAIN AS(HOPPER) | |
| 13. | 121-2913 | [1] | FILM-INSTRUCTION(HYDRAULIC OIL LEVEL) | |
| 14. | 123-4082 | [2] | FILM-INFORMATION(HEIGHT SCALE) | |
| 15. | 124-2456 | [2] | FILM-INSTRUCTION(NO STEP) | |
| 16. | 129-6813 | [2] | FILM(TOW POINT CYLINDER) | |
| 18. | | [2] | FILM-SCALE |
| 23. | 190-2938 | [1] | FILM-WARNING(ENG COOLANT PRESSURE, READ OMM) | |
| 24. | 211-4870 | [1] | FILM-IDENTIFICATION(PROPEL OVERRIDE) | |
| 26. | 217-8474 | [1] | FILM(AP-655C, LH) | |
| 27. | 217-8475 | [1] | FILM(CAT, LH) | |
| 28. | 217-8476 | [1] | FILM-IDENTIFICATION(CATERPILLAR) | |
| 29. | 217-8479 | [1] | FILM(AP-655C, RH) | |
| 30. | 218-0902 | [1] | FILM(CAT, RH) | |
| 33. | 239-6986 | [1] | PLATE-SERIAL NUMBER(MACHINE) | |
| 34. | 241-0859 | [2] | ROD-THREADED | |
| 35. | 243-5211 | [1] | BRACKET | |
| 36. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 37. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 38. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 39. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 40. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 41. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | | | |
| | AF | [1] | PLATE-SERIAL NUMBER(ENGINE) |
| | 219-3009F | [1] | HOSE AS(TRACK TENSION CYLINDER PURGE) | |
| | 219-3008I | [1] | HOSE AS | |
| | 148-1886 | [1] | COUPLING(FEMALE) | |
| | 148-8337 | [1] | CONNECTOR AS | |
| | A | | NOT PART OF THIS GROUP |
| | F | | NOT SHOWN |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
