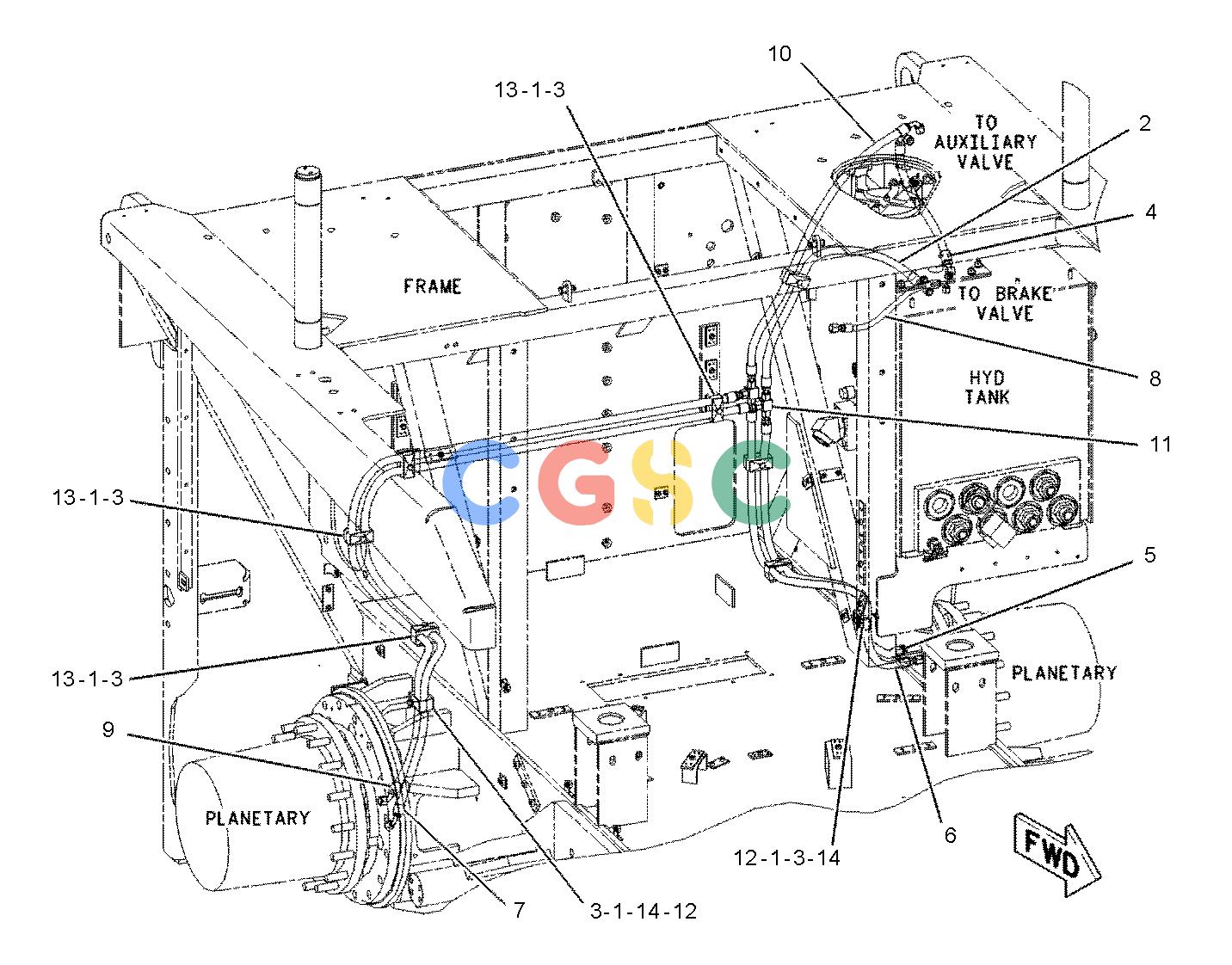

卡特零件查询（AP-655C） 243-3874: HYDRAULIC AR-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
117 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 191-5240Y | [1] | VALVE & MTG GP-TRACK TENSIONER | |
| | 190-9989Y | [1] | CYLINDER & MTG GP-AUGER | |
| | 190-8795Y | [1] | CYLINDER & MTG GP-HOPPER | |
| | 190-8796Y | [1] | CYLINDER & MTG GP-SCREED HOIST | |
| | 195-2881Y | [1] | CYLINDER & MTG GP-TOW POINT | |
| | 198-6164Y | [1] | LINES GP-AUXILIARY HYDRAULIC | |
| | 198-6163Y | [1] | LINES GP-BRAKE & SHIFT | |
| | 198-6162Y | [1] | LINES GP-CYLINDER | |
| | 200-3197Y | [1] | LINES GP-GRADE & SLOPE | |
| | 198-6161Y | [1] | LINES GP-HOPPER | |
| | 243-3592Y | [1] | LINES GP-RETURN | |
| | 198-6159Y | [1] | LINES GP-SCREED | |
| | 191-4902Y | [1] | LINES GP-TRACK TENSION | |
| | 197-7419Y | [1] | MANIFOLD & VALVE GP(RETURN, OIL COOLER BYPASS) | |
| | 243-3867Y | [1] | MANIFOLD GP-HYDRAULIC | |
| | 197-7420Y | [1] | MANIFOLD GP-HYDRAULIC(AUXILIARY) | |
| | 190-9954Y | [1] | PUMP & MTG GP-AUXILIARY | |
| | 194-2567Y | [1] | PUMP & VALVE GP-BRAKE | |
| | 190-9963Y | [1] | VALVE & MTG GP-AUXILIARY | |
| | 204-5351Y | [1] | VALVE & MTG GP-CONTROL(SHUTOFF) | |
| | 190-9964Y | [1] | VALVE & MTG GP-TOW POINT | |
| | 194-2566Y | [1] | VALVE GP-COUNTERBALANCE | |
| | Y | | SEPARATE ILLUSTRATION |
