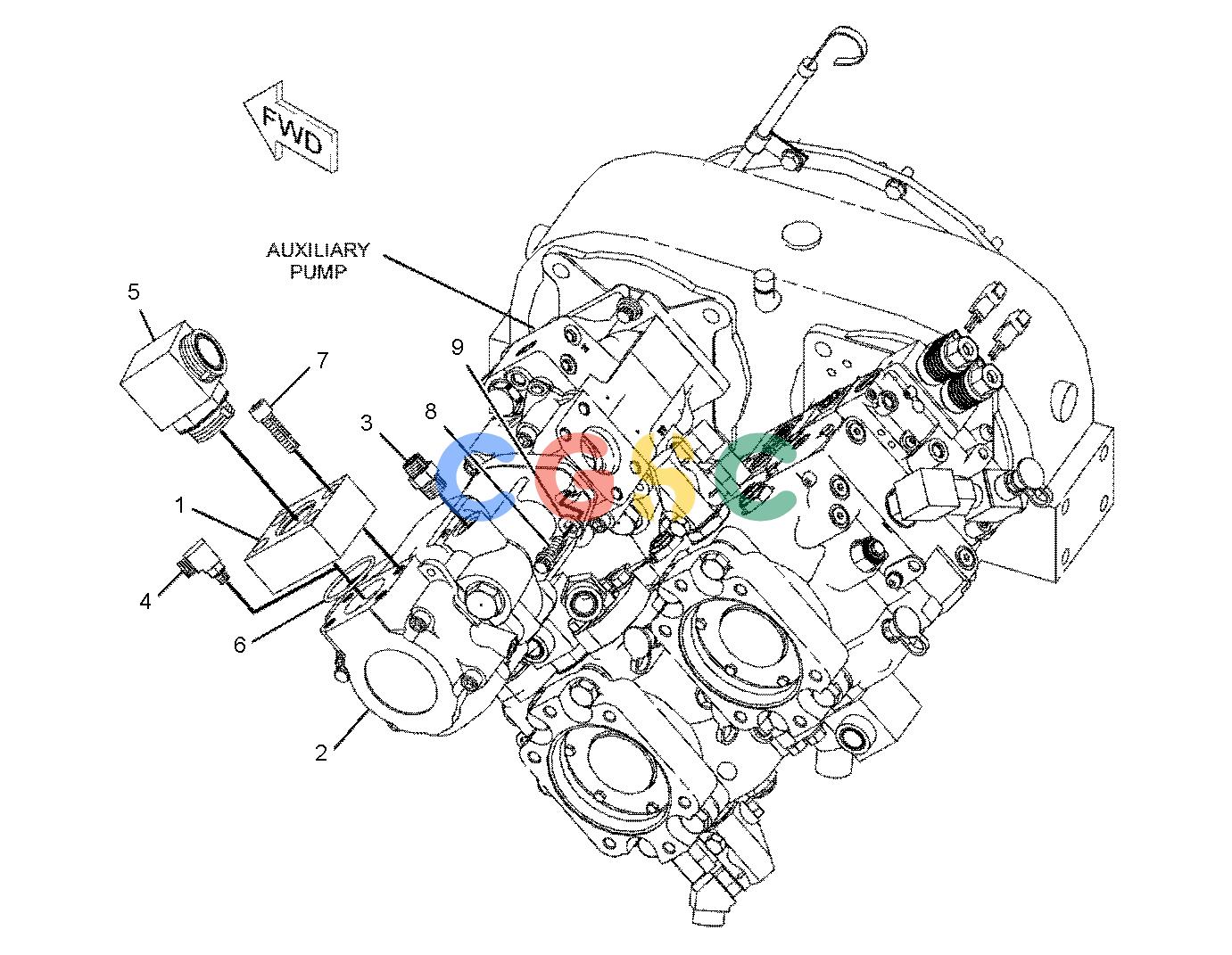

卡特零件查询（AP-655C） 241-8821: PUMP & MTG GP-GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
741 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8993 | [1] | FLANGE-ADAPTER | |
| 2. | 241-8646Y | [1] | PUMP GP-PISTON(GENERATOR)(GENERATOR) | |
| 3. | 148-8345 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 4. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 5. | 204-9815 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-1682 | [1] | ELBOW | |
| 6. | 4J-0527 | [1] | SEAL-O-RING | |
| 7. | 5S-2256 | [4] | BOLT(1/2-13X1.75-IN) | |
| 8. | 8M-2530 | [2] | BOLT-12 POINT HEAD(1/2-13X1.25-IN) | |
| 9. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
