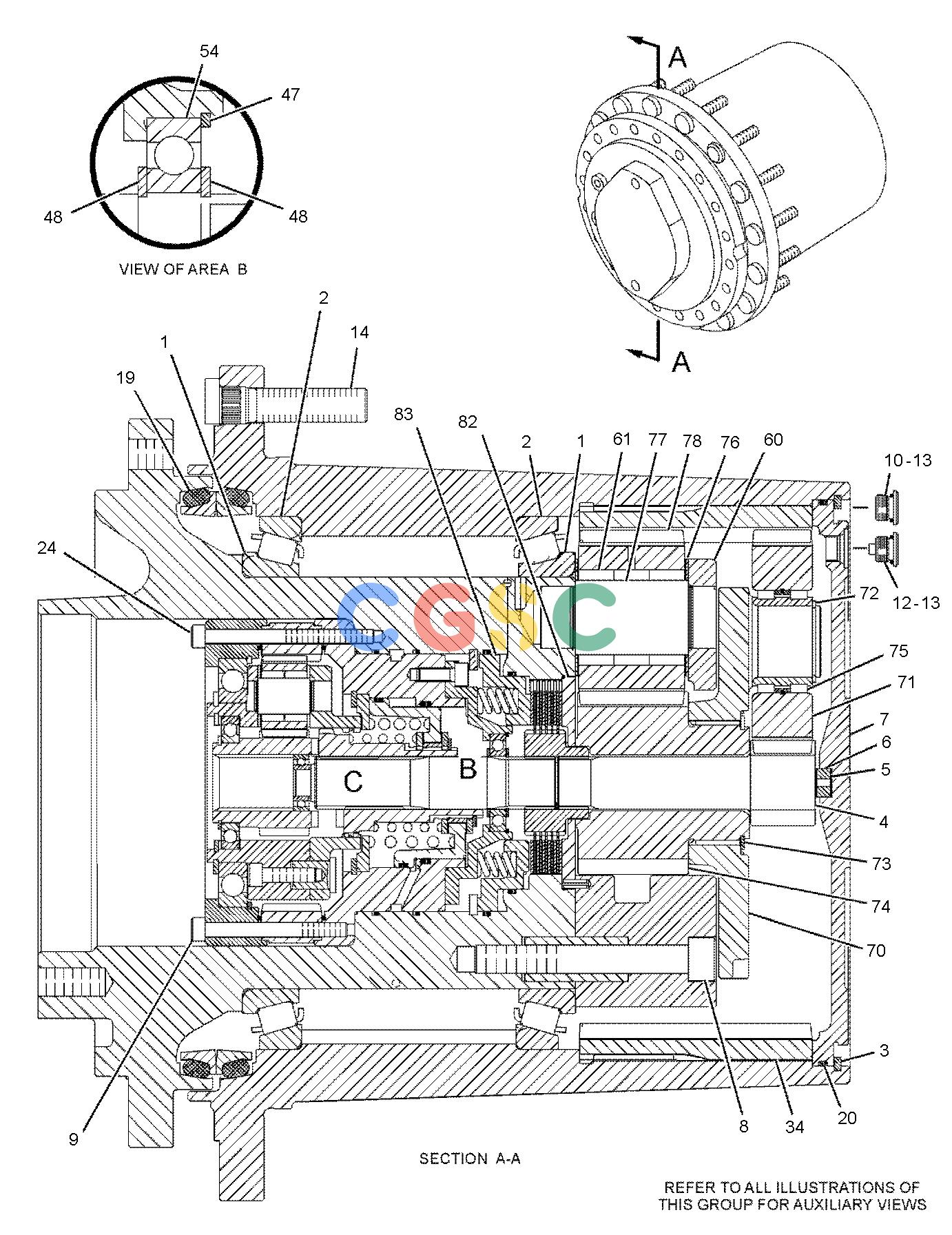

卡特零件查询（AP-655C） 256-9597: PLANETARY GP-FINAL DRIVE
广数供应链运营团队, 16 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 151-3084 | [2] | CONE | |
| 2. | 151-3085 | [2] | CUP | |
| 3. | 241-0163 | [1] | RING-RETAINING | |
| 4. | 240-9113 | [1] | GEAR-SUN | |
| 5. | 191-4441 | [1] | KIT-SHIM(INCLUDES 3-SHIMS) | |
| | | | (INCLUDES 3-SHIMS) |
| 6. | 191-2287 | [1] | PAD | |
| 7. | 240-9112 | [1] | COVER | |
| 8. | 095-0707M | [4] | BOLT(M16X2X120-MM) | |
| 9. | 8T-4776M | [8] | BOLT-SOCKET HEAD(M8X1.25X100-MM) | |
| 10. | 9S-8004 | [3] | PLUG(9/16-18-THD) | |
| 11. | 8C-3312 | [1] | RING-RETAINING | |
| 12. | 235-3610 | [1] | PLUG-MAGNETIC | |
| 13. | 3J-1907 | [4] | SEAL-O-RING | |
| 14. | 240-9924 | [16] | STUD-WHEEL | |
| 15. | 8C-3113 | [1] | RING-RETAINING | |
| 16. | 151-7494 | [16] | SPRING | |
| 17. | HZ | [1] | SHIM KIT |
| 18. | 251-9614 | [1] | KIT-SHIM(PARKING BRAKE) | |
| | | | (INCLUDES 3-SHIMS) |
| 19. | 243-0954 | [1] | SEAL GP-DUO-CONE | |
| 20. | 2D-6533 | [1] | SEAL-O-RING | |
| 21. | LZ | [6] | BRAKE DISC(STEEL) |
| 22. | 6V-5203P | [1] | RING-RETAINING | |
| 23. | 8T-1158PM | [4] | BOLT-SOCKET HEAD(M8X1.25X20-MM) | |
| 24. | 6V-5196PM | [2] | BOLT-SOCKET HEAD(M8X1.25X80-MM) | |
| 25. | LZ | [5] | BRAKE DISC |
| 26. | NZ | [1] | RING |
| 27. | NZ | [1] | SEAL-O-RING |
| 28. | NZ | [3] | SEAL-O-RING |
| 29. | NZ | [1] | RING |
| 30. | PZ | [1] | RING |
| 31. | PZ | [1] | PISTON HOUSING |
| 32. | PZ | [1] | PLATE |
| 33. | 243-5389 | [4] | PIN-SPRING | |
| 34. | 243-0716 | [1] | GEAR-RING(69-TEETH) | |
| 35. | PZ | [1] | FLANGE-BEARING |
| 36. | PZ | [1] | PISTON |
| 37. | PZ | [2] | WASHER-SPRING |
| 38. | PZ | [1] | COUPLING |
| 39. | PZ | [1] | SUN GEAR |
| 40. | PZ | [1] | FLANGE |
| 41. | PZ | [1] | SHAFT |
| 42. | SZ | [1] | SNAP RING |
| 43. | SZ | [1] | SNAP RING |
| 44. | SZ | [1] | SNAP RING |
| 45. | SZ | [1] | SNAP RING |
| 46. | SZ | [1] | SNAP RING |
| 47. | SZ | [1] | SNAP RING |
| 48. | SZ | [2] | SNAP RING |
| 49. | TZ | [1] | RING |
| 50. | TZ | [1] | SEAL-O-RING |
| 51. | TZ | [1] | SEAL-O-RING |
| 52. | TZ | [1] | RING |
| 53. | TZ | [2] | SEAL-O-RING |
| 54. | UZ | [1] | BALL BEARING |
| 55. | UZ | [1] | BALL BEARING |
| 56. | UZ | [1] | BALL BEARING |
| 57. | UZ | [1] | BALL BEARING |
| 58. | VZ | [1] | SPRING |
| 59. | VZ | [1] | SPRING |
| 60. | WZ | [1] | CARRIER |
| 61. | WZ | [300] | BEARING-NEEDLE |
| 62. | XZ | [6] | WASHER-THRUST |
| 63. | XZ | [3] | SHAFT-GEAR |
| 64. | XZ | [3] | GEAR |
| 65. | XZ | [1] | CARRIER |
| 66. | XZ | [3] | DOWEL PIN |
| 67. | XZ | [3] | BOLT-SOCKET HEAD |
| 68. | XZ | [114] | BEARING-NEEDLE |
| 69. | XZ | [1] | CARRIER |
| 70. | JZ | [1] | CARRIER |
| 71. | JZ | [3] | GEAR |
| 72. | JZ | [3] | SNAP RING |
| 73. | JZ | [1] | SNAP RING |
| 74. | JZ | [1] | SUN GEAR |
| 75. | JZ | [3] | BEARING-NEEDLE |
| 76. | WZ | [8] | WASHER-THRUST |
| 77. | WZ | [4] | SHAFT-GEAR |
| 78. | WZ | [4] | GEAR |
| 79. | PZ | [1] | BUSHING |
| 81. | HZ | [1] | SHIM KIT |
| 82. | 271-9390 | [1] | PLATE-BRAKE | |
| 83. | 136-8067 | [1] | PISTON-BRAKE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 240-5328H | [1] | KIT-SHIM(SHIFTER)(PLANETARY) | |
| | 240-5332J | [1] | KIT-PLANETARY CARRIER(STAGE 2) | |
| | 240-5321L | [1] | KIT-BRAKE DISC(PLANETARY) | |
| | 240-5322N | [1] | KIT-SEAL(BRAKE)(PLANETARY) | |
| | 240-5323P | [1] | KIT-PLANETARY GEAR(PISTON HOUSING SHIFTER) | |
| | 240-5324S | [1] | KIT-RETAINING RING(SHIFTER, BEARING)(PLANETARY) | |
| | 240-5325T | [1] | KIT-SEAL(SHIFTER)(PLANETARY) | |
| | 240-5326U | [1] | KIT-BEARING(SHIFTER)(PLANETARY) | |
| | 240-5327V | [1] | KIT-SPRING(SHIFTER)(PLANETARY) | |
| | 243-0718W | [1] | KIT-PLANETARY CARRIER(STAGE 3) | |
| | 240-5331X | [1] | KIT-PLANETARY CARRIER(STAGE 1) | |
| | 251-9614 | [1] | KIT-SHIM(PARKING BRAKE)(PLANETARY) | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | U | | KIT MARKED U SERVICES PART(S) MARKED U |
| | V | | KIT MARKED V SERVICES PART(S) MARKED V |
| | W | | KIT MARKED W SERVICES PART(S) MARKED W |
| | X | | KIT MARKED X SERVICES PART(S) MARKED X |
| | Z | | NOT SERVICED SEPARATELY |
