卡特零件查询（AP-655C） 190-6461: PUMP & MTG GP-PROPEL
广数供应链运营团队, 16 02月, 2025，浏览：
994 次

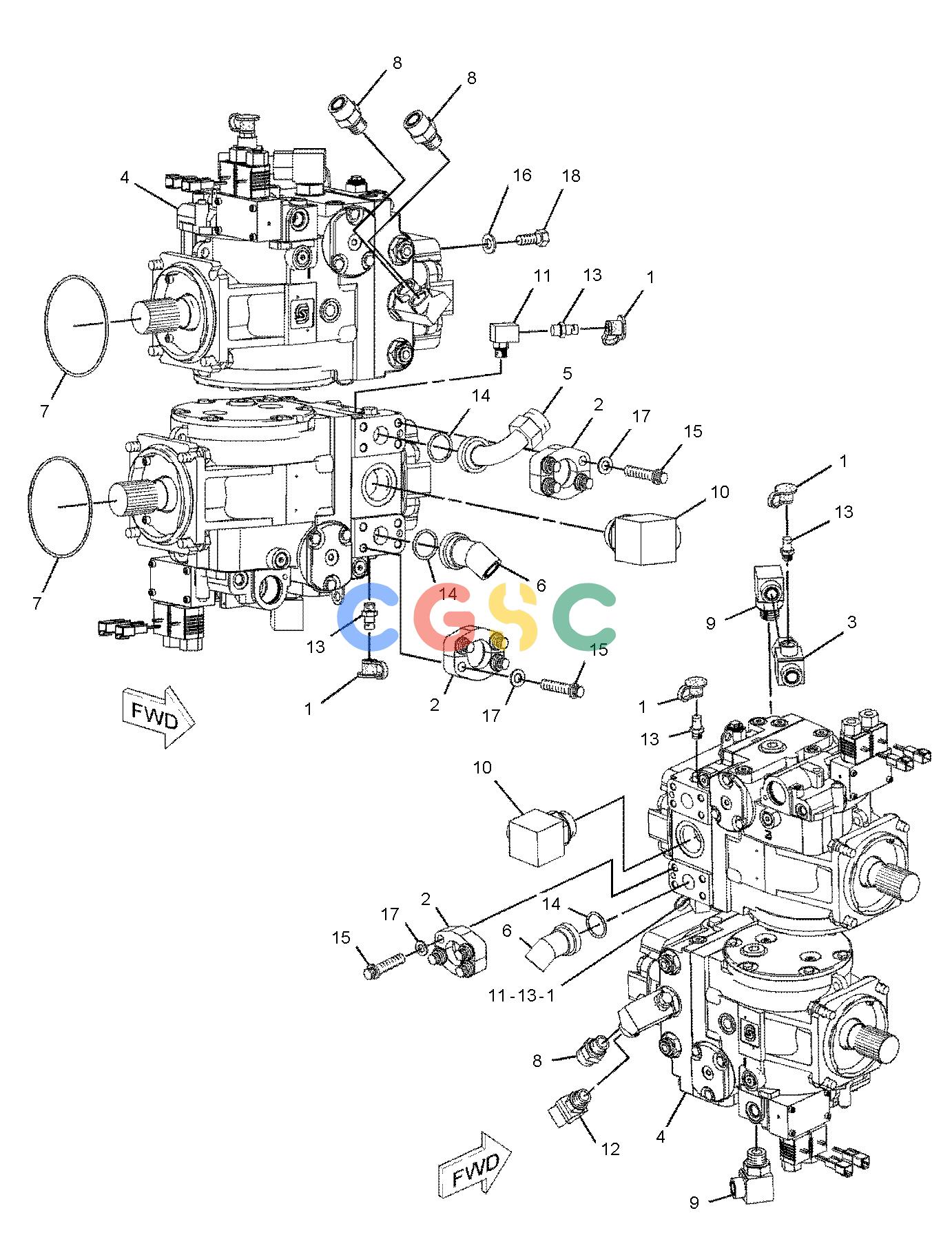

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [5] | CAP-DUST | |
| 2. | 124-4288 | [6] | FLANGE-SPLIT | |
| 3. | 148-8430 | [1] | TEE AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7X-0873 | [1] | TEE | |
| 4. | 190-6480Y | [2] | PUMP GP-PISTON(PROPEL) | |
| 5. | 210-2041 | [1] | FITTING AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7X-9733 | [1] | FITTING | |
| 6. | 250-1456 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 4J-0520 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 138-7796 | [1] | ELBOW | |
| 7. | 031-4392 | [2] | SEAL-O-RING | |
| 8. | 148-8322 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 9. | 148-8347 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 10. | 148-8391 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-8987 | [1] | ELBOW | |
| 11. | 150-3065 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 12. | 153-6244 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-5389 | [1] | ELBOW | |
| 13. | 164-5567 | [5] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 14. | 4J-0520 | [3] | SEAL-O-RING | |
| 15. | 5P-7972 | [12] | BOLT-12 POINT HEAD(7/16-14X1.75-IN) | |
| 16. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-5360 | [12] | WASHER(12X22.5X2.5-MM THK) | |
| 18. | 8T-8917 | [8] | BOLT(1/2-13X1.25-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
