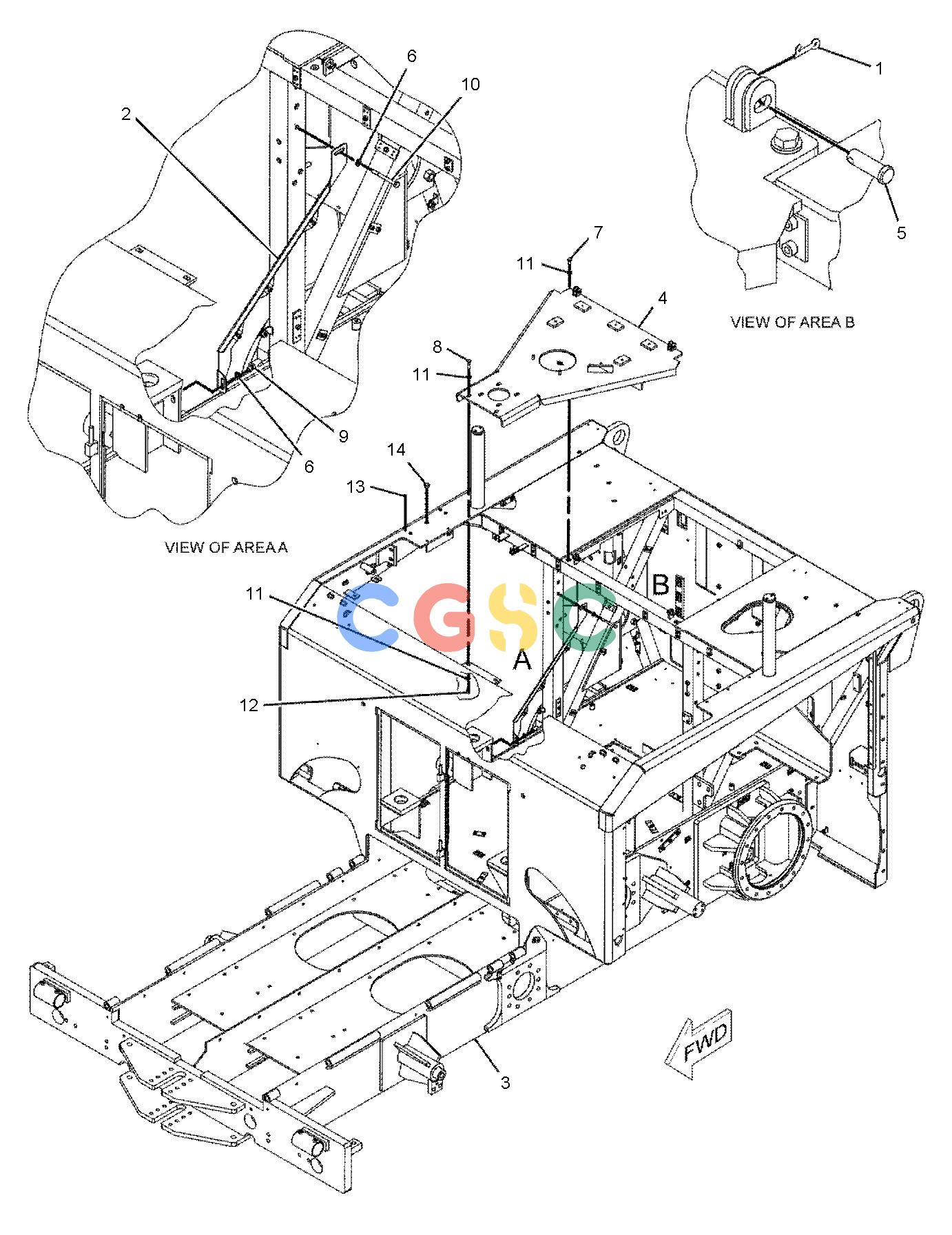

卡特零件查询（AP-655C） 244-8704: FRAME GP-MAIN
广数供应链运营团队, 16 02月, 2025，浏览：
607 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-4617 | [2] | PIN-COTTER | |
| 2. | 224-1395 | [1] | PLATE AS | |
| 3. | 257-4340 | [1] | FRAME AS-MAIN | |
| 4. | 245-1409 | [1] | PLATE AS | |
| 5. | 8B-1419 | [2] | PIN-CLEVIS | |
| 6. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 8. | 8T-4184M | [2] | BOLT(M12X1.75X45-MM) | |
| 9. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 10. | 8T-4198M | [1] | BOLT(M10X1.5X100-MM) | |
| 11. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 13. | 9D-3737 | [4] | PLUG-BUTTON | |
| 14. | 4S-6336 | [1] | PLUG-BUTTON | |
| | M | | METRIC PART |
