卡特零件查询（AP-655C） 247-1283: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
216 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 116-9509Y | [2] | BEARING GP-AUGER | |
| | 198-8287Y | [3] | EXTENSION GP-AUGER(12-IN, RH) | |
| | 199-4206Y | [3] | EXTENSION GP-AUGER(12-IN, LH) | |
| | 231-2035Y | [1] | EXTENSION GP-MAIN FRAME | |
| | 231-1982Y | [4] | EXTENSION GP-MAIN FRAME(12-IN) | |
| | 245-9082Y | [2] | EXTENSION GP-SCREED(ELECTRIC HEAT, W/VIB, 28-IN) | |
| | 231-1956Y | [2] | SUPPORT GP-FRAME | |
| | | | |
| | 9U-3672 | [2] | PLUG AS | |
| | 255-5011 | [2] | RELAY AS(24-VOLT)(EXTENDER) | |
| | 3S-2093 | [4] | STRAP-CABLE | |
| | 246-3318 | [1] | TUBE AS | |
| | 8T-5911 | [2] | NUT-WELD(1/2-13-THD) | |
| | 306-7455 | [2] | WIRE AS | |
| | 8I-0922 | [1] | WRENCH | |

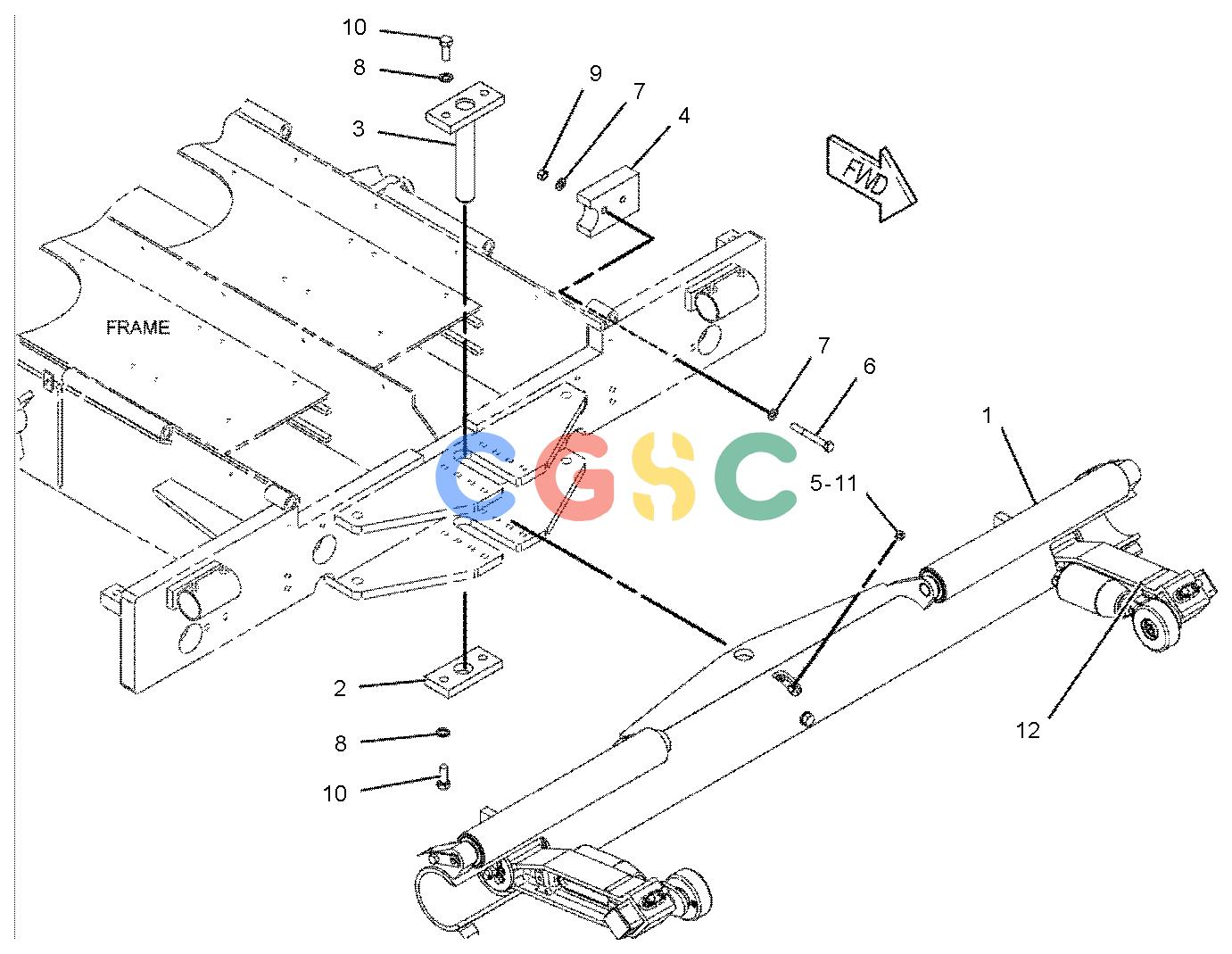

| | Y | | SEPARATE ILLUSTRATION |
