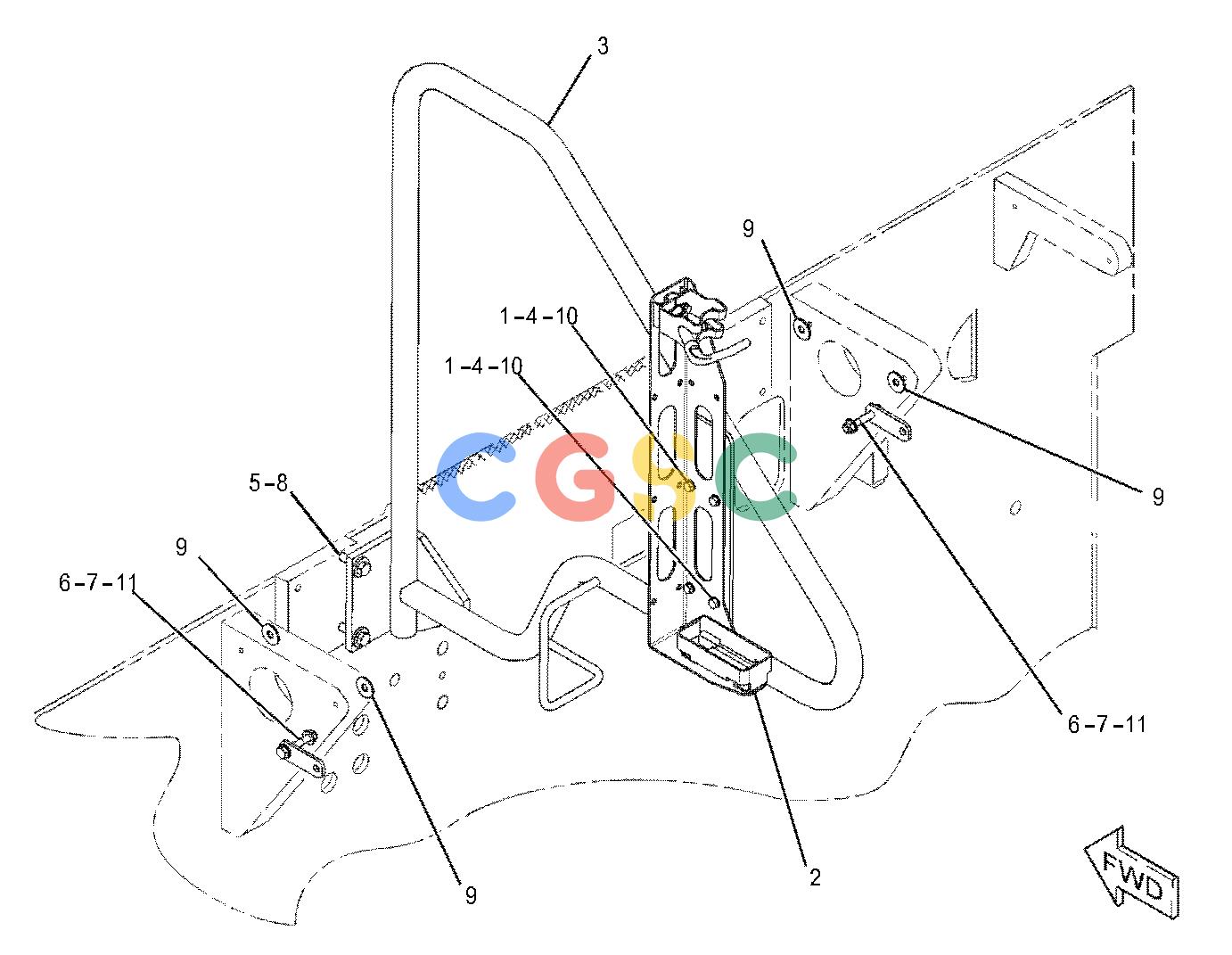

卡特零件查询（AP-655D） 354-0076: HANDRAIL GP
广数供应链运营团队, 16 02月, 2025，浏览：
576 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 2. | 245-0772Y | [1] | BRACKET GP-MOUNTING(RIFLE) | |
| 3. | 354-0077 | [1] | HANDRAIL AS(LH)(RIFLE) | |
| | 277-8909 | [1] | HANDRAIL AS(LH) | |
| 4. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 5. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 6. | 6V-7744M | [2] | LOCKNUT(M10X1.5-THD) | |
| 7. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 9. | 8T-4222 | [4] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 10. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
