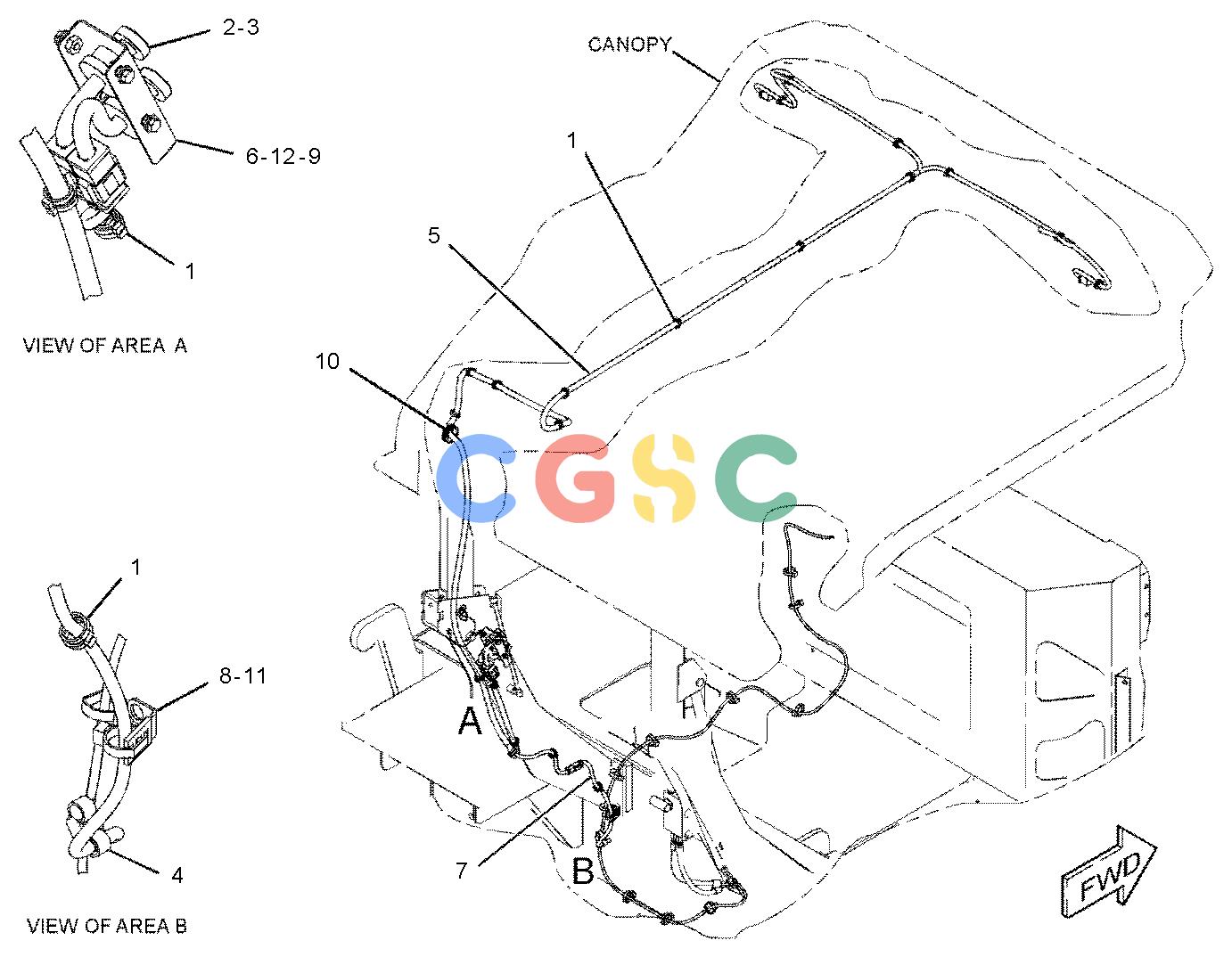

卡特零件查询（AP-655D） 372-0710: WIRING GP-WINDOW WIPER
广数供应链运营团队, 16 02月, 2025，浏览：
508 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [40] | STRAP-CABLE | |
| 2. | 110-7885 | [2] | KNOB AS-WIPER SWITCH | |
| | | | (EACH INCLUDES) |
| | 014-0816 | [1] | SETSCREW(8-32X0.5-IN) | |
| 3. | 112-6174 | [2] | SWITCH GP-ROTARY(WIPER, WASHER) | |
| | | | (EACH INCLUDES) |
| | 2H-3920 | [1] | LOCKWASHER | |
| | 6V-8369 | [1] | NUT(7/16-28-THD) | |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 4. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 5. | 363-3958 | [1] | HARNESS AS-WINDOW WIPER(CANOPY) | |
| | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2265 | [2] | KIT-CONNECTING PLUG(8-PIN) | |
| | 155-2274 | [2] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [10] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [18] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 6. | 363-3960 | [1] | CHANNEL AS | |
| 7. | 372-0713 | [1] | HARNESS AS-WINDOW WIPER(JUMPER) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 180-9340 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 2L-8075 | [1] | TERMINAL-RING(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 2L-8081 | [1] | TERMINAL-RING(14-GA TO 16-GA, 1/2-IN SCREW) | |
| 8. | 4P-7429 | [1] | CLIP(LADDER) | |
| 9. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 10. | 6P-0699 | [1] | GROMMET | |
| 11. | 7K-1181 | [11] | STRAP-CABLE | |
| 12. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
