卡特零件查询（AP-655D） 295-3078: LINES GP-EXTENDER
广数供应链运营团队, 16 02月, 2025，浏览：
483 次

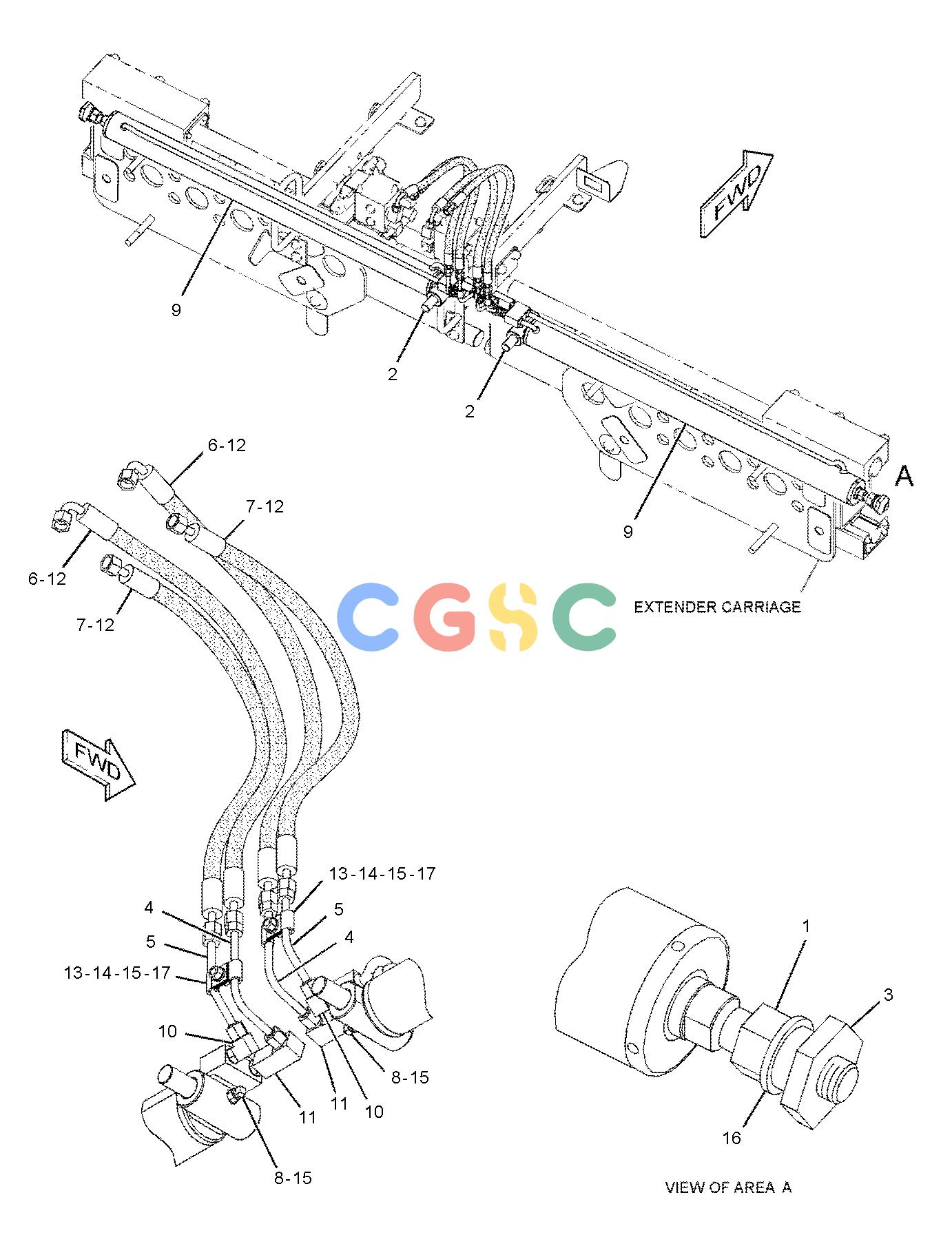

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7D-8508 | [2] | NUT-FULL(7/8-14-THD) | |
| 2. | 165-4732 | [2] | PIN | |
| 3. | 165-4744 | [2] | ADJUSTER | |
| 4. | 197-9821 | [2] | TUBE AS | |
| 5. | 197-9822 | [2] | TUBE AS | |
| 6. | 197-9823I | [2] | HOSE AS | |
| 7. | 197-9824I | [2] | HOSE AS | |
| 8. | 213-9261 | [2] | SETSCREW | |
| 9. | 299-9601 | [2] | CYLINDER GP-HYDRAULIC | |
| | | | (EACH INCLUDES) |
| | 5D-1986 | [1] | LOCKNUT(7/8-14-THD) | |
| | 312-3645 | [1] | KIT-SEAL | |
| | | | (INCLUDES WEAR RINGS, O-RING SEALS, BACKUP RING, SEALS & WIPER) |
| 10. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 11. | 150-3036 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-1905 | [1] | ELBOW | |
| 12. | 4J-5477 | [4] | SEAL-O-RING | |
| 13. | 5M-3062 | [2] | BOLT(3/8-16X0.75-IN) | |
| 14. | 5P-9297 | [4] | CLIP(LOOP) | |
| 15. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 16. | 8C-6913 | [2] | WASHER-HARD(24X41.5X4-MM THK) | |
| 17. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
