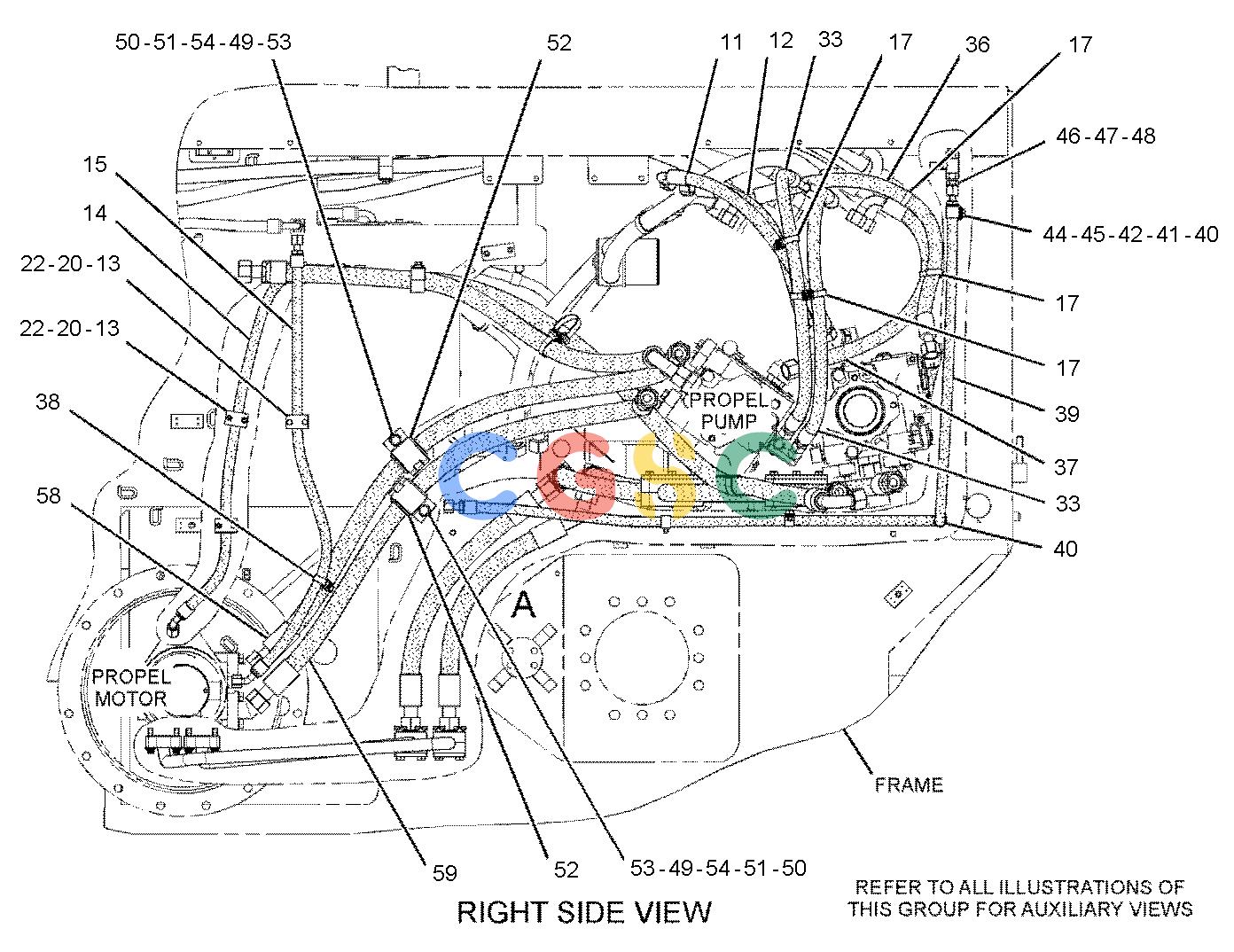

卡特零件查询（AP-655D） 270-7213: LINES GP-PROPEL
广数供应链运营团队, 16 02月, 2025，浏览：
508 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7908 | [6] | CLAMP | |
| 2. | 7R-9118I | [1] | HOSE AS | |
| 3. | 7V-5628 | [3] | PLATE(TOP) | |
| 4. | 111-2635I | [1] | HOSE AS | |
| 5. | 115-0495I | [1] | HOSE AS | |
| 6. | 124-6809 | [1] | VALVE-BALL | |
| 7. | 177-2215 | [4] | STRAP-DUAL CLAMP | |
| 8. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 9. | 192-7956I | [1] | HOSE AS | |
| 10. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 11. | 203-3842I | [1] | HOSE AS | |
| 12. | 204-2281 | [2] | STRAP-CABLE | |
| 13. | 205-9342 | [4] | CLAMP | |
| 14. | 205-9343 | [2] | COVER | |
| 15. | 206-7013 | [4] | FASTENER | |
| 16. | 207-0603 | [2] | PLATE-COVER | |
| 17. | 207-4499 | [1] | PLATE-COVER | |
| 18. | 216-7167 | [4] | CLAMP-HALF | |
| 19. | 228-1695I | [1] | HOSE AS | |
| 20. | 228-4710 | [2] | SPACER(14X30X20-MM THK) | |
| 21. | 274-4643I | [1] | HOSE AS | |
| 22. | 275-2447 | [1] | TUBE | |
| 23. | 275-2448 | [1] | TUBE | |
| 24. | 277-0332I | [1] | HOSE AS | |
| 25. | 277-0333I | [1] | HOSE AS | |
| 26. | 277-0334I | [1] | HOSE AS | |
| 27. | 277-0335I | [1] | HOSE AS | |
| 28. | 277-0336I | [1] | HOSE AS | |
| 29. | 277-0337I | [1] | HOSE AS | |
| 30. | 277-0338I | [1] | HOSE AS | |
| 31. | 277-0339I | [2] | HOSE AS | |
| 32. | 284-1603I | [1] | HOSE AS | |
| 33. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 34. | 150-4043 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9873 | [1] | CONNECTOR | |
| 35. | 164-5577 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8984 | [1] | ELBOW | |
| 36. | 1P-3703 | [4] | SEAL-RECTANGULAR | |
| 37. | 1P-5766 | [8] | FLANGE-HALF | |
| 38. | 1S-0994 | [4] | CLIP(LOOP) | |
| 39. | 206-6415 | [2] | CLAMP-HALF | |
| 40. | 4J-0520 | [2] | SEAL-O-RING | |
| 41. | 5K-9090 | [2] | SEAL-O-RING | |
| 42. | 5P-7468 | [2] | CLIP(SLOT) | |
| 43. | 5P-7469 | [2] | CLIP(TAB) | |
| 44. | 5P-8444 | [2] | GROMMET(37-MM ID) | |
| 45. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 46. | 7C-4354 | [1] | CLIP | |
| 47. | 7D-7233 | [1] | CLIP(LOOP) | |
| 48. | 8C-6877 | [24] | BOLT(7/16-14X1.75-IN) | |
| 49. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 50. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 51. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 52. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 53. | 8T-4184M | [2] | BOLT(M12X1.75X45-MM) | |
| 54. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 55. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 56. | 8T-5005M | [6] | BOLT(M10X1.5X70-MM) | |
| 57. | 8T-5360 | [24] | WASHER(12X22.5X2.5-MM THK) | |
| 58. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| 59. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
