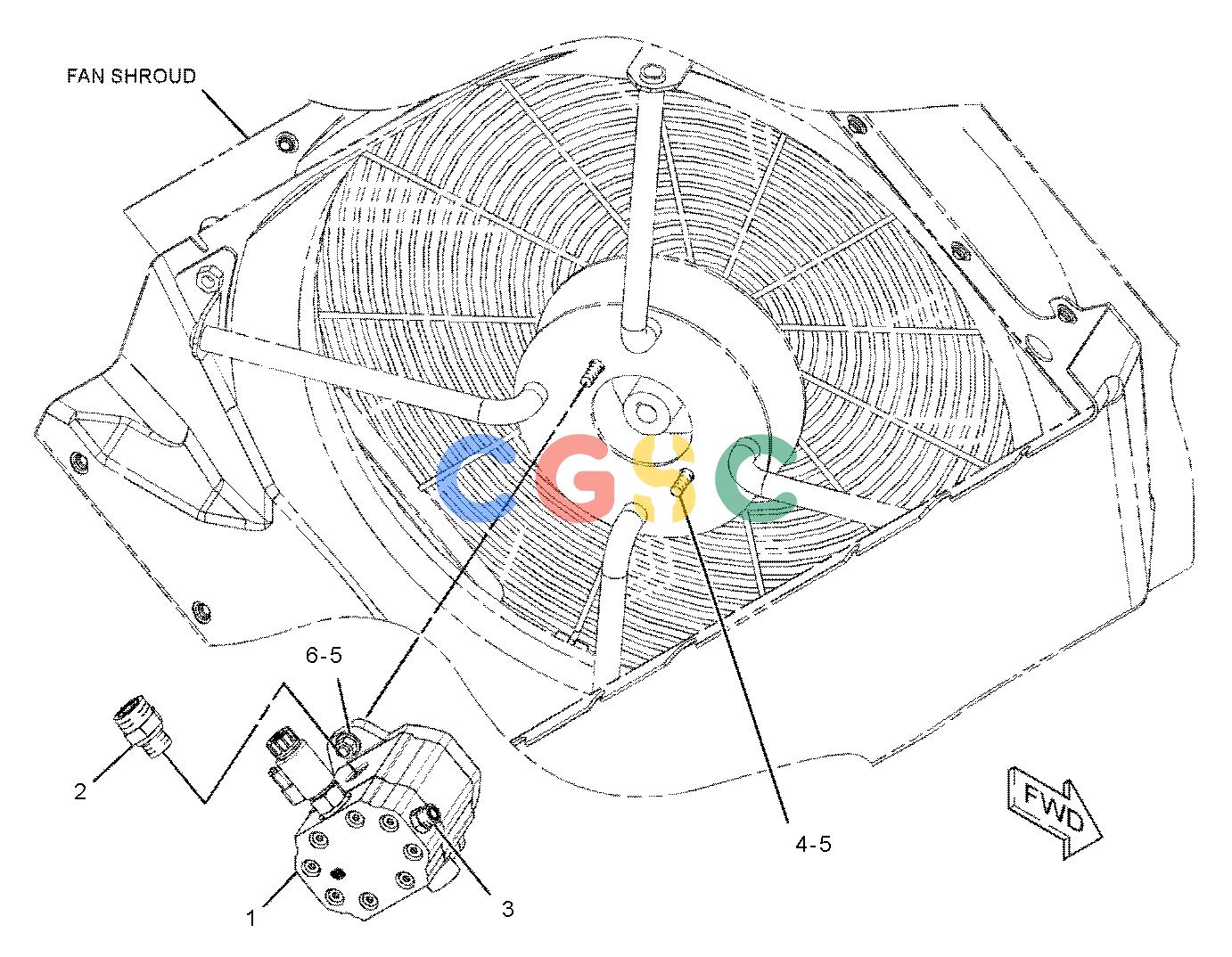

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 291-2606 | [1] | MOTOR GP-GEAR | |
| 2. | 148-8317 | [2] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 3D-2824 | [1] | SEAL-O-RING | ||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-8714 | [1] | CONNECTOR | ||
| 3. | 150-4043 | [1] | CONNECTOR AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-9873 | [1] | CONNECTOR | ||
| 4. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 5. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| M | METRIC PART | |||
