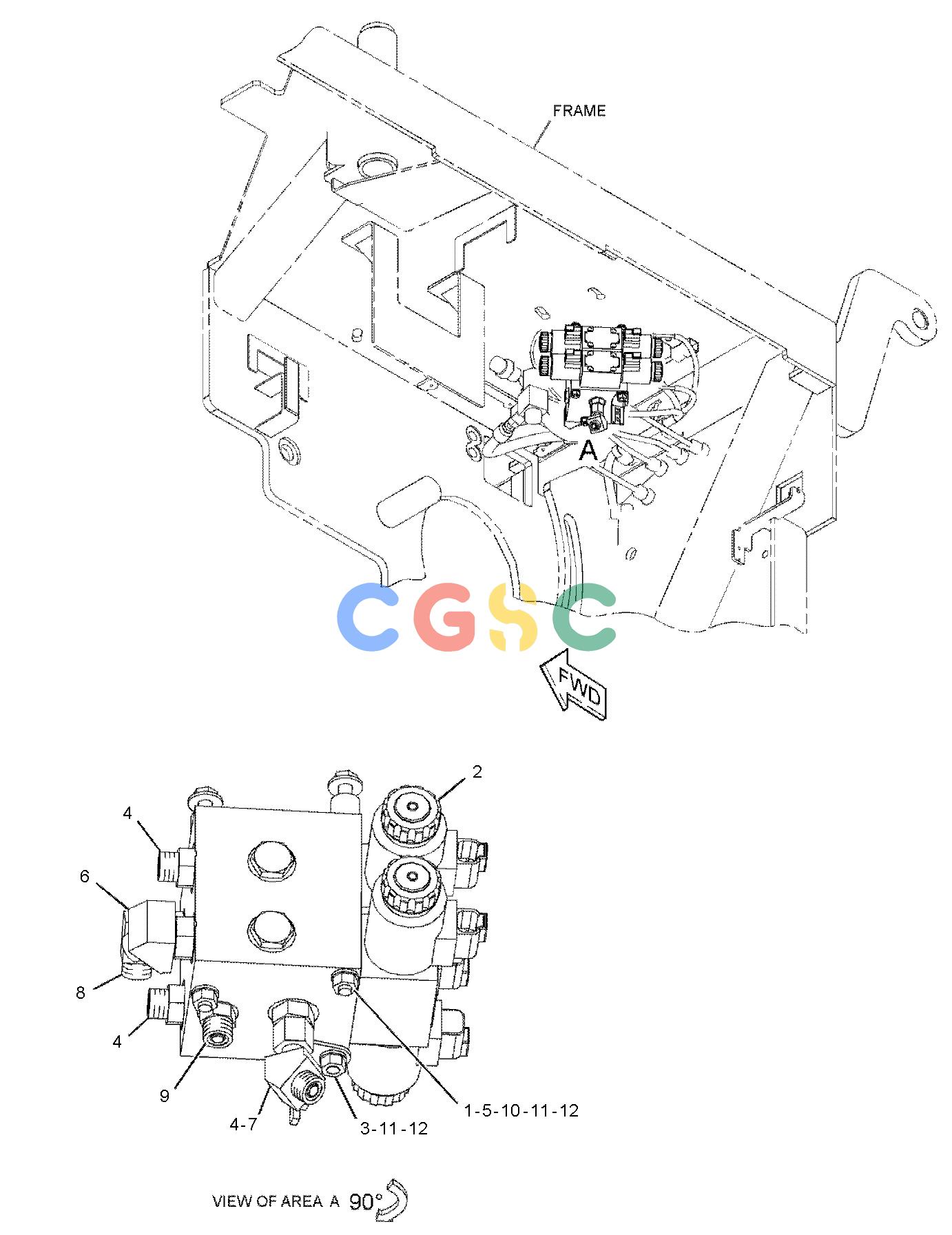

卡特零件查询（AP-655D） 343-7765: VALVE & MOUNTING GP
广数供应链运营团队, 16 02月, 2025，浏览：
536 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 226-9571 | [3] | SPACER(12.52X17.14X15-MM THK) | |
| 2. | 332-1453Y | [1] | VALVE GP-SOLENOID(MAIN FRAME EXTENSION) | |
| 3. | 132-5789 | [1] | CLIP(LADDER) | |
| 4. | 148-8318 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 5. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 6. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 7. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 8. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 9. | 183-3399 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 10. | 5C-7261CM | [3] | NUT(M8X1.25-THD) | |
| 11. | 5P-4116C | [3] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 12. | 8C-4984CM | [3] | BOLT(M8X1.25X150-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
