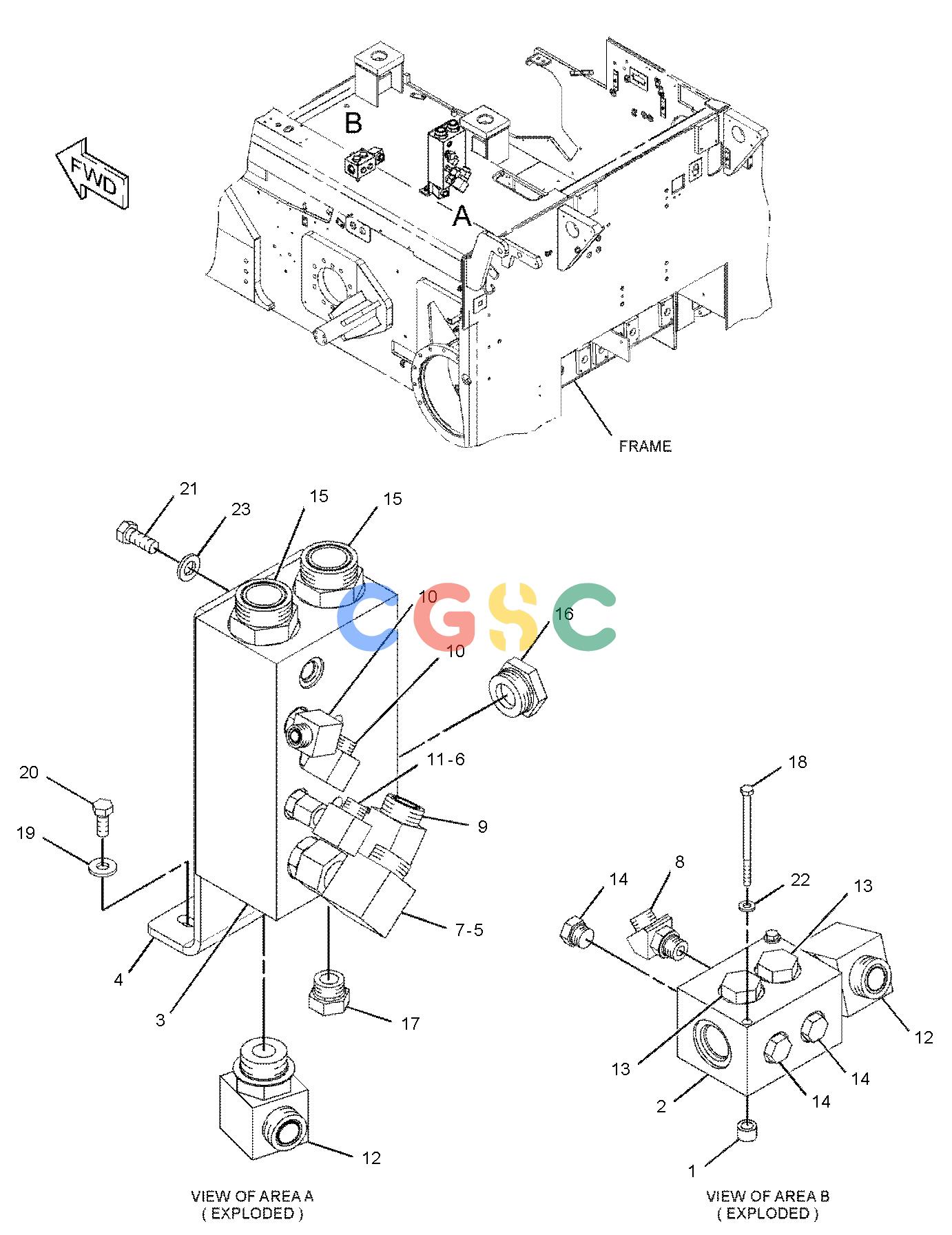

卡特零件查询（AP-655D） 270-7220: VALVE & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
181 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5K-2232 | [2] | SPACER(11-MM THK) | |
| 2. | 107-0003 | [1] | MANIFOLD | |
| 3. | 339-3532 | [1] | VALVE GP-COOLER BYPASS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| 4. | 272-1256 | [1] | PLATE | |
| 5. | 148-8317 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8714 | [1] | CONNECTOR | |
| 6. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 7. | 148-8352 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9854 | [1] | ELBOW(SWIVEL) | |
| 8. | 148-8354 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 9. | 148-8362 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-6684 | [1] | ELBOW | |
| 10. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 11. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 12. | 148-8391 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-8987 | [1] | ELBOW | |
| 13. | | [2] | PLUG AS |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 14. | 148-8411 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 15. | 156-4283 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 16. | 164-5555 | [1] | ADAPTER AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 4S-6679 | [1] | ADAPTER | |
| 17. | 241-6185 | [1] | PLUG AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5P-9436 | [1] | PLUG | |
| 18. | 7X-0465M | [2] | BOLT(M6X1X100-MM) | |
| 19. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 20. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 21. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 22. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 23. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
