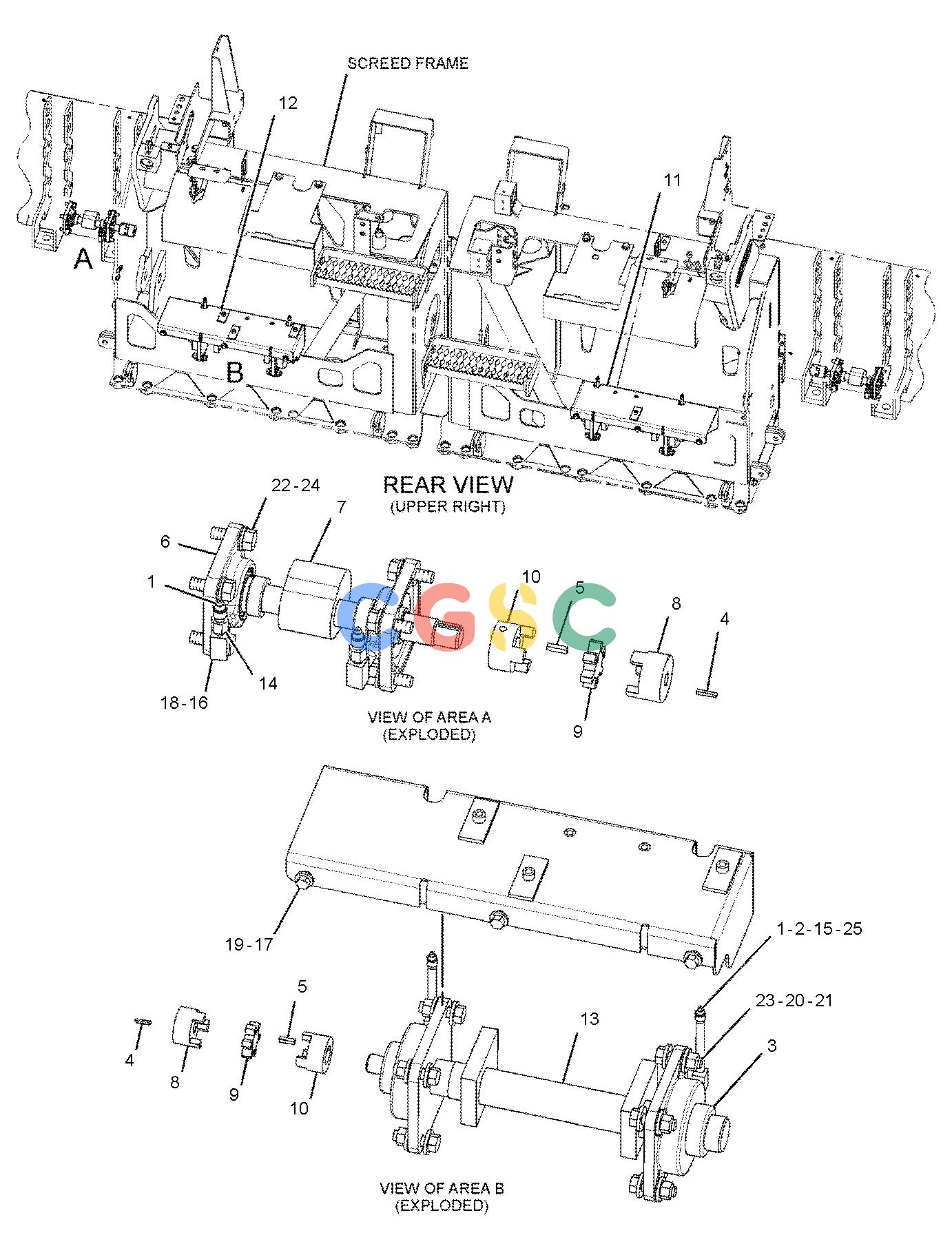

卡特零件查询（AP-655D） 295-3082: VIBRATORY GP
广数供应链运营团队, 16 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-9982C | [8] | FITTING-GREASE | |
| 2. | 8I-0720 | [4] | CONNECTOR | |
| 3. | 102-2695 | [4] | BEARING | |
| 4. | 102-2739 | [4] | KEY-SQUARE | |
| 5. | 105-1533 | [4] | KEY-SQUARE | |
| 6. | 258-7574 | [4] | BEARING AS | |
| 7. | 305-3316 | [2] | SHAFT AS | |
| 8. | 310-6046 | [4] | COUPLER | |
| 9. | 310-6051 | [4] | SPIDER | |
| 10. | 310-6052 | [4] | COUPLER | |
| 11. | 322-3472C | [1] | COVER AS(RH) | |
| 12. | 322-3474C | [1] | COVER AS(LH) | |
| 13. | 386-7458 | [2] | SHAFT AS | |
| 14. | 002-0639 | [4] | ADAPTER-PIPE | |
| 15. | 3B-6552C | [4] | ELBOW-PIPE | |
| 16. | 3B-7733 | [4] | FITTING | |
| 17. | 4L-6454 | [10] | BOLT(3/8-16X1-IN) | |
| 18. | 4M-8973 | [4] | ELBOW | |
| 19. | 5P-1075 | [10] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 20. | 5P-1076 | [32] | WASHER-HARD(13.5X30X4-MM THK) | |
| 21. | 6V-8188 | [16] | NUT(1/2-13-THD) | |
| 22. | 8T-5360 | [16] | WASHER(12X22.5X2.5-MM THK) | |
| 23. | 8T-8919 | [16] | BOLT(1/2-13X1.75-IN) | |
| 24. | 8T-9382 | [16] | BOLT(7/16-14X1.25-IN) | |
| 25. | 9S-1812C | [4] | FITTING(NIPPLE-PIPE) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
