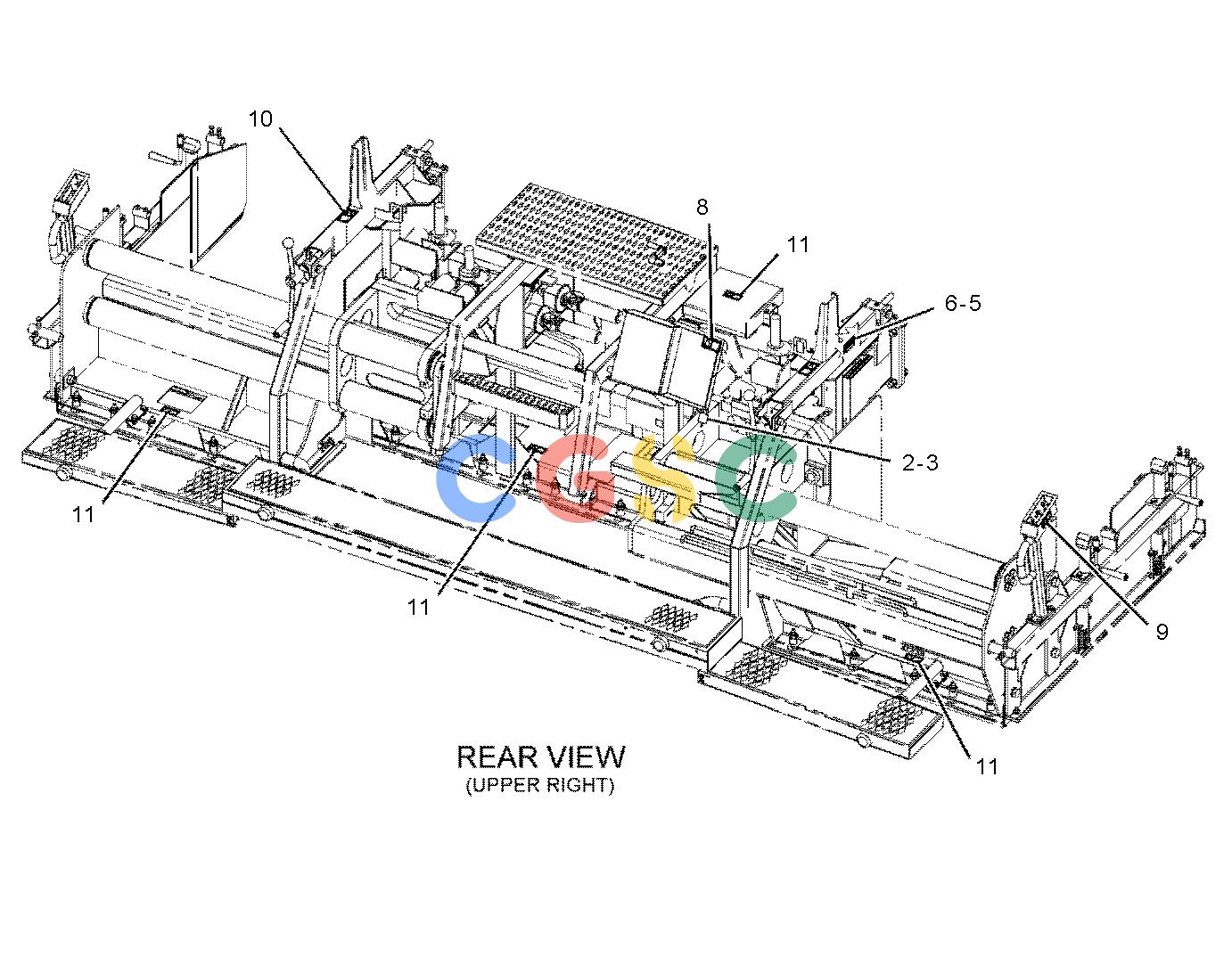

卡特零件查询（AP-655D） 276-4609: PLATE & FILM GP
广数供应链运营团队, 16 02月, 2025，浏览：
815 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 5P-8500 | [3] | KEY | |
| 3. | 246-2641 | [3] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 4. | 102-2714 | [1] | HANDLE | |
| 5. | 168-8389 | [4] | TACK(METAL) | |
| 6. | 187-8168 | [1] | PLATE-SERIAL NUMBER | |
| 7. | 253-8868 | [1] | PIN-SPRING | |
| 8. | 264-2261 | [3] | FILM-WARNING(DO NOT OPERATE, READ OMM) | |
| 9. | 269-0193 | [2] | FILM-WARNING(CRUSH HAZARD, STAY BACK) | |
| 10. | 286-7220 | [2] | FILM-WARNING(SEAT BELT)(SEAT BELT) | |
| 11. | 290-3399 | [5] | FILM-DANGER(SHOCK, ELECTROCUTION HAZARD)(ELECTROCUTION HAZARD) | |
| 12. | 292-0471 | [2] | FILM-INSTRUCTION(SCREED, READ OMM) | |
| 13. | | [1] | FILM-IDENTIFICATION(EXTENDAMAT) |
| 14. | | [1] | FILM-IDENTIFICATION(CAT AS3251C) |
| 15. | 5S-7349 | [1] | BOLT(1/4-20X0.5-IN) | |
| 16. | 8I-0280 | [1] | KEEPER | |
