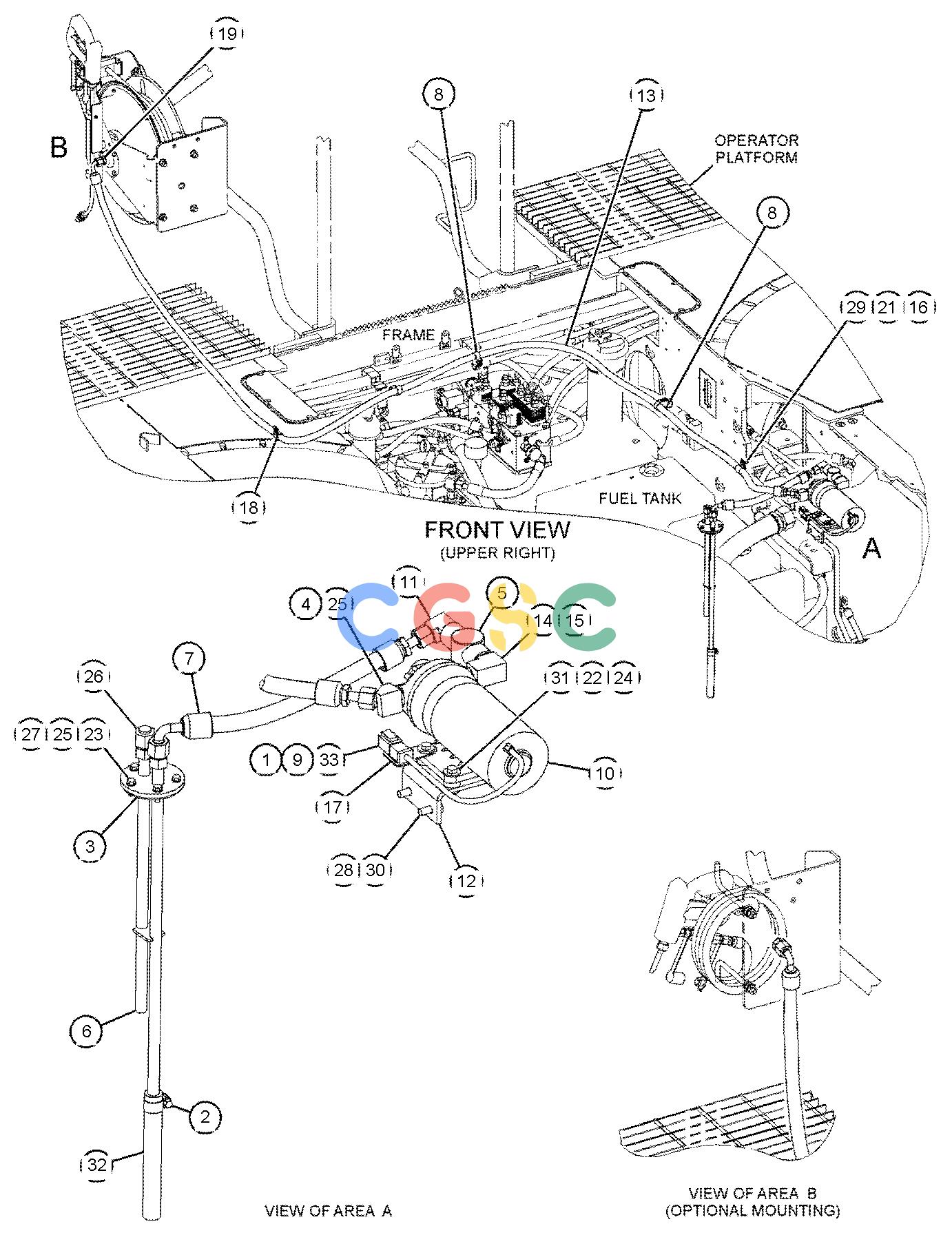

卡特零件查询（AP-655D） 270-6875: WASHDOWN GP
广数供应链运营团队, 16 02月, 2025，浏览：
394 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 5P-4961 | [1] | CLAMP-HOSE | |
| 3. | 9R-7240 | [1] | GASKET | |
| 4. | 103-7268 | [1] | ADAPTER | |
| 5. | 140-3562 | [1] | STRAINER(DIESEL FUEL) | |
| 6. | 144-5339 | [1] | TUBE AS-FUEL | |
| 7. | 192-1298I | [1] | HOSE AS | |
| 8. | 177-2215C | [3] | STRAP-DUAL CLAMP | |
| 9. | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 10. | 266-4529Y | [1] | PUMP & MOTOR GP-WASHDOWN(DIESEL FUEL) | |
| 11. | 268-1543 | [1] | ELBOW AS | |
| | 2T-1925 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 12. | 287-7105 | [1] | PLATE | |
| 13. | 295-8658CI | [1] | HOSE AS | |
| 14. | 003-2143 | [1] | ELBOW | |
| 15. | 004-6683 | [1] | FITTING | |
| 16. | 095-0912C | [1] | CLIP | |
| 17. | 130-5300 | [1] | CLIP | |
| 18. | 134-3988C | [1] | CLIP(LOOP) | |
| 19. | 321-8612C | [1] | PLUG AS | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 21. | 5C-9553CM | [1] | BOLT(M6X1X16-MM) | |
| 22. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 23. | 7I-2273M | [5] | BOLT(M5X0.8X16-MM) | |
| 24. | 6V-7743M | [4] | LOCKNUT(M6X1-THD) | |
| 25. | 6V-8397 | [3] | SEAL-O-RING | |
| 26. | 6V-9829C | [1] | CAP | |
| 27. | 8T-0328 | [5] | WASHER-HARD(5.5X10X1-MM THK) | |
| 28. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 29. | 8T-4205C | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 30. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-4971M | [4] | BOLT(M6X1X30-MM) | |
| 32. | 5P-1518E | | HOSE(16-CM) | |
| 33. | 9X-1813E | | SLEEVE(28-CM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
