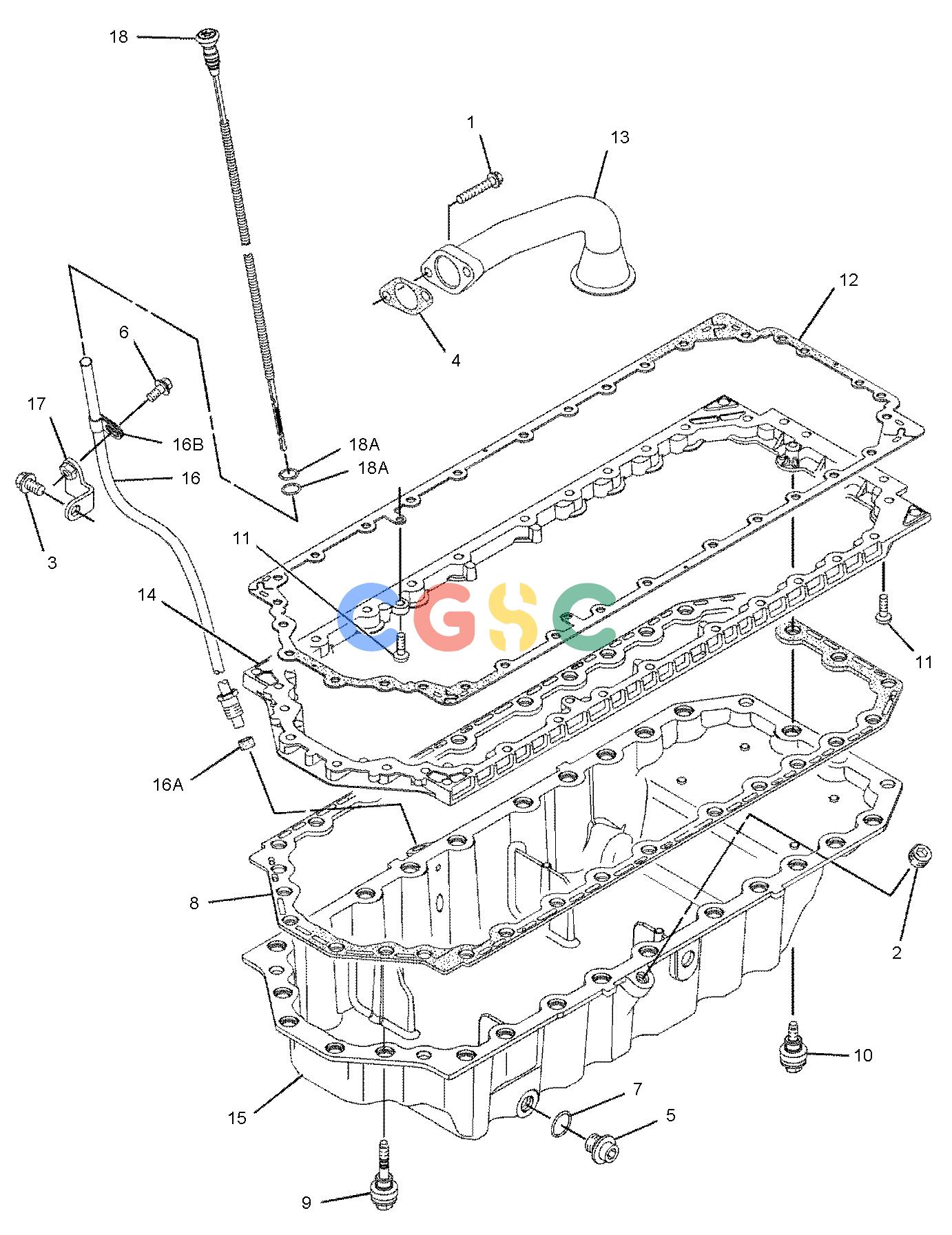

卡特零件查询（AP-655D） 300-4439: PAN GP-OIL
广数供应链运营团队, 16 02月, 2025，浏览：
689 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0260M | [1] | BOLT(M8X1.25X25-MM) | |
| 2. | 6I-0289 | [1] | PLUG | |
| 3. | 6I-4200M | [1] | BOLT(M10X1.5X16-MM) | |
| 4. | 6I-4681 | [1] | GASKET | |
| 5. | 7C-0351 | [1] | PLUG-DRAIN(ENGINE OIL) | |
| 6. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 7. | 275-9883 | [1] | SEAL | |
| 8. | 275-9884 | [1] | GASKET | |
| 9. | 275-9888 | [28] | BOLT-SPECIAL | |
| 10. | 275-9889 | [2] | BOLT-SPECIAL | |
| 11. | 276-0142 | [6] | BOLT-SPECIAL(TORX) | |
| 12. | 280-1383 | [1] | GASKET | |
| 13. | 283-4302 | [1] | TUBE-OIL SUCTION | |
| 14. | 286-7847 | [1] | ADAPTER GP-OIL PAN DRAIN | |
| 15. | 289-9588 | [1] | PAN-OIL | |
| 16. | 300-4440 | [1] | TUBE AS-OIL GAUGE | |
| 16A. | 6I-1497 | [1] | SEAL | |
| 16B. | 187-0555 | [1] | CLIP | |
| 17. | 300-4443 | [1] | BRACKET | |
| 18. | 300-4492 | [1] | GAUGE AS-OIL LEVEL (DIPSTICK)(ENGINE) | |
| 18A. | 275-9891 | [2] | SEAL-O-RING | |
| | M | | METRIC PART |
