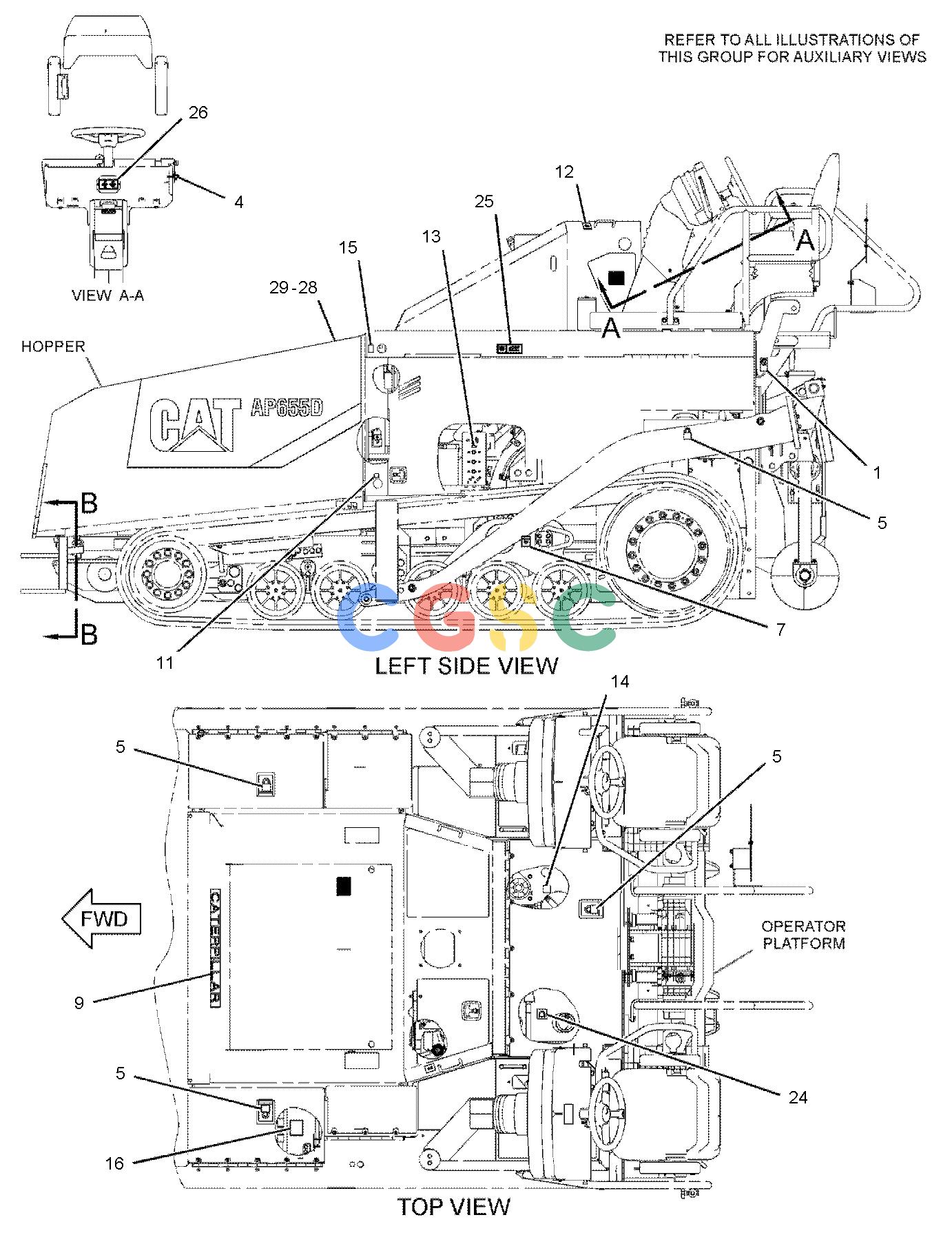

卡特零件查询（AP-655D） 263-6009: PLATE & FILM GP
广数供应链运营团队, 16 02月, 2025，浏览：
490 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-2807 | [2] | FILM-IDENTIFICATION(LIFT EYE LOCATION) | |
| 3. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 4. | 5P-8500 | [2] | KEY | |
| 5. | 246-2641 | [4] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 6. | 7X-3229 | [2] | FILM-IDENTIFICATION(LIFT EYE, TIE-DOWN LOCATION) | |
| 7. | 7X-7644 | [4] | FILM-IDENTIFICATION(TIE-DOWN) | |
| 9. | 9X-2446 | [1] | FILM-IDENTIFICATION(CATERPILLAR) | |
| 10. | 123-4082 | [1] | FILM-INFORMATION(HEIGHT SCALE) | |
| 11. | | [2] | FILM-IDENTIFICATION(TOW POINT CYLINDER) |
| 12. | 134-7258 | [1] | FILM-INFORMATION(EXTENDED LIFE COOLANT) | |
| 13. | 146-6747 | [1] | FILM-INFORMATION(24-VOLT) | |
| 14. | 158-7864 | [1] | FILM-IDENTIFICATION(HYDRAULIC OIL) | |
| 15. | 214-7915 | [1] | FILM-INSTRUCTION(ENGINE SHUTOFF) | |
| 16. | | [1] | FILM-INSTRUCTION(ALTERNATOR BELT MOUNTING) |
| 23. | 239-6986 | [1] | PLATE-SERIAL NUMBER(MACHINE) | |
| 24. | 240-9665 | [1] | FILM-IDENTIFICATION(DIESEL FUEL) | |
| 25. | 253-0861 | [2] | FILM-INFORMATION(CAT POWER, ACERT TECHNOLOGY) | |
| 26. | | [1] | FILM-IDENTIFICATION(PROPEL OVERRIDE) |
| 27. | 279-6497 | [2] | FILM-INSTRUCTION(GREASE, READ OMM) | |
| 28. | | [1] | FILM-IDENTIFICATION(CAT AP655D, LH) |
| 29. | | [1] | FILM-IDENTIFICATION(CAT AP655D, RH) |
| | | | |
| | 3S-2093F | [6] | STRAP-CABLE | |
| | F | | NOT SHOWN |
