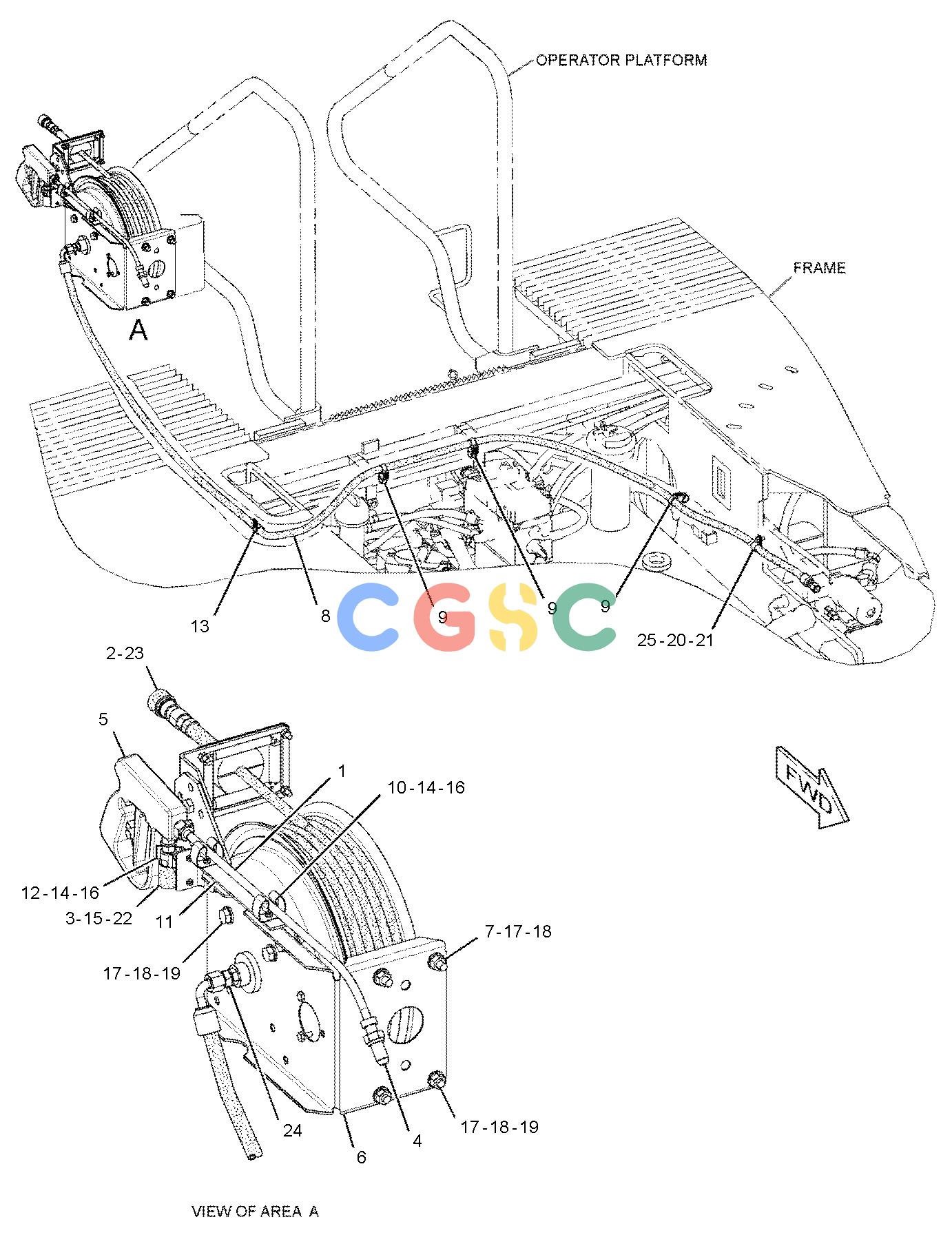

卡特零件查询（AP-655D） 278-0357: REEL GP-WASHDOWN HOSE
广数供应链运营团队, 16 02月, 2025，浏览：
435 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-5370 | [1] | EXTENSION-CURVE | |
| 2. | 5R-5560 | [1] | COUPLING AS | |
| 3. | 5R-5561 | [1] | FITTING AS | |
| 4. | 6R-4315 | [1] | NOZZLE(SPRAY DOWN) | |
| 5. | 6R-4317 | [1] | GUN-SPRAY | |
| 6. | 087-0889Y | [1] | REEL GP-WASHDOWN HOSE | |
| 7. | 164-5597 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-6868 | [1] | CONNECTOR | |
| 8. | 295-8658I | [1] | HOSE AS | |
| 9. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 10. | 191-3588 | [2] | CLIP | |
| 11. | 206-4110 | [1] | BRACKET | |
| 12. | 206-4530 | [1] | CLIP | |
| 13. | 134-3988 | [1] | CLIP(LOOP) | |
| 14. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 15. | 5P-8998 | [1] | FITTING | |
| 16. | 6V-5210M | [4] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 17. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 19. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 20. | 095-0912 | [1] | CLIP | |
| 21. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 22. | 8C-7992 | [1] | COVER-DUST | |
| 23. | 8C-7993 | [1] | COVER-DUST | |
| 24. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 25. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
