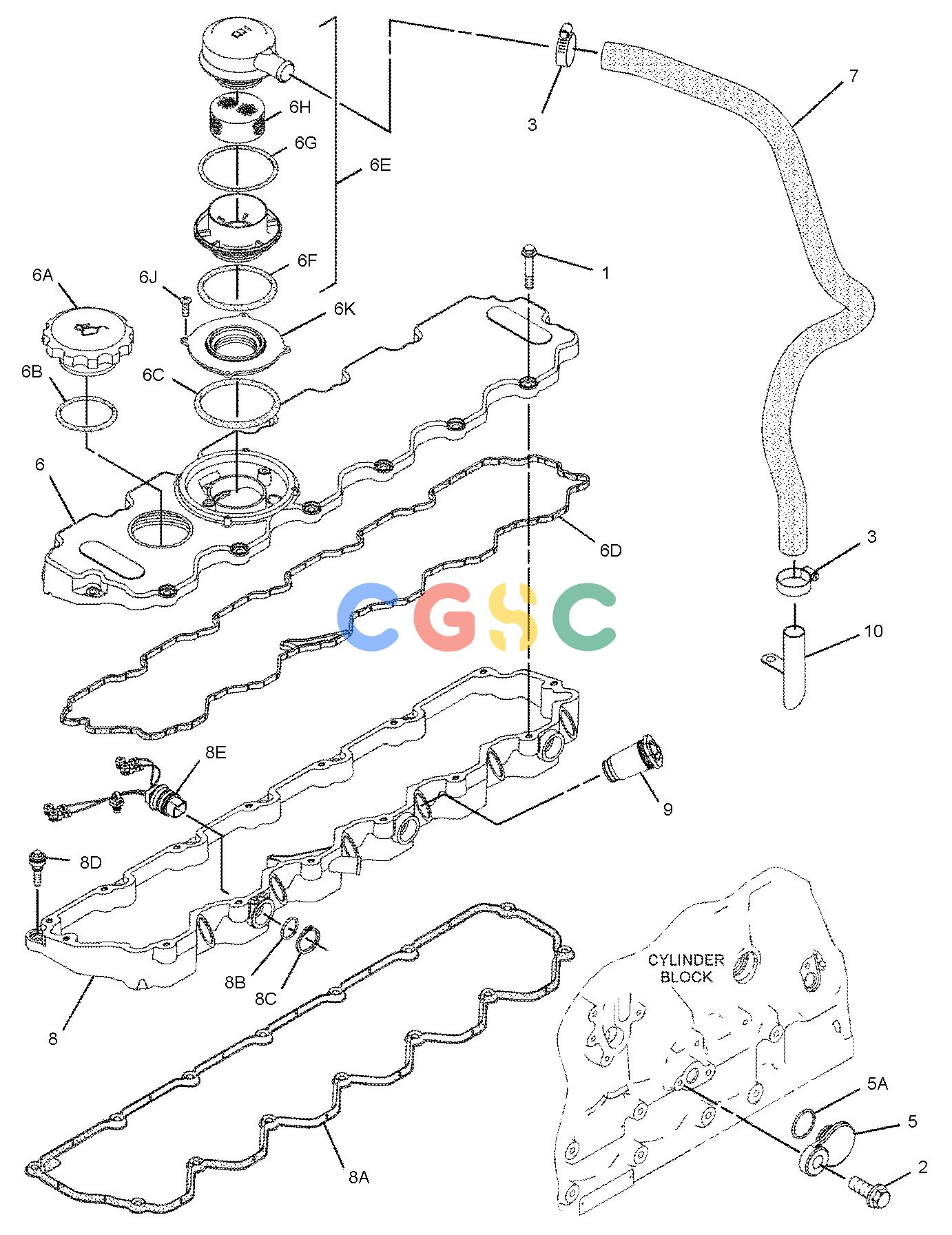

卡特零件查询（AP-655D） 282-2825: COVER GP-VALVE MECHANISM
广数供应链运营团队, 16 02月, 2025，浏览：
487 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 277-5031C | [15] | BOLT-SPECIAL | |
| 2. | 6I-0217M | [1] | BOLT(M8X1.25X20-MM) | |
| 3. | 103-1066 | [2] | CLAMP-HOSE | |
| 5. | 277-5094 | [1] | COVER AS | |
| 5A. | 277-5096 | [1] | SEAL-O-RING | |
| 6. | 300-3929C | [1] | COVER AS-CYLINDER HEAD | |
| 6A. | 136-3608 | [1] | CAP AS(ENGINE OIL FILLER) | |
| 6B. | 124-0506 | [1] | SEAL | |
| 6C. | 277-5030 | [1] | SEAL-O-RING | |
| 6D. | 278-4693 | [1] | GASKET-VALVE COVER | |
| 6E. | 278-4694 | [1] | BREATHER AS(CRANKCASE) | |
| 6F. | 124-0506 | [1] | SEAL | |
| 6G. | 160-0526 | [1] | SEAL-O-RING | |
| 6H. | 185-3159 | [1] | FILTER ELEMENT-BREATHER(CRANKCASE) | |
| 6J. | 295-1042 | [4] | SCREW-TAPPING | |
| 6K. | 300-3907 | [1] | ADAPTER | |
| 7. | 278-4695 | [1] | HOSE | |
| 8. | 300-3965C | [1] | HOUSING AS | |
| 8A. | 277-5063 | [1] | GASKET-COVER(VALVE) | |
| 8B. | 277-5064 | [3] | SEAL-O-RING | |
| 8C. | 277-5065 | [3] | CLIP | |
| 8D. | 277-5066 | [14] | BOLT-SPECIAL(SHOULDER) | |
| 8E. | 285-1975 | [3] | HARNESS AS-WIRING(INJECTOR) | |
| 9. | 277-5067 | [6] | SLEEVE | |
| 10. | 278-5927 | [1] | TUBE-BREATHER | |
| | | | |
| | 5D-1026F | [2] | CLAMP-BAND | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
