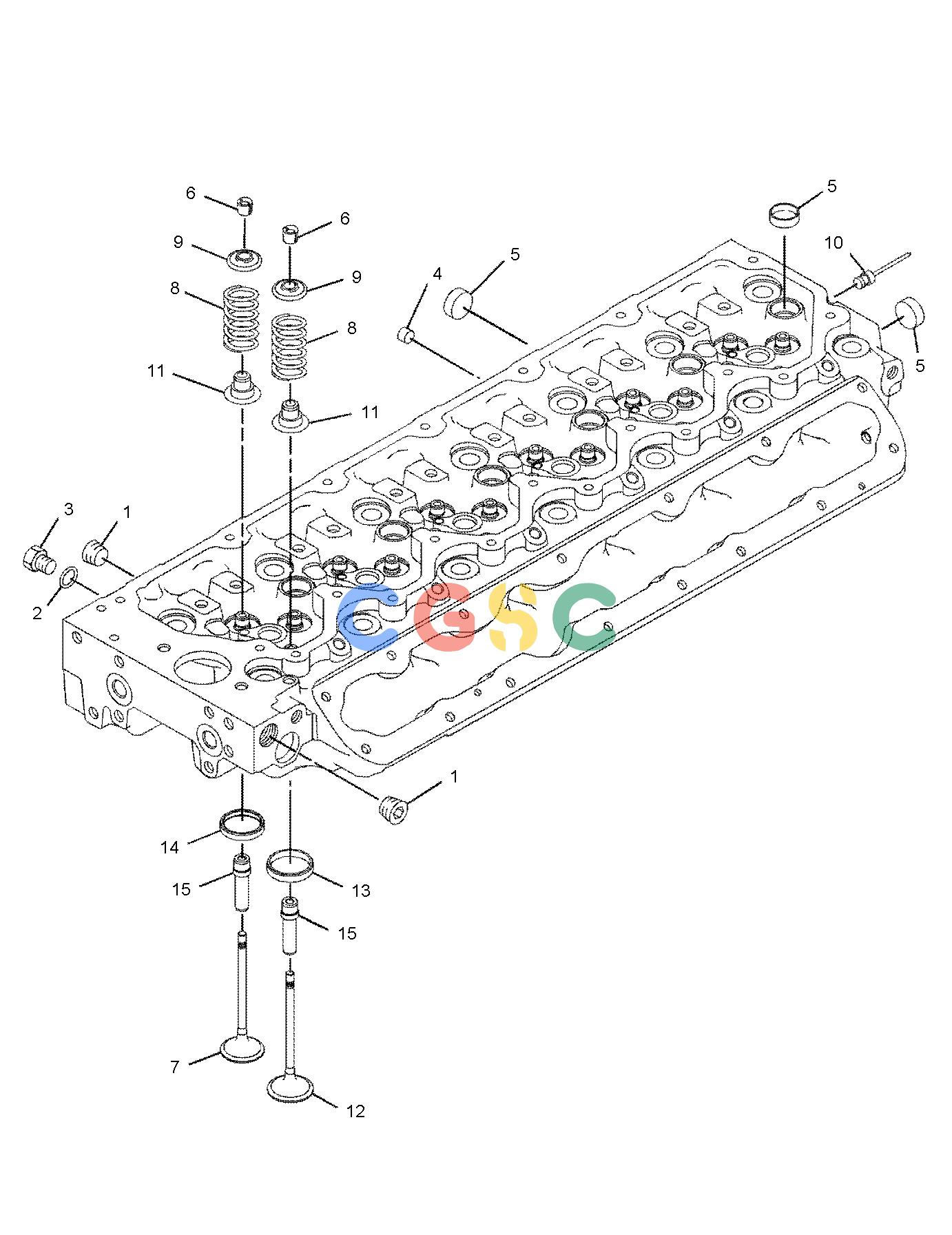

卡特零件查询（AP-655D） 309-6663: CYLINDER HEAD AS
广数供应链运营团队, 16 02月, 2025，浏览：
718 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2B-0858 | [2] | PLUG-PIPE | |
| 2. | 199-9751 | [1] | SEAL-O-RING | |
| 3. | 232-1322 | [1] | PLUG | |
| 4. | 276-8116 | [6] | PLUG-CORE | |
| 5. | 276-8117 | [13] | PLUG-CORE | |
| 6. | 276-8123 | [48] | COTTER-CAP | |
| 7. | 339-9637 | [12] | VALVE-EXHAUST | |
| 8. | 436-0521J | [24] | SPRING-VALVE | |
| 9. | 276-8133 | [24] | CAP-VALVE | |
| 10. | 295-6661 | [1] | PLUG | |
| 11. | 299-5511 | [24] | SEAL-VALVE STEM | |
| 12. | 309-6678 | [12] | VALVE-INLET | |
| 13. | 377-0399 | [12] | INSERT-VALVE SEAT | |
| 14. | 377-0400 | [12] | INSERT-VALVE SEAT | |
| 15. | 380-2073B | [24] | GUIDE-VALVE | |
| | B | | USE AS REQUIRED |
| | J | | SERVICED IN PAIRS |
