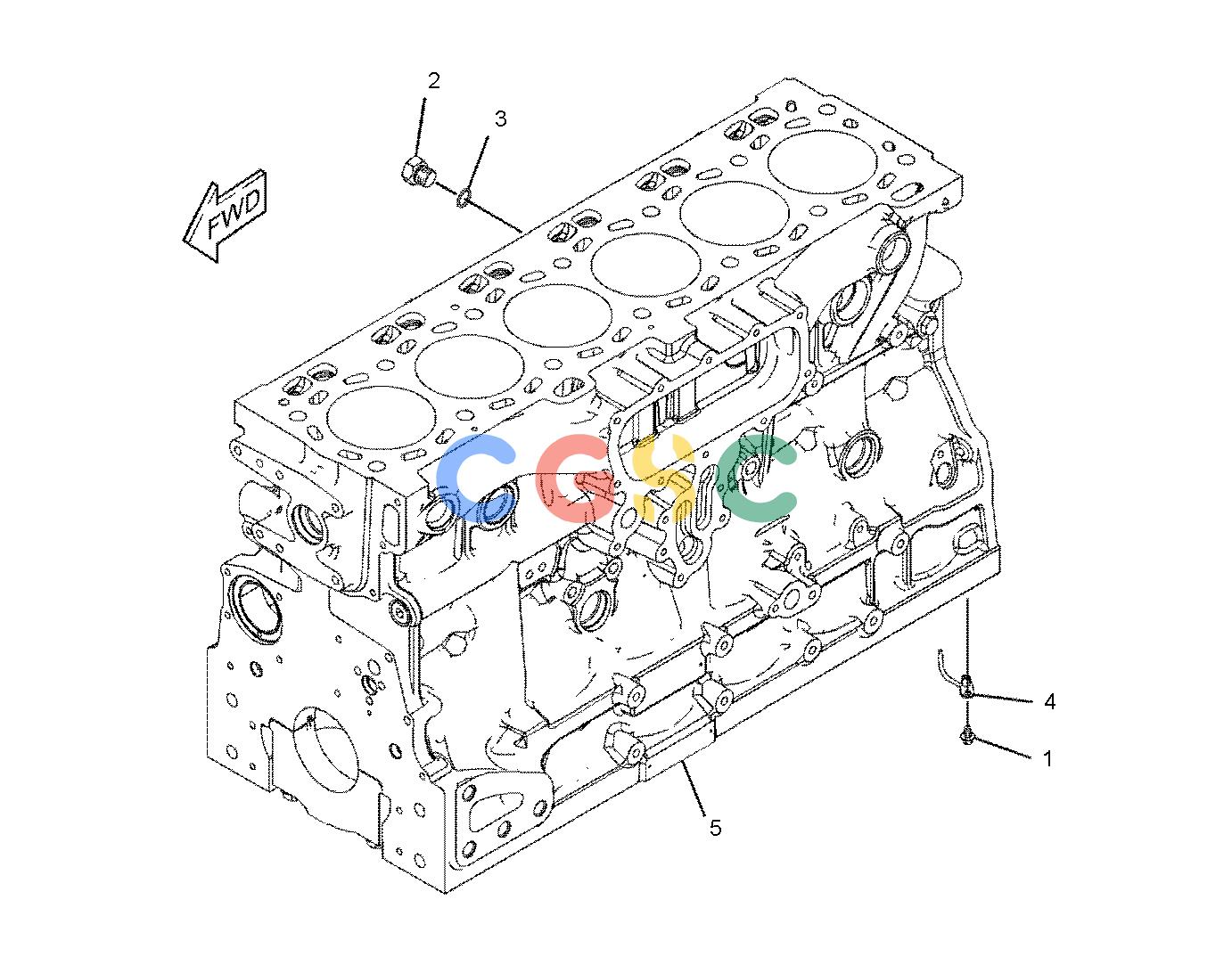

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 100-4841M | [6] | BOLT(M6X1X10-MM) | |
| 2. | 232-1322 | [1] | PLUG | |
| 3. | 276-5603 | [1] | SEAL-O-RING | |
| 4. | 276-5605 | [6] | JET AS-PISTON COOLING | |
| 5. | 420-5231Y | [1] | CYLINDER BLOCK AS | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
广数供应链运营团队, 16 02月, 2025，浏览： 874 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 100-4841M | [6] | BOLT(M6X1X10-MM) | |
| 2. | 232-1322 | [1] | PLUG | |
| 3. | 276-5603 | [1] | SEAL-O-RING | |
| 4. | 276-5605 | [6] | JET AS-PISTON COOLING | |
| 5. | 420-5231Y | [1] | CYLINDER BLOCK AS | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
