卡特零件查询（AP-655D） 279-8780: PISTON & ROD GP
广数供应链运营团队, 16 02月, 2025，浏览：
166 次

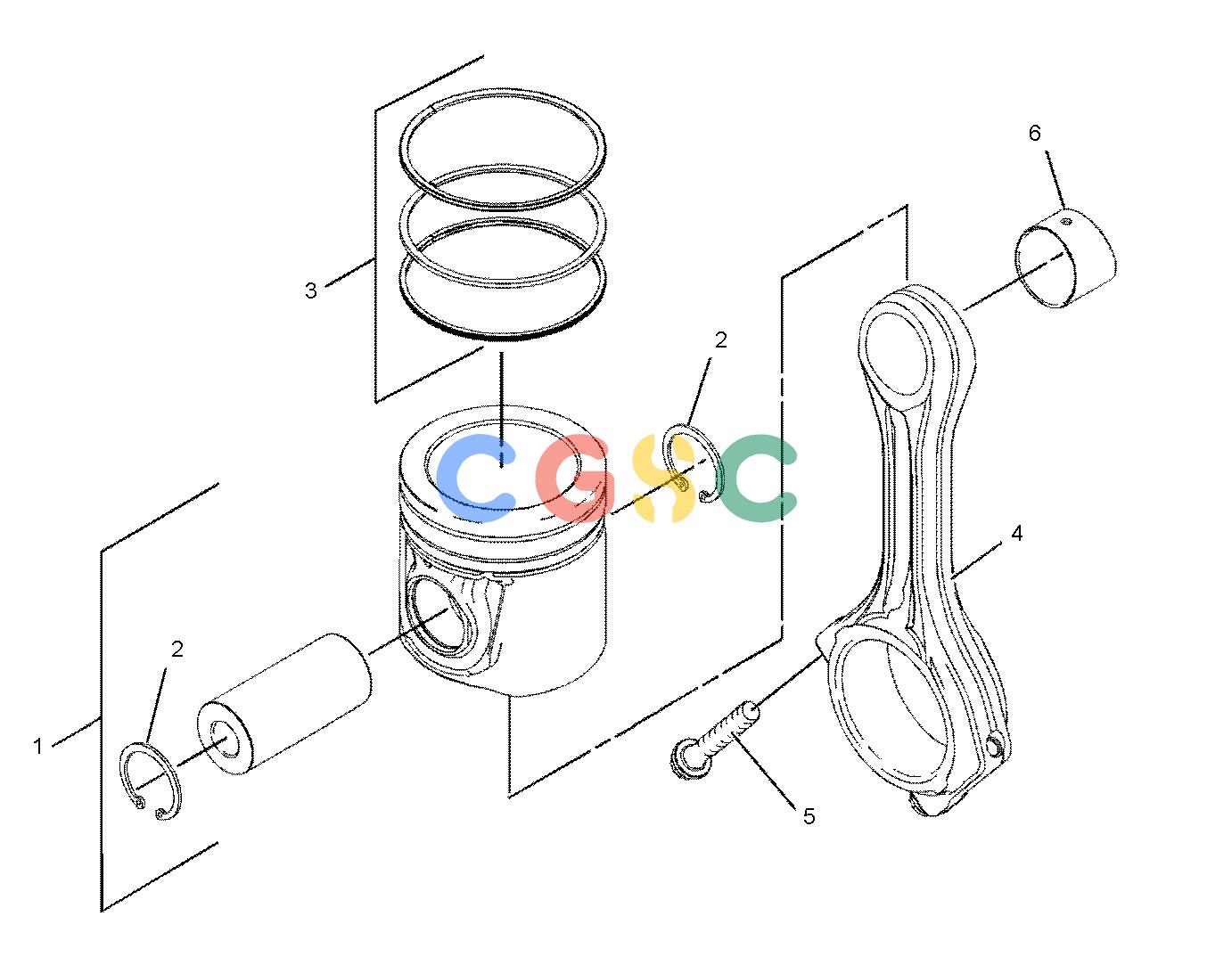

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 276-7475 | [6] | PISTON AS | |
| | | | (EACH INCLUDES) |
| 2. | 124-3536 | [2] | RING-RETAINING | |
| | 380-2062AB | [1] | KIT-PISTON(0.5-MM OS) | |
| 3. | 276-7476 | [6] | KIT-PISTON RING | |
| | 380-2065AB | [1] | KIT-PISTON RING(0.5-MM OS) | |
| 4. | 276-7479BJ | [6] | ROD AS(F) | |
| | | | -OR- |
| | 276-7481BJ | [6] | ROD AS(L) | |
| | | | -OR- |
| | 276-7483BJ | [6] | ROD AS(J) | |
| | | | (EACH ROD AS INCLUDES) |
| 5. | 225-5439 | [2] | BOLT-SPECIAL | |
| 6. | 276-7478 | [1] | BUSHING | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | ENSURE THAT CORRECT ROD LENGTH IS FITTED |
