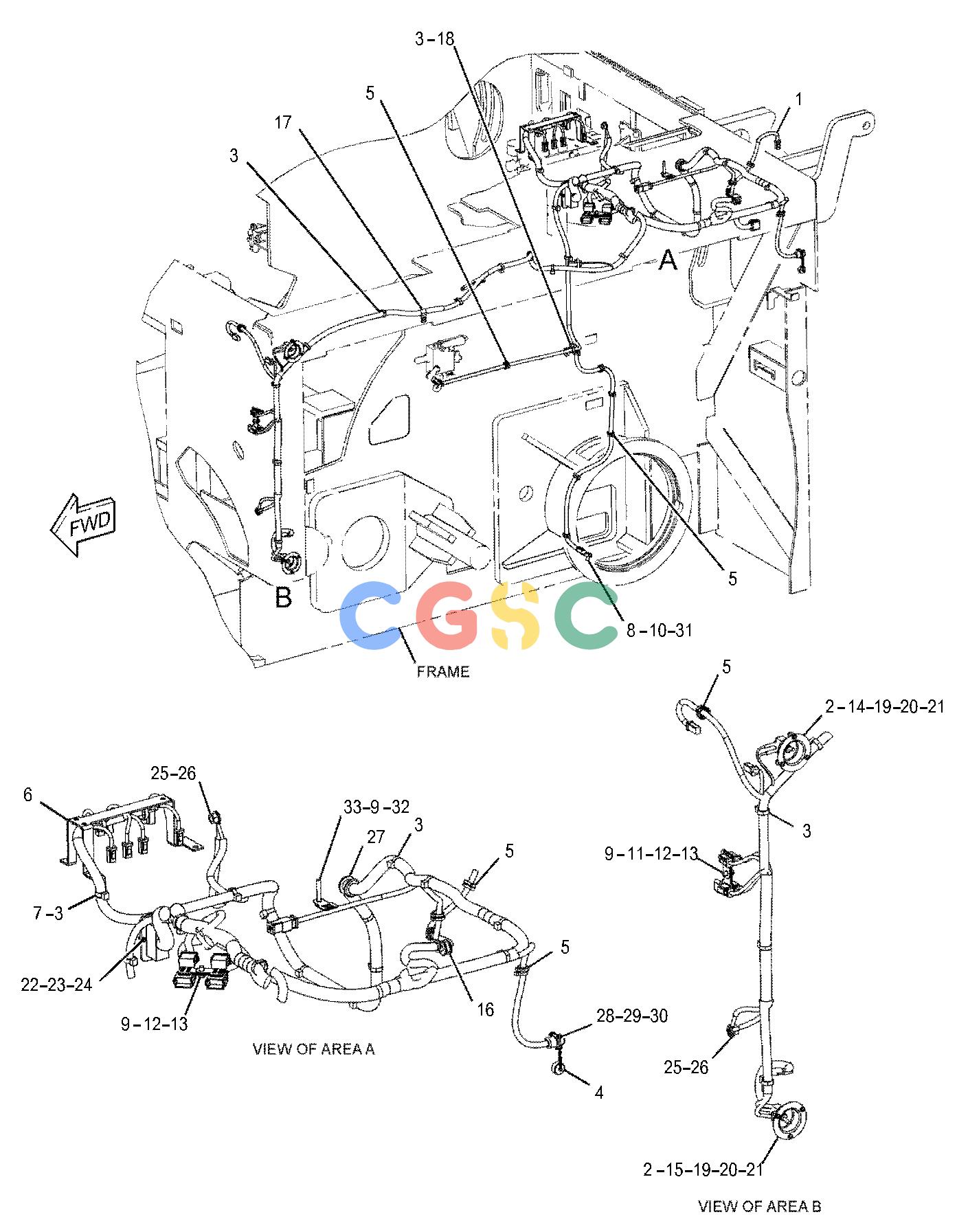

卡特零件查询（AP-655D） 269-8367: WIRING GP-MACHINE
广数供应链运营团队, 16 02月, 2025，浏览：
491 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 418-4236CY | [1] | HARNESS AS-CHASSIS(LH) | |
| 2. | 112-3101 | [2] | PLATE-FACE | |
| 3. | 7K-1181C | [31] | STRAP-CABLE | |
| 4. | 8D-9537 | [1] | CAP-DUST | |
| 5. | 3S-2093 | [26] | STRAP-CABLE | |
| 6. | 283-8045 | [1] | PLATE AS | |
| 7. | 132-5789 | [1] | CLIP(LADDER) | |
| 8. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 130-5300C | [9] | CLIP | |
| 10. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 11. | 189-3158 | [2] | SUPPRESSOR-ARC | |
| 12. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 13. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 14. | 8N-0694Y | [1] | SWITCH AS-TOGGLE(SINGLE POLE)(GROUND LEVEL SHUTDOWN) | |
| 15. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT CONTROL) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 16. | 5D-7635 | [1] | GROMMET | |
| 17. | 9M-8406 | [1] | CLIP(LOOP) | |
| 18. | 156-6175B | [1] | CLIP(LADDER) | |
| 19. | 2N-3480 | [6] | SCREW-MACHINE(10-24X0.75-IN) | |
| 20. | 4B-4274 | [6] | WASHER(5.5X13X1.2-MM THK) | |
| 21. | 4B-2047 | [6] | NUT(10-24-THD) | |
| 22. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 23. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 24. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 25. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 26. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 27. | 0L-1407 | [1] | GROMMET | |
| 28. | 6V-9671M | [4] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 29. | 9B-1117 | [4] | LOCKWASHER | |
| 30. | 3C-6969M | [4] | NUT(M3X0.5-THD) | |
| 31. | 116-0118 | [1] | CLIP | |
| 32. | 8T-4224C | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 8T-6912CM | [1] | BOLT(M8X1.25X50-MM) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
