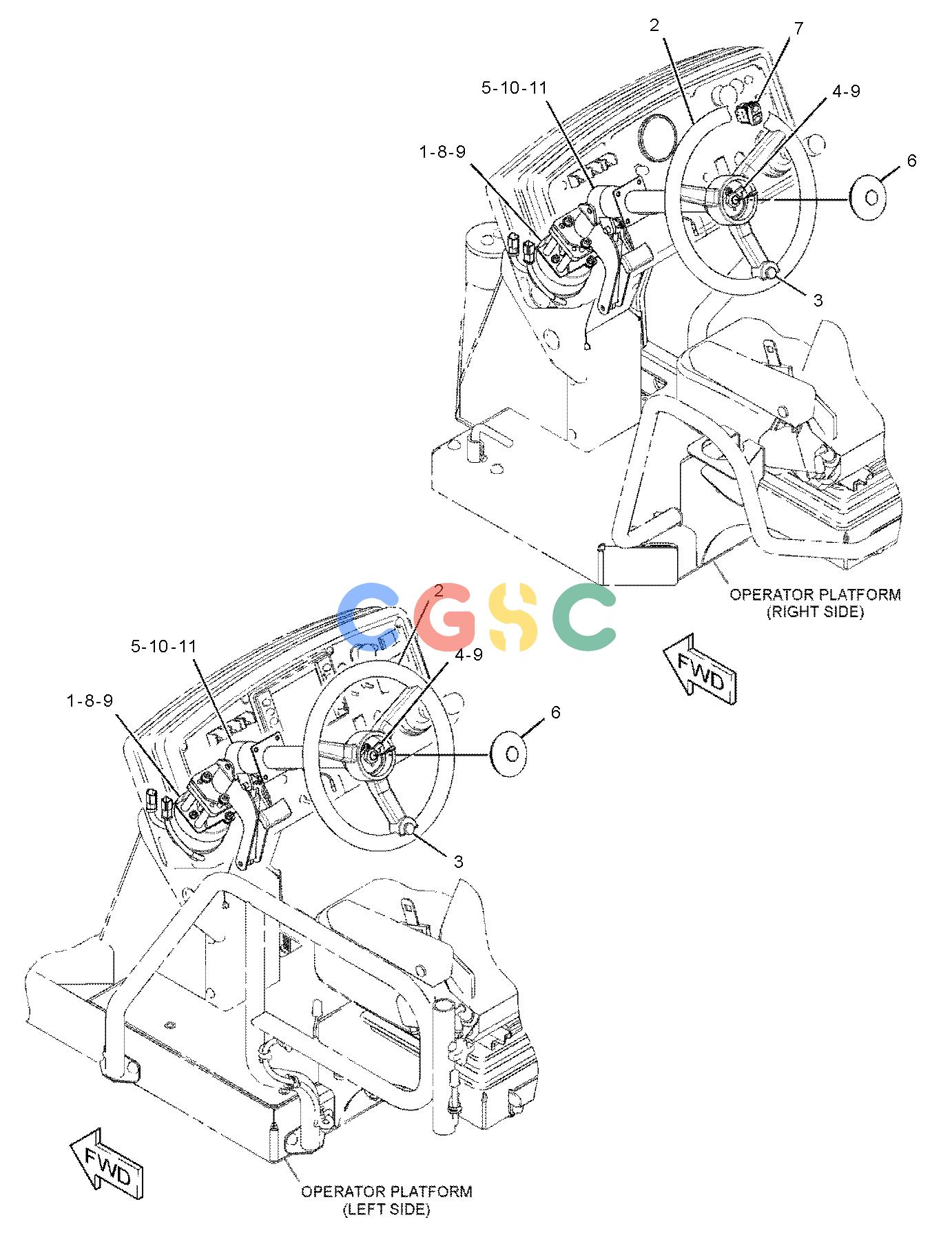

卡特零件查询（AP-655D） 343-7125: CONTROL GP-STEERING
广数供应链运营团队, 16 02月, 2025，浏览：
989 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 096-4903 | [2] | KEY-SQUARE | |
| 2. | 329-5717 | [2] | STEERING WHEEL AS | |
| 3. | 153-7368 | [2] | PLUG | |
| 4. | 217-8058 | [2] | WIRE AS | |
| 5. | 261-7691Y | [2] | STEERING COLUMN GP | |
| 6. | 322-8568 | [2] | BUTTON AS-HORN | |
| 7. | 329-2628B | [1] | SWITCH AS-ROCKER(STEERING) | |
| 8. | 347-1976Y | [2] | CONTROL GP-STEERING | |
| 9. | 8T-0267M | [6] | BOLT-SOCKET HEAD(M6X1X12-MM) | |
| 10. | 8T-1159M | [8] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 11. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
