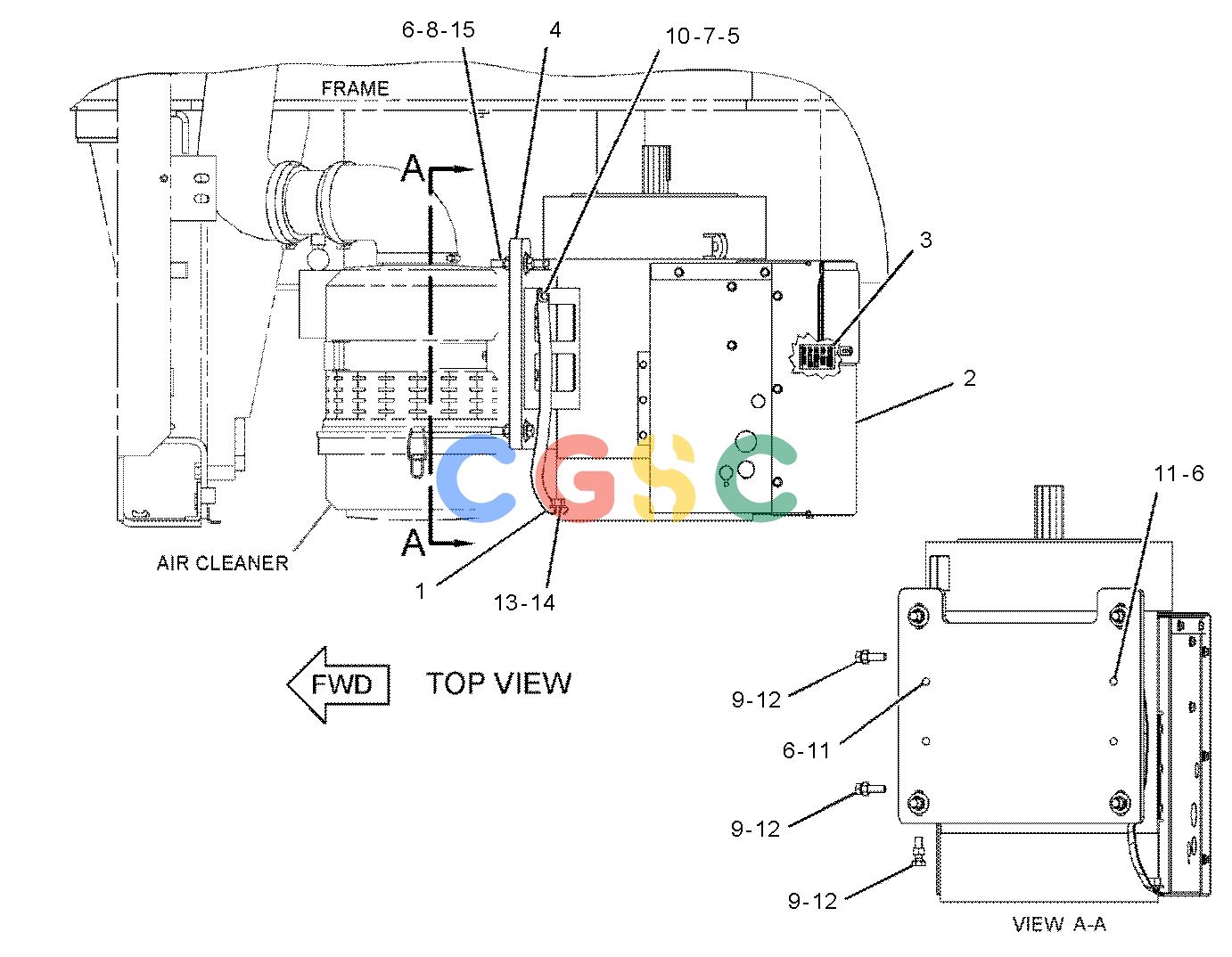

卡特零件查询（AP-655D） 289-5220: GENERATOR GP
广数供应链运营团队, 16 02月, 2025，浏览：
790 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6584 | [1] | STRAP AS-GROUND | |
| 2. | 231-1332Y | [1] | GENERATOR GP(23-KW) | |
| 3. | 247-4947 | [1] | FILM-INFORMATION(CIRCUIT BREAKER) | |
| 4. | 276-8163 | [1] | PLATE | |
| 5. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 6. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 8. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 9. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 10. | 8T-4138M | [1] | BOLT(M6X1X20-MM) | |
| 11. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 12. | 8T-4196M | [3] | BOLT(M10X1.5X35-MM) | |
| 13. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 15. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
