卡特零件查询（AP-655D） 298-0642: SENSOR GP-GRADE
广数供应链运营团队, 16 02月, 2025，浏览：
397 次

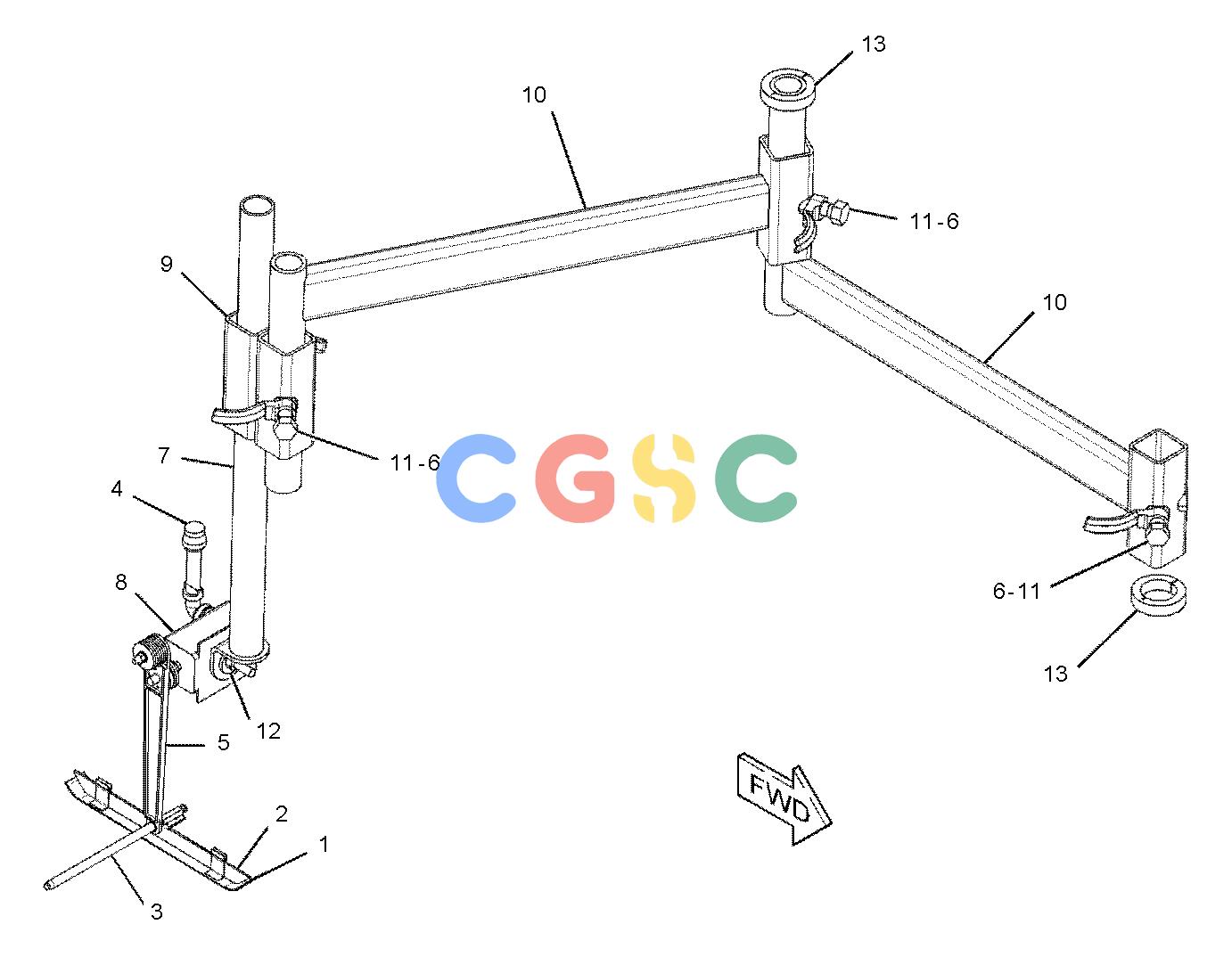

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-7611 | [1] | RUNNER-SKATE | |
| 2. | 8C-7612 | [1] | RUNNER-SKATE | |
| 3. | 8C-7613 | [1] | TUBE | |
| 4. | 108-2423 | [1] | CABLE AS | |
| | 111-3262 | [2] | NUT(6-32-THD) | |
| | 111-3263 | [2] | NUT(8-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4295 | [1] | PLUG | |
| | 110-4296 | [1] | PLUG | |
| | 110-6863 | [1] | CABLE | |
| | 111-1308 | [2] | BUSHING | |
| 5. | 122-0099 | [1] | ARM-FOLLOWER | |
| 6. | 134-9621 | [4] | HANDLE | |
| 7. | 197-8454 | [1] | TUBE AS | |
| 8. | 376-0155Y | [1] | SENSOR GP-POSITION(GRADE CONTROL) | |
| 9. | 298-0641 | [1] | TUBE AS | |
| 10. | 298-0644 | [2] | MOUNT AS-SENSOR | |
| 11. | 7X-0366 | [4] | BOLT(3/4-10X2-IN) | |
| 12. | 7X-0618 | [1] | WASHER-HARD(13.5X40X5-MM THK) | |
| 13. | 146-9410 | [2] | COLLAR | |
| | Y | | SEPARATE ILLUSTRATION |
