卡特零件查询（AP-655D） 348-7769: BOX GP-SCREED CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
555 次

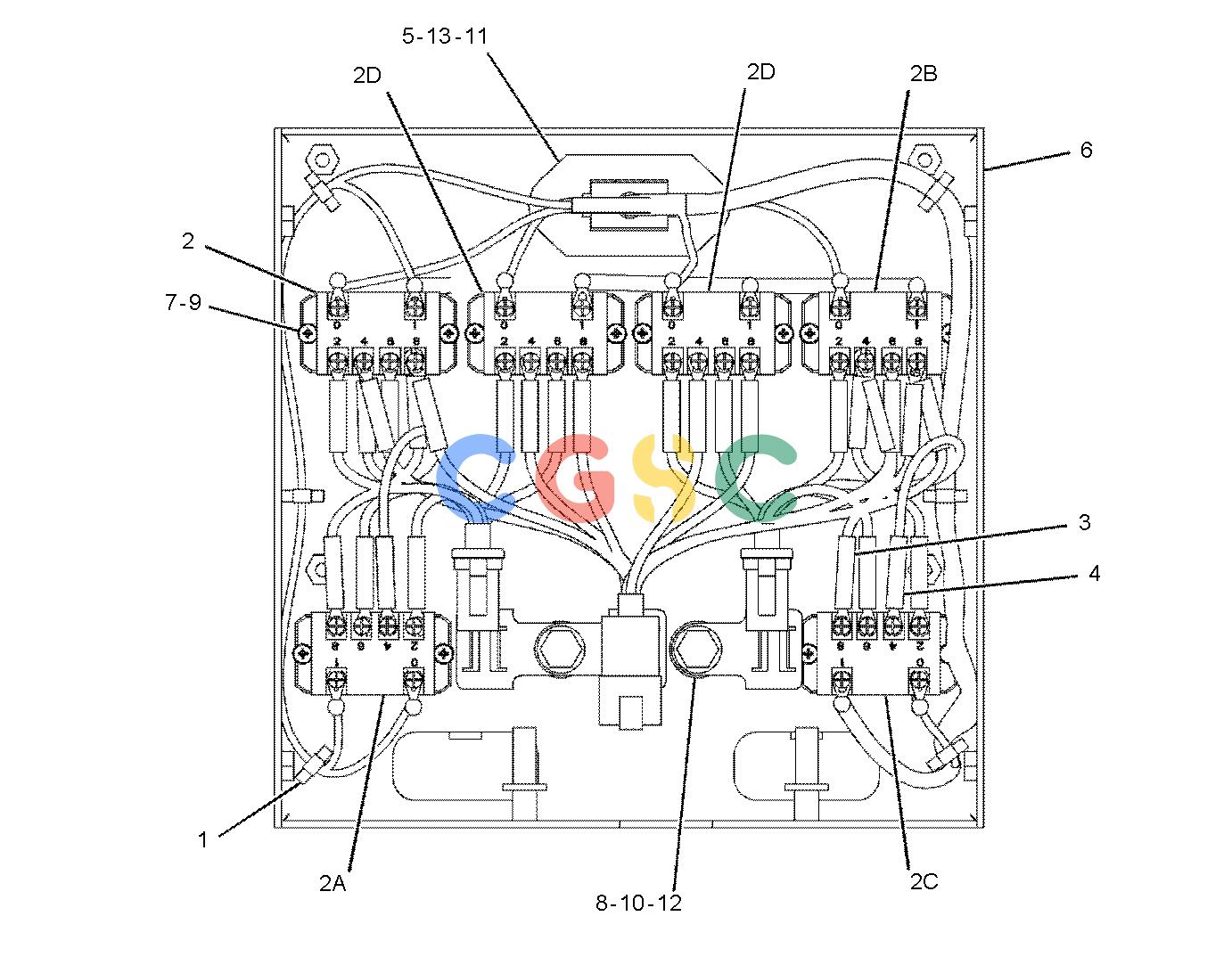

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [6] | STRAP-CABLE | |
| 2. | 348-2408 | [1] | RELAY AS(24-VOLT)(EXTENDER, LH) | |
| 2A. | 348-2408 | [1] | RELAY AS(24-VOLT)(EXTENDER, RH) | |
| 2B. | 348-2408 | [1] | RELAY AS(24-VOLT)(MAIN, LH) | |
| 2C. | 348-2408 | [1] | RELAY AS(24-VOLT)(MAIN, RH) | |
| 2D. | 348-2408 | [2] | RELAY AS(24-VOLT)(TRACTOR) | |
| 3. | 348-7128 | [2] | WIRE AS | |
| 4. | 348-7129 | [2] | WIRE AS | |
| 5. | 348-7763 | [1] | HARNESS AS-PANEL | |
| | 7T-0093 | [8] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8T-8729 | [7] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 177-9648 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | 177-9656 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [5] | PLUG-SEAL | |
| | 103-8133 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | 177-9653 | [2] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 7T-0094 | [12] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 5P-1475 | [5] | TERMINAL-FORK(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 9G-3186 | [7] | TERMINAL-FORK(18-GA TO 22-GA, NO. 8 SCREW) | |
| | 5P-1477 | [20] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| 6. | 349-4773 | [1] | BOX AS | |
| 7. | 096-6166 | [12] | WASHER-HARD(4.5X9X1-MM THK) | |
| 8. | 130-5300 | [6] | CLIP | |
| 9. | 8C-7581M | [12] | SCREW-MACHINE(M4X0.7X8-MM) | |
| 10. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 12. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 13. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
