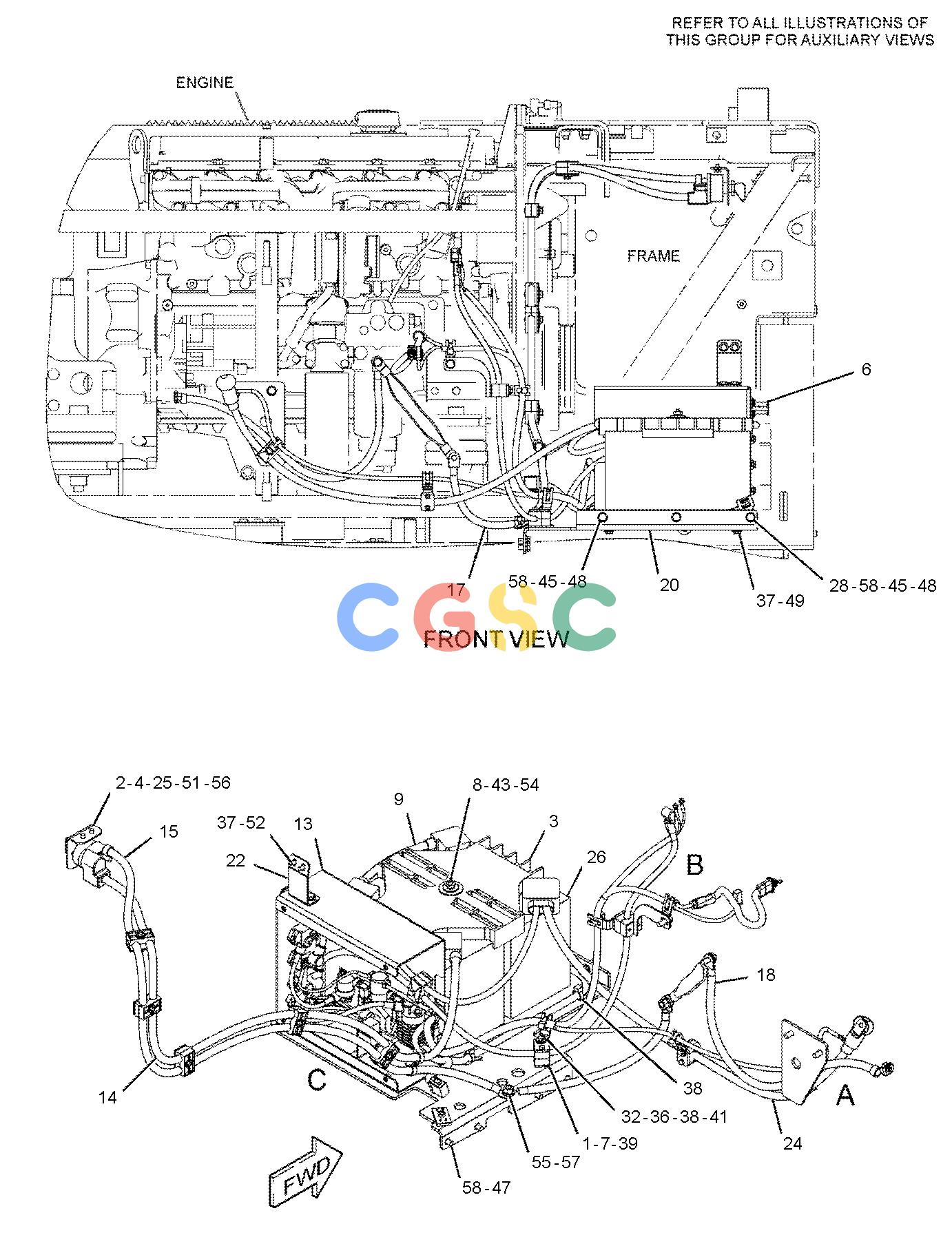

| 1. | 1G-8781 | [4] | CLAMP | |
| 2. | 3E-8320 | [1] | PLATE-INSTRUCTION(BATTERY) | |
| 3. | 6W-6005 | [1] | HOLD-DOWN-BATTERY | |
| 4. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 5. | 102-8703 | [7] | PLATE-COVER | |
| 6. | 106-0800 | [1] | CONNECTOR GP(REMOTE JUMP START, POSITIVE) | |
| | 4D-5243 | [1] | LOCKWASHER | |
| | 9B-9146 | [1] | NUT-SPECIAL(3/8-16-THD) | |
| | 062-5388 | [1] | LOCKNUT(1-11-1/2-THD) | |
| | 277-5777 | [1] | COVER-TERMINAL | |
| 7. | 107-4749 | [3] | PLATE | |
| 8. | 111-7758 | [1] | ROD | |
| 9. | 128-0314 | [1] | CABLE AS | |
| | 8C-5918 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 8T-9756 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 5P-0761E | | CABLE(00-GA, RED)(29-CM) | |
| | 9G-0002 | [1] | COVER AS-TERMINAL(RED)(POSITIVE, LH) | |
| | 9G-0005 | [1] | COVER AS-TERMINAL(BLACK)(NEGATIVE, RH) | |
| 10. | 134-3355 | [1] | STRAP AS | |
| 11. | 165-5970Y | [1] | SWITCH GP-TOGGLE(FUEL PRIMING PUMP) | |
| 12. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 13. | 278-1591Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 14. | 279-9885 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(190-CM) | |
| | 8S-3020 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 9G-0003 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8T-9757 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 9X-5699 | [1] | BOOT | |
| 15. | 279-9886 | [1] | CABLE AS | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(193-CM) | |
| | 8S-3020 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 16. | 279-9889 | [1] | CABLE AS | |
| | 8C-3056E | | CABLE(2-GA, RED)(138-CM) | |
| | 8T-8799 | [1] | BOOT(RED) | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | | [1] | TERMINAL AS |
| | 8C-3056E | | CABLE(2-GA, RED)(15-CM) | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(5-CM) | |
| 17. | 279-9890 | [1] | CABLE AS | |
| | 1S-7251 | [2] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(44-CM) | |
| 18. | 279-9891 | [1] | CABLE AS | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(71-CM) | |
| | 8S-3020 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 19. | 280-2488 | [1] | BRACKET AS | |
| 20. | 280-2490 | [1] | TRAY AS-BATTERY | |
| 21. | 281-6361 | [1] | BRACKET AS | |
| 22. | 284-7629 | [1] | PLATE | |
| 23. | 288-8075 | [1] | CABLE AS | |
| | 311-6185 | [1] | TERMINAL AS | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 8C-3056E | | CABLE(2-GA, RED)(13-CM) | |
| | 8T-8799 | [1] | BOOT(RED) | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 24. | 289-1181 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(105-CM) | |
| | 141-2640 | [1] | TERMINAL AS-BATTERY(POSITIVE, DUAL ENTRY) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | | [1] | TERMINAL AS |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 6V-2722D | | TUBE-HEAT SHRINK(25.4-MM DIA)(0.1-M) | |
| | 311-6185 | [1] | TERMINAL AS | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 8C-3056E | | CABLE(2-GA, RED)(80-CM) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8T-8799 | [1] | BOOT(RED) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 25. | 289-1542 | [1] | PLATE | |
| 26. | 115-2422 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| | | | (EACH INCLUDES) |
| | 123-1373 | [1] | CAP AS-FILLER(7/8-9-THD) | |
| 27. | 128-5531 | [2] | CLAMP-HALF | |
| 28. | 130-5300 | [1] | CLIP | |
| 29. | 154-4879 | [2] | CLAMP-HALF | |
| 30. | 156-5306 | [12] | CLAMP-HALF | |
| 31. | 4P-7581 | [2] | CLIP(LADDER)(LADDER) | |
| 32. | 4P-8134 | [3] | CLIP(LADDER)(LADDER) | |
| 33. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 34. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 35. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 36. | 5P-4115 | [3] | WASHER-HARD(7.2X19X2-MM THK) | |
| 37. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 38. | 7K-1181 | [9] | STRAP-CABLE | |
| 39. | 7X-2533M | [3] | BOLT(M6X1X35-MM) | |
| 40. | 7X-2537M | [6] | BOLT(M8X1.25X35-MM) | |
| 41. | 8C-8451M | [3] | BOLT(M6X1X40-MM) | |
| 42. | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 43. | 8T-0389M | [1] | LOCKNUT(M10X1.5-THD) | |
| 44. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 45. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 46. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 47. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 48. | 8T-4186M | [3] | BOLT(M10X1.5X40-MM) | |
| 49. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 50. | 8T-4197M | [1] | BOLT(M8X1.25X40-MM) | |
| 51. | 8T-4199M | [2] | BOLT(M8X1.25X12-MM) | |
| 52. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 53. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 54. | 8T-4222 | [1] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 55. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 56. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 57. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 58. | 7X-7729 | [10] | WASHER(11X25X3-MM THK) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
