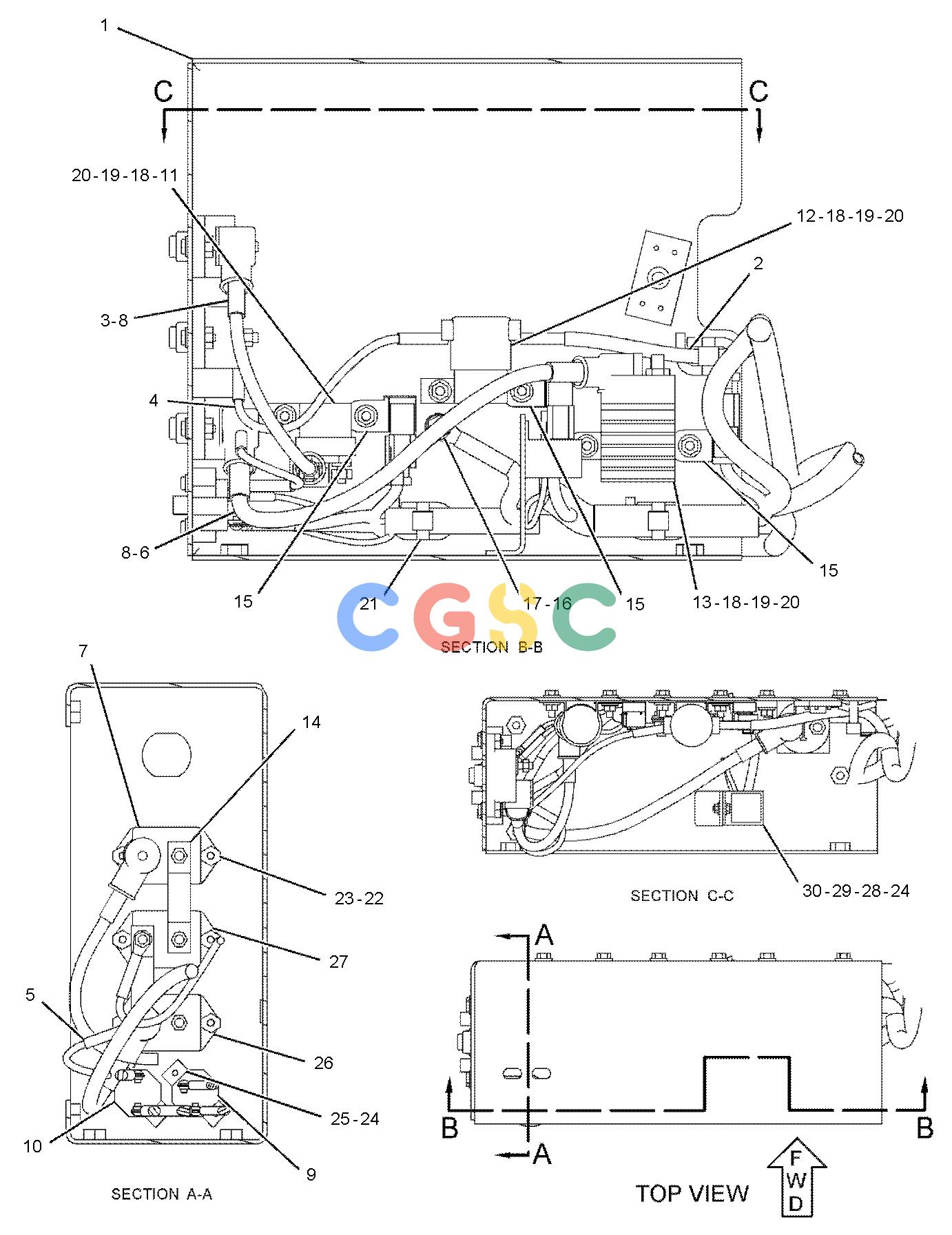

卡特零件查询（AP-655D） 278-1591: PANEL GP-CIRCUIT BREAKER
广数供应链运营团队, 17 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 278-1588 | [1] | PANEL AS-CIRCUIT BREAKER | |
| 2. | 278-1589 | [1] | HARNESS AS-POWER | |
| 3. | 278-4826 | [1] | WIRE AS | |
| 4. | 278-4827 | [1] | WIRE AS | |
| 5. | 278-4828 | [1] | WIRE AS | |
| 6. | 278-4829 | [1] | WIRE AS | |
| 7. | 171-2206 | [1] | CIRCUIT BREAKER AS(50-AMPERE)(STARTING AID) | |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 8. | 8T-8799 | [4] | BOOT(RED) | |
| 9. | 9D-9094 | [1] | CIRCUIT BREAKER AS(40-AMPERE)(ENGINE CONTROL RELAY 2) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 10. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(ENGINE CONTROL RELAY 1) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 11. | 118-3534Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(STARTING AID RELAY) | |
| 12. | 118-3534Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(START RELAY) | |
| 13. | 241-8368Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(MAIN RELAY) | |
| 14. | 7V-9275 | [2] | STRAP | |
| 15. | 116-0118 | [3] | CLIP | |
| 16. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 17. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 18. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 19. | 5C-2890M | [6] | NUT(M6X1-THD) | |
| 20. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 21. | 7K-1181 | [3] | STRAP-CABLE | |
| 22. | 4B-4274 | [6] | WASHER(5.5X13X1.2-MM THK) | |
| 23. | 6V-7978 | [6] | SCREW-MACHINE(10-32X0.375-IN) | |
| 24. | 4B-4863 | [6] | WASHER(4.7X11X1.2-MM THK) | |
| 25. | 9X-8486 | [4] | SCREW-MACHINE(8-32X0.75-IN) | |
| 26. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(MAIN) | |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 27. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(ALTERNATOR) | |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 28. | 8T-0285M | [1] | SCREW-MACHINE(M4X0.7X12-MM) | |
| 29. | 5C-8312M | [1] | NUT(M4X0.7-THD) | |
| 30. | 3E-6477 | [1] | RELAY AS(24-VOLT)(ENGINE START) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
