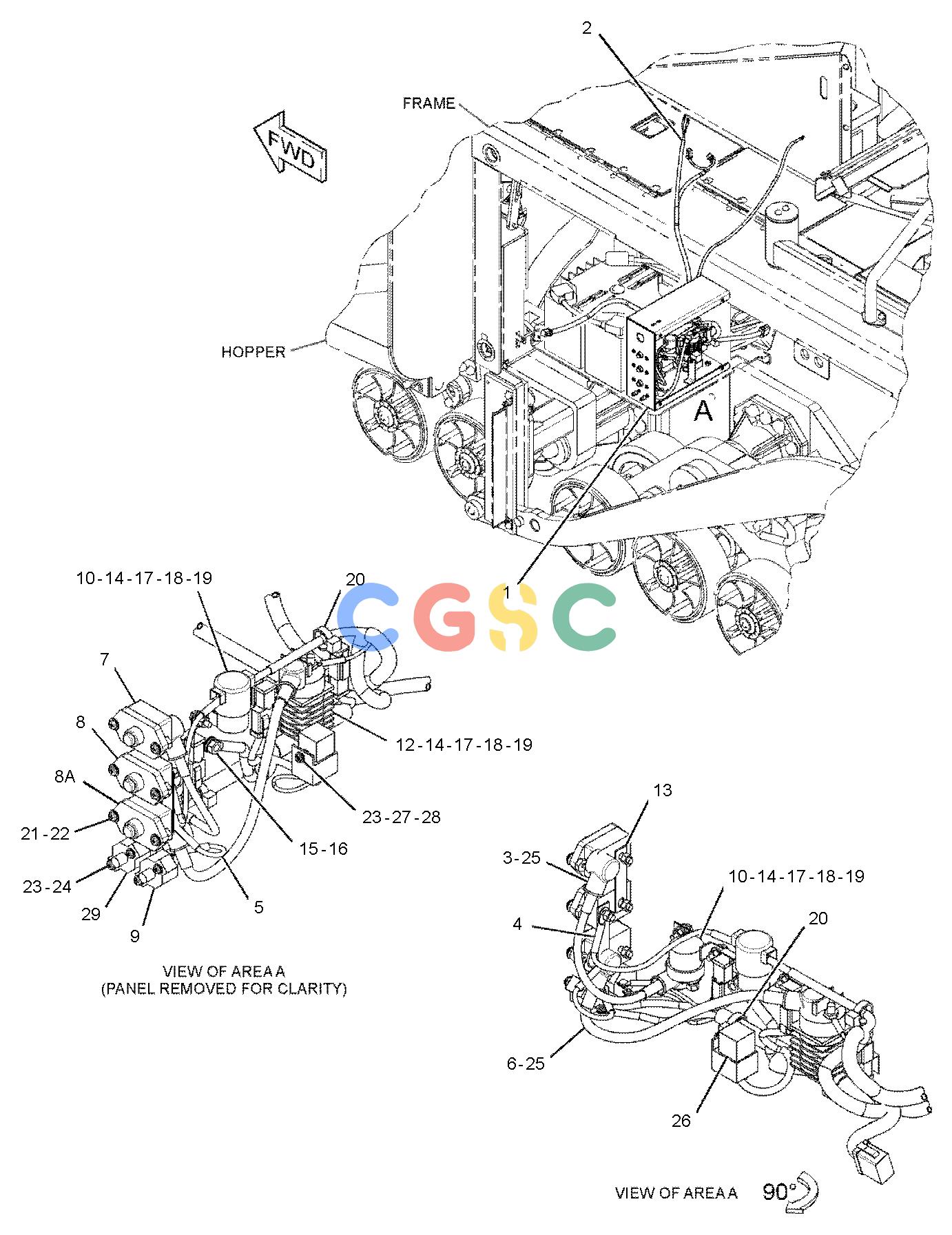

| 1. | 278-1588 | [1] | PANEL AS-CIRCUIT BREAKER | |
| 2. | 326-6195 | [1] | HARNESS AS-POWER(PANEL) | |
| | 2L-8078 | [1] | TERMINAL-RING(14-GA TO 16-GA, 5/16-IN SCREW) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | 155-2255 | [2] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2270 | [3] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 180-9339 | [2] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [25] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 7T-6364 | [4] | TERMINAL-BLADE(12-GA TO 16-GA) | |
| | 7T-6365 | [1] | HOUSING-RECEPTACLE | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| | 155-2258 | [1] | WEDGE-PLUG LOCK(12-PIN) | |
| | 131-1490 | [1] | TERMINAL AS(6-GA TO 8-GA) | |
| | 2L-8065 | [2] | TERMINAL-RING(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 2L-8067 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/4-IN SCREW) | |
| | 2L-8075 | [2] | TERMINAL-RING(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 2L-8076 | [2] | TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW) | |
| 3. | 278-4826 | [1] | WIRE AS | |
| 4. | 278-4827 | [1] | WIRE AS | |
| 5. | 278-4828 | [1] | WIRE AS | |
| 6. | 278-4829 | [1] | WIRE AS | |
| 7. | 171-2206 | [1] | CIRCUIT BREAKER AS(50-AMPERE)(STARTING AID) | |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 8. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(MAIN) | |
| 8A. | 171-2210 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(ALTERNATOR) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 6V-8187 | [2] | NUT(1/4-28-THD) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 9. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(ENGINE CONTROL) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 10. | 118-3534Y | [2] | SWITCH GP-MAGNETIC(24-VOLT)(START RELAY) | |
| 12. | 167-0138Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(MAIN RELAY) | |
| 13. | 7V-9275 | [2] | STRAP | |
| 14. | 116-0118 | [3] | CLIP | |
| 15. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 17. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 18. | 5C-2890M | [6] | NUT(M6X1-THD) | |
| 19. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 20. | 7K-1181 | [3] | STRAP-CABLE | |
| 21. | 4B-4274 | [6] | WASHER(5.5X13X1.2-MM THK) | |
| 22. | 6V-7978 | [6] | SCREW-MACHINE(10-32X0.375-IN) | |
| 23. | 4B-4863 | [6] | WASHER(4.7X11X1.2-MM THK) | |
| 24. | 9X-8486 | [4] | SCREW-MACHINE(8-32X0.75-IN) | |
| 25. | 8T-8799 | [4] | BOOT(RED) | |
| 26. | 3E-6477 | [1] | RELAY AS(24-VOLT)(FUEL PRIMING PUMP) | |
| 27. | 8T-0285M | [1] | SCREW-MACHINE(M4X0.7X12-MM) | |
| 28. | 5C-8312M | [1] | NUT(M4X0.7-THD) | |
| 29. | 6T-3642 | [1] | CIRCUIT BREAKER AS(10-AMPERE)(FUEL PRIMING PUMP) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
