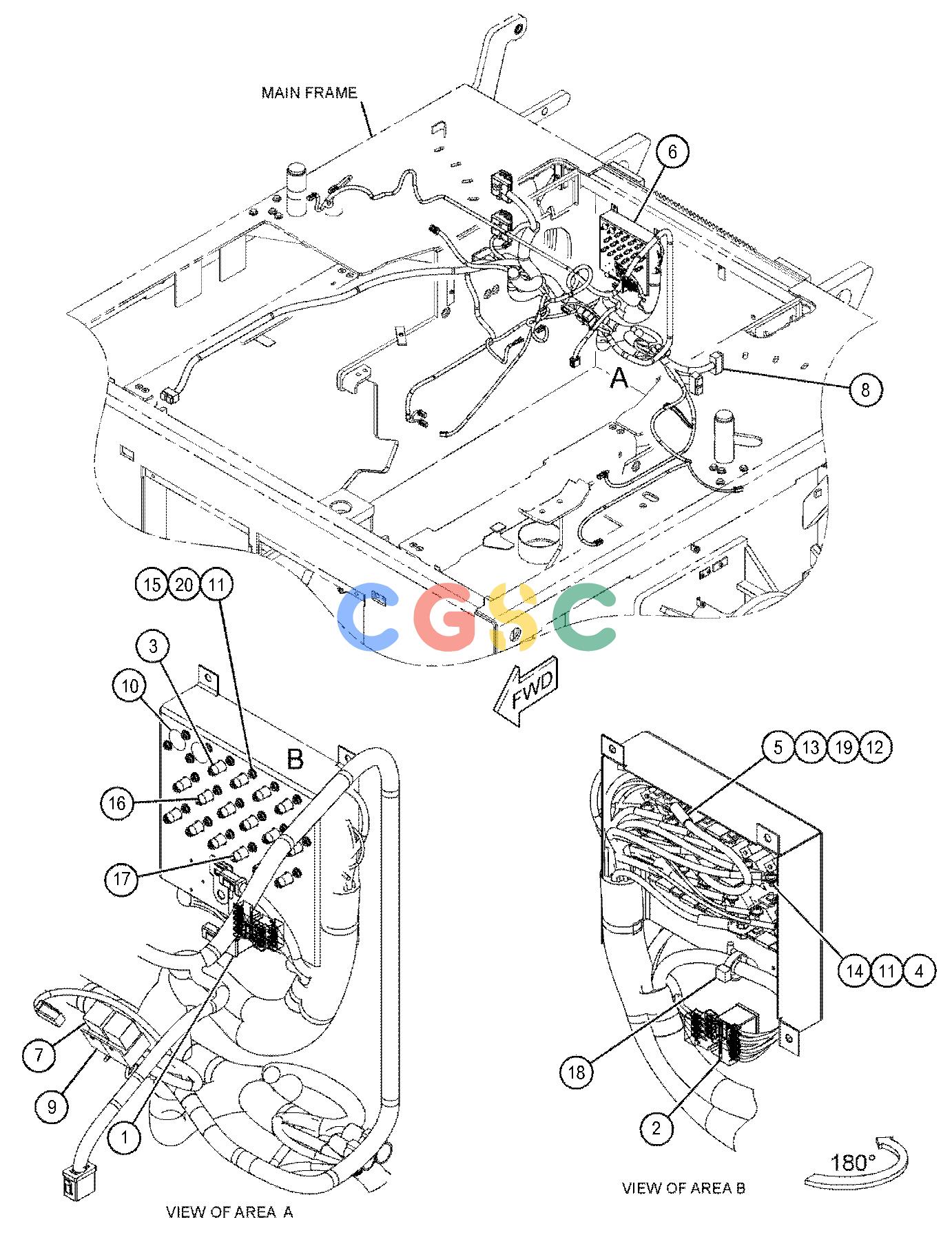

卡特零件查询（AP-655D） 422-0920: PANEL GP-CIRCUIT BREAKER
广数供应链运营团队, 17 02月, 2025，浏览：
803 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 105-4684 | [1] | RELAY AS(24-VOLT)(ENGINE START) | |
| 2. | 115-7948 | [1] | SOCKET-RELAY | |
| 3. | 226-7300 | [1] | CIRCUIT BREAKER AS(25-AMPERE) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 4. | 236-0872 | [13] | STRAP AS | |
| | 8T-5346E | | TUBE-HEAT SHRINK(19.1-MM DIA)(2-CM) | |
| 5. | 280-6834 | [1] | WIRE AS(6-GA) | |
| 6. | 292-7943 | [1] | PANEL AS-CIRCUIT BREAKER | |
| | 7T-1099 | [2] | LINK | |
| | 130-5300 | [2] | CLIP | |
| 7. | 363-6530 | [2] | RELAY AS(24-VOLT)(SUPPRESSION) | |
| 8. | 416-2493Y | [1] | HARNESS AS-CONTROL | |
| 9. | 419-1605 | [1] | SPRING-HOLDER | |
| 10. | 2V-3726 | [2] | BUMPER | |
| 11. | 4B-4863 | [72] | WASHER(4.7X11X1.2-MM THK) | |
| 12. | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 13. | 5C-9553M | [3] | BOLT(M6X1X16-MM) | |
| 14. | 6D-3031 | [32] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 15. | 6D-5801 | [4] | LOCKNUT(8-32-THD) | |
| 16. | 6T-3643 | [10] | CIRCUIT BREAKER AS(15-AMPERE) | |
| 17. | 6T-3644 | [5] | CIRCUIT BREAKER AS(20-AMPERE) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 18. | 7K-1181 | [2] | STRAP-CABLE | |
| 19. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 20. | 9X-8486 | [36] | SCREW-MACHINE(8-32X0.75-IN) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
