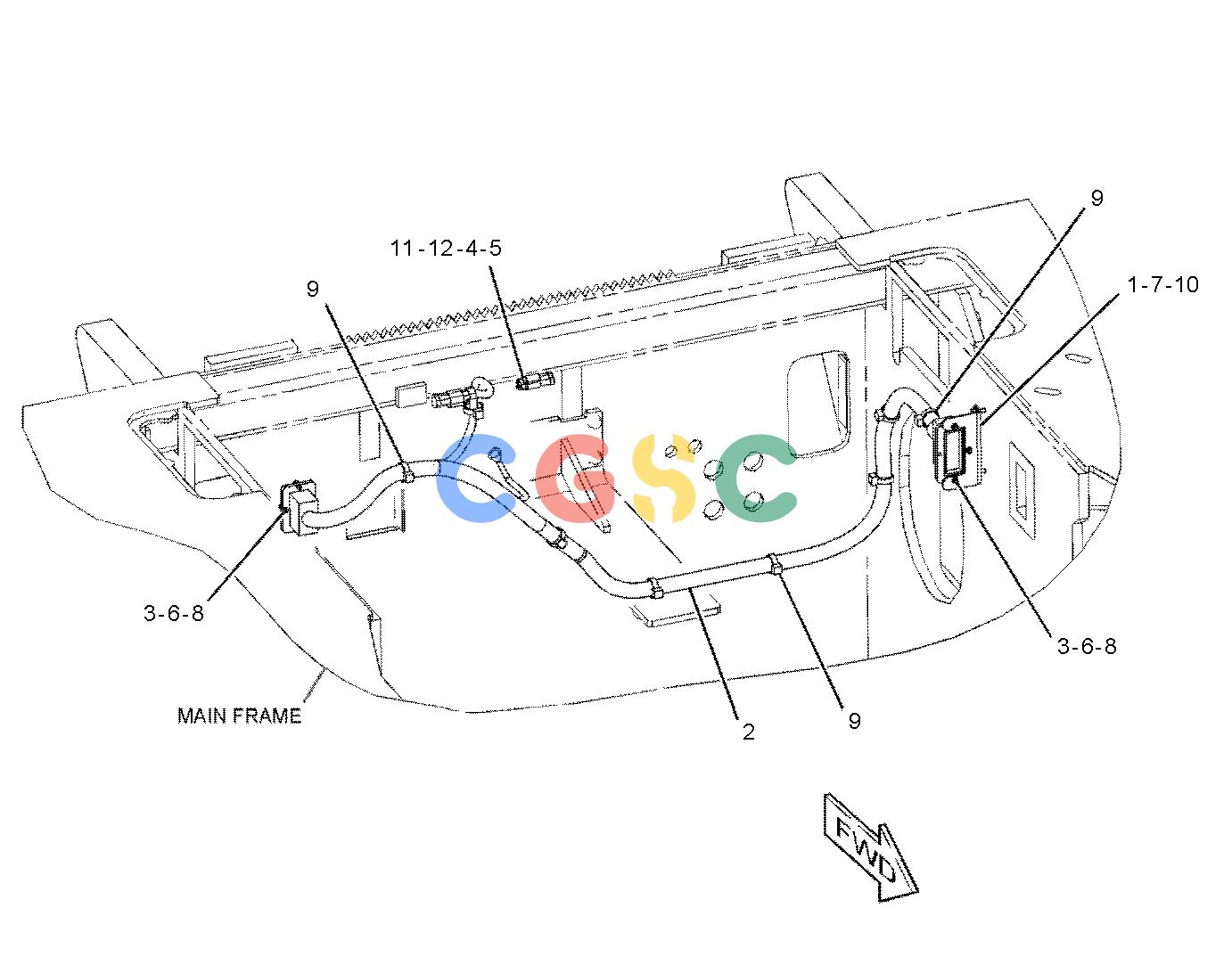

卡特零件查询（AP-655D） 269-8369: WIRING GP-MACHINE
广数供应链运营团队, 17 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 235-3518 | [1] | PLATE | |
| 2. | 272-5741 | [1] | HARNESS AS-REAR CHASSIS | |
| | 8T-8737 | [28] | PLUG-SEAL | |
| | 9X-7143 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| | 183-5785 | [1] | RECEPTACLE AS(40-PIN) | |
| | 2L-8071 | [1] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 180-9339 | [40] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 180-9340 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 3. | 096-6166 | [7] | WASHER-HARD(4.5X9X1-MM THK) | |
| 4. | 8T-8737 | [3] | PLUG-SEAL | |
| 5. | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR | |
| 6. | 5C-8312M | [7] | NUT(M4X0.7-THD) | |
| 7. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 8. | 6V-9672M | [7] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 9. | 7K-1181 | [8] | STRAP-CABLE | |
| 10. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 11. | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| 12. | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
