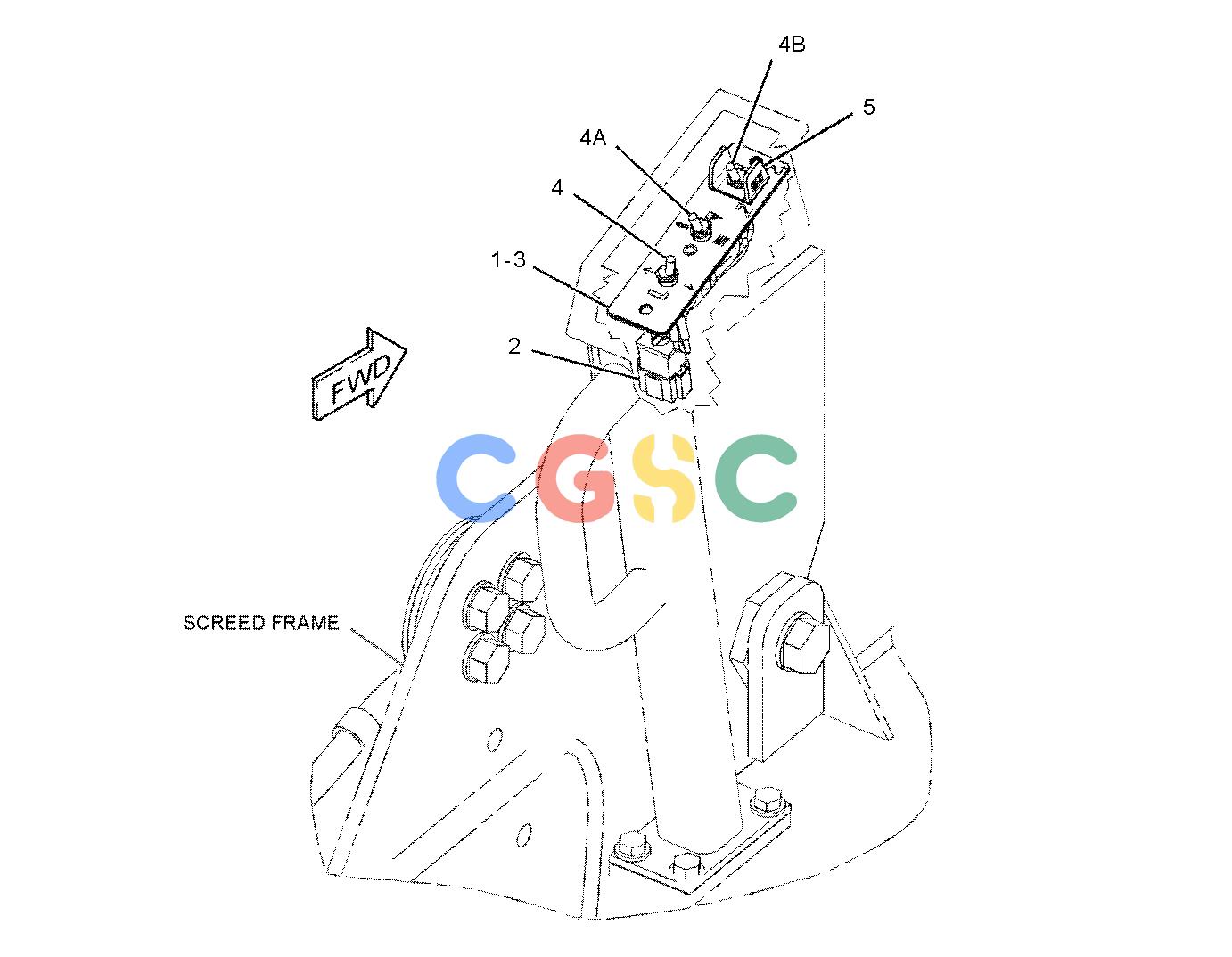

卡特零件查询（AP-655D） 276-4552: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
317 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 276-4542 | [1] | FILM-IDENTIFICATION(SCREED EXTENSION) | |
| 2. | 276-4553 | [1] | HARNESS AS-SWITCH(SCREED) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 7N-7978 | [1] | TERMINAL-FORK(10-GA TO 12-GA, NO. 6 SCREW) | |
| | 5P-2321 | [8] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| 3. | 276-4556 | [1] | PLATE | |
| 4. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER CONTROL, RH) | |
| 4A. | 246-8912 | [1] | SWITCH GP-TOGGLE(FEEDER CONTROL) | |
| 4B. | 246-8912 | [1] | SWITCH GP-TOGGLE(TOW POINT CONTROL, RH) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 5. | 265-9984 | [1] | BRACKET | |
