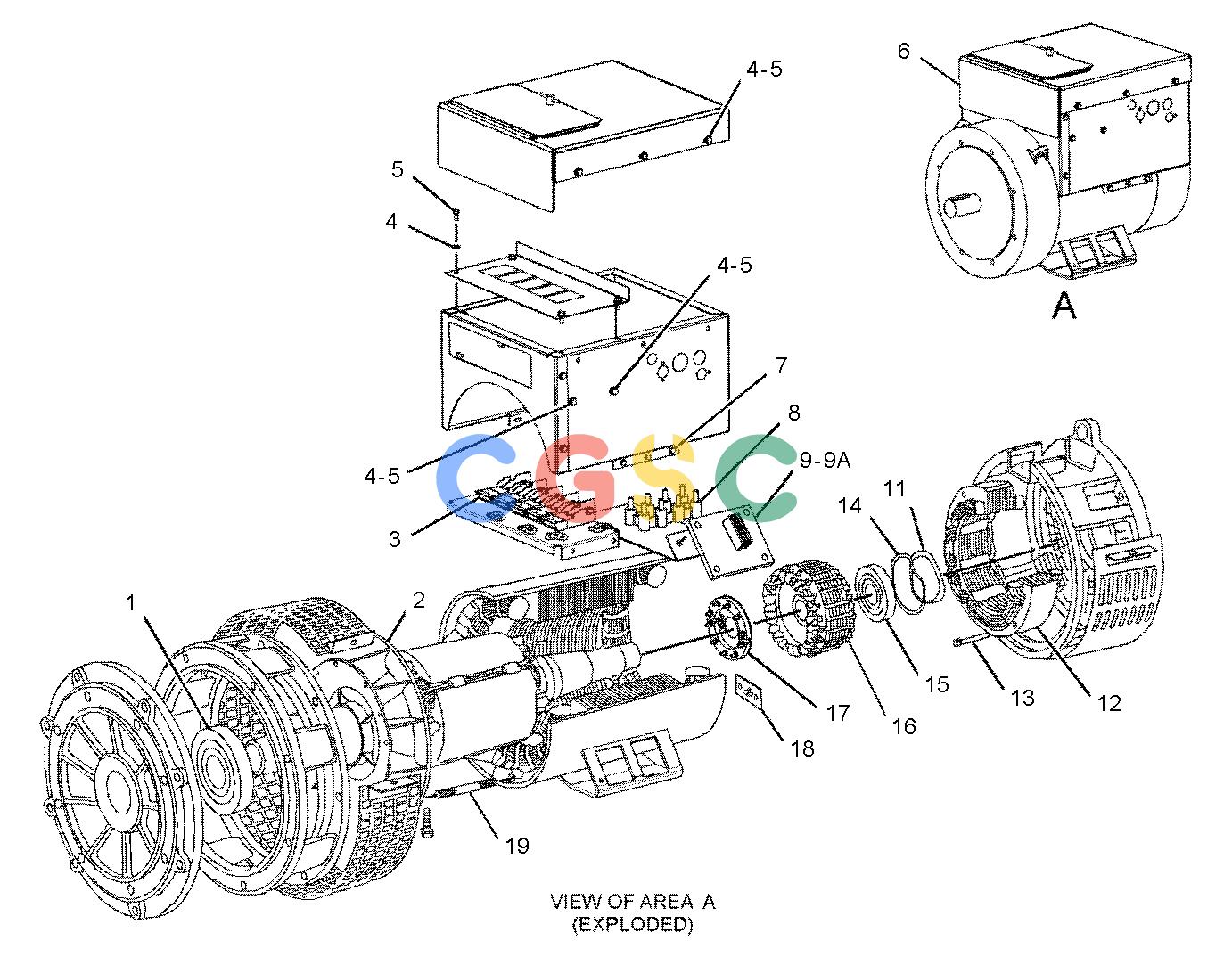

卡特零件查询（AP-655D） 288-4229: GENERATOR GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9F-3272 | [1] | BALL BEARING | |
| 2. | 261-3536 | [1] | FAN | |
| 3. | 232-0743 | [5] | MOUNT | |
| 4. | 8T-4205 | [18] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 5. | 5C-9553M | [18] | BOLT(M6X1X16-MM) | |
| 6. | 377-9823 | [1] | BOX-TERMINAL | |
| 7. | 6V-0884 | [6] | SCREW-MACHINE(1/4-20X0.375-IN) | |
| 8. | 261-3551 | [1] | PLATE-TERMINAL | |
| 9. | 312-0080 | [1] | REGULATOR AS-VOLTAGE | |
| 9A. | 292-7749 | [1] | FUSE(8-AMPERE) | |
| 11. | 261-3546 | [1] | RING | |
| 12. | | [1] | EXCITER |
| 13. | 261-3548 | [4] | BOLT | |
| 14. | 261-3559 | [1] | SEAL-O-RING | |
| 15. | 261-3545 | [1] | BEARING | |
| 16. | | [1] | ARMATURE |
| 17. | 261-3557 | [1] | DIODE AS | |
| 18. | 261-3558 | [1] | VARISTOR | |
| 19. | 261-3541 | [4] | TIE ROD | |
| | M | | METRIC PART |
