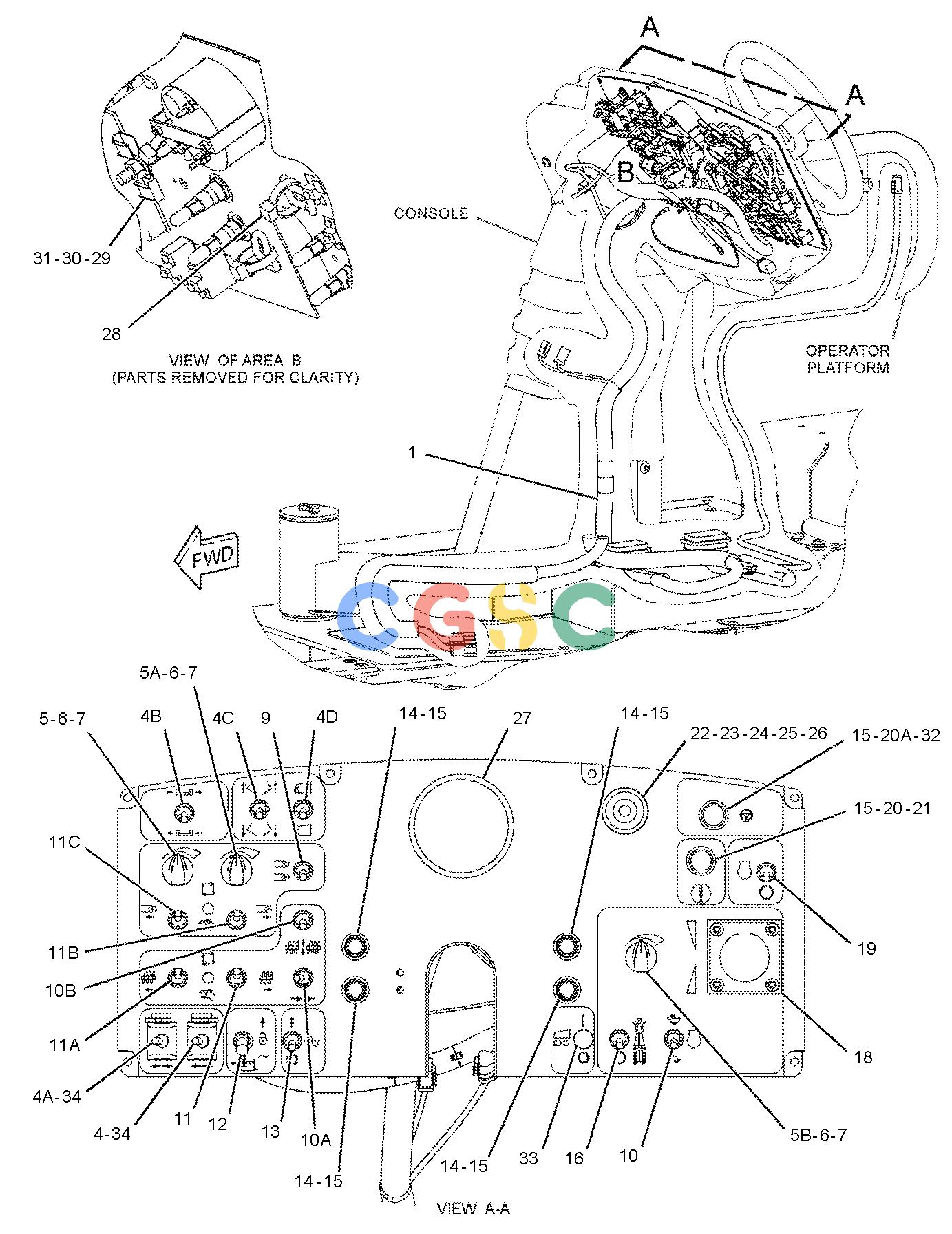

| 1. | 295-2832 | [1] | HARNESS AS-PANEL | |
| 4. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER CONTROL, RH) | |
| 4A. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER CONTROL, LH) | |
| 4B. | 246-8912 | [1] | SWITCH GP-TOGGLE(TRUCK HITCH) | |
| 4C. | 246-8912 | [1] | SWITCH GP-TOGGLE(DUAL HOPPER) | |
| 4D. | 246-8912 | [1] | SWITCH GP-TOGGLE(APRON FOLD) | |
| | | | (EACH SWITCH AS-TOGGLE INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 5. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, LH) | |
| 5A. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, RH) | |
| 5B. | 213-8147 | [1] | POTENTIOMETER AS(PROPEL SPEED) | |
| | | | (EACH POTENTIOMETER AS INCLUDES) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.3-M EACH) | |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(25-CM) | |
| 6. | 7C-4550 | [3] | SEAL(ROTATING SHAFT)(ROTATING SHAFT) | |
| 7. | 316-5717 | [3] | KNOB AS | |
| 9. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE)(CONVEYOR REVERSE) | |
| 10. | 9G-0011 | [1] | SWITCH AS-TOGGLE(THROTTLE) | |
| 10A. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER REVERSE) | |
| 10B. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER RAISE, LOWER) | |
| | | | (EACH SWITCH AS-TOGGLE INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 11. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, RH) | |
| 11A. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, LH) | |
| 11B. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, RH) | |
| 11C. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, LH) | |
| | | | (EACH SWITCH AS-TOGGLE INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 12. | 109-7187 | [1] | SWITCH AS-TOGGLE(SCREED HOIST) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 13. | 4D-1836 | [1] | SWITCH-TOGGLE(VIBRATORY) | |
| 14. | 7G-9730 | [4] | LAMP AS(120-VOLT, 3-WATT)(PANEL) | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 15. | 7N-5876 | [6] | LAMP(24-VOLT, 0.2-AMPERE)(CONSOLE) | |
| 16. | 1V-6652 | [1] | SWITCH AS-TOGGLE(TRANSMISSION) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 18. | 132-3090Y | [1] | LEVER GP-PROPEL | |
| 19. | 8N-0694Y | [1] | SWITCH AS-TOGGLE(SINGLE POLE)(ENGINE SHUTDOWN) | |
| 20. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT(HAZARD WARNING LIGHTS) | |
| 20A. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT(PANEL SELECT LIGHT) | |
| | | | (EACH BASE AS-INDICATOR INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 21. | 9D-2868 | [1] | LENS-RED | |
| 22. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(PARKING BRAKE) | |
| 23. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| 24. | 116-5277 | [2] | BLOCK(CONTACT) | |
| 25. | 116-5270 | [1] | LAMP(24-VOLT)(RED) | |
| 26. | 116-5274 | [1] | KNOB(PARKING BRAKE) | |
| 27. | 291-1590 | [1] | SPEEDOMETER AS | |
| 28. | 7K-1181 | [5] | STRAP-CABLE | |
| 29. | 116-0118 | [2] | CLIP | |
| 30. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 32. | 9D-9161 | [1] | LENS-GREEN | |
| 33. | 3V-4694 | [1] | PLUG-BUTTON | |
| 34. | 265-9984 | [2] | BRACKET | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
