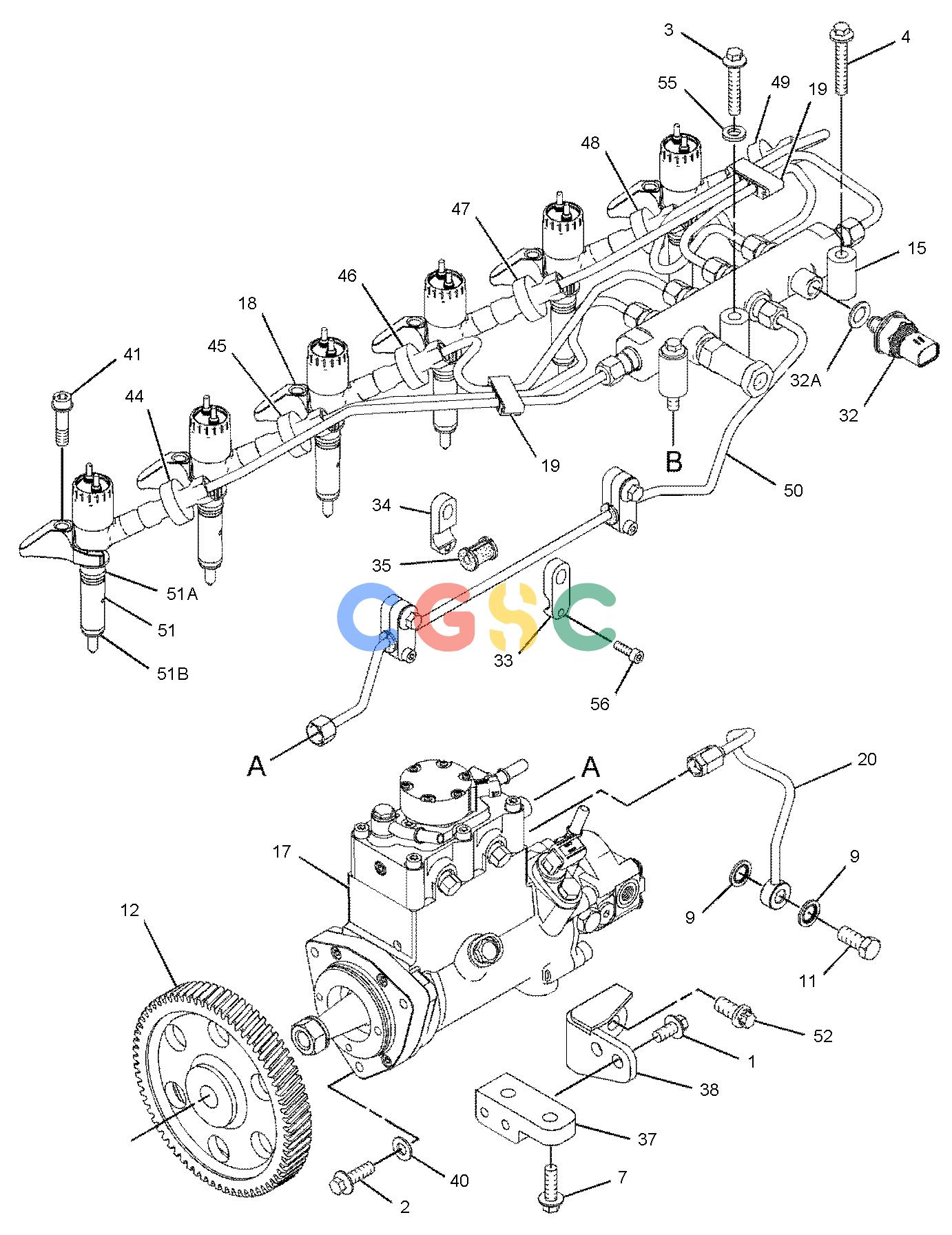

卡特零件查询（AP-655D） 278-5319: PUMP GP-FUEL INJECTION
广数供应链运营团队, 17 02月, 2025，浏览：
783 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0217M | [4] | BOLT(M8X1.25X20-MM) | |
| 2. | 6I-0254M | [3] | BOLT(M8X1.25X30-MM) | |
| 3. | 6I-0456M | [4] | BOLT(M8X1.25X45-MM) | |
| 4. | 6I-4793M | [3] | BOLT(M8X1.25X50-MM) | |
| 5. | 7W-2632 | [1] | WASHER(8.5X16.8X1.6-MM THK) | |
| 6. | 286-3683 | [1] | CONTROL GP-UNPROGRAMMED | |
| 7. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 8. | 155-0576 | [8] | MOUNT-ISOLATION | |
| 9. | 216-9752 | [2] | WASHER | |
| 10. | 217-0099 | [4] | SPACER(8.2X25X2-MM THK) | |
| 11. | 225-8524 | [1] | BOLT-SPECIAL | |
| 12. | 230-8989 | [1] | GEAR-FUEL PUMP(68-TEETH) | |
| 15. | 265-8125 | [1] | RAIL AS-FUEL | |
| 17. | 276-8398Y | [1] | PUMP GP-FUEL INJECTION | |
| 18. | 278-5168 | [6] | CLAMP-INJECTOR | |
| 19. | 278-5180 | [2] | CLIP | |
| 20. | 292-0848 | [1] | TUBE | |
| 21. | 278-5201 | [1] | CONNECTION | |
| 22. | 278-5203 | [4] | SPACER | |
| 23. | 293-9901 | [1] | BRACKET | |
| 24. | 278-5209 | [1] | BRACKET | |
| 25. | 278-5210 | [1] | BOLT | |
| 27. | 278-5225 | [1] | KIT-SENSOR(OIL PRESSURE) | |
| 27A. | 278-5226 | [1] | SEAL-O-RING | |
| 28. | 278-5228 | [1] | KIT-SENSOR(ENGINE SPEED) | |
| 28A. | 278-5227 | [1] | SEAL-O-RING | |
| 29. | 278-5272 | [1] | KIT-SENSOR(INTAKE AIR TEMPERATURE) | |
| 29A. | 278-5226 | [1] | SEAL-O-RING | |
| 30. | 278-5273 | [1] | KIT-SENSOR(AIR PRESSURE) | |
| 30A. | 199-9252 | [1] | SEAL-O-RING | |
| 31. | 278-5307 | [1] | KIT-SENSOR(COOLANT TEMPERATURE) | |
| 31A. | 199-9267 | [1] | SEAL-O-RING | |
| 32. | 278-5308 | [1] | KIT-SENSOR(FUEL RAIL PRESSURE) | |
| 32A. | 309-8006 | [1] | WASHER | |
| 33. | 280-1889 | [3] | CLAMP | |
| 34. | 280-1890 | [3] | CLAMP | |
| 35. | 280-1891 | [3] | ISOLATOR | |
| 37. | 282-3233 | [1] | BRACKET | |
| 38. | | [1] | BRACKET |
| 40. | 232-3149 | [6] | WASHER(8.35X16.85X1.55-MM THK) | |
| 41. | 278-5170 | [6] | BOLT | |
| 42. | 278-5202 | [2] | SEAL-O-RING | |
| 44. | 290-3911 | [1] | LINE-FUEL INJECTION(CYL NO. 1) | |
| 45. | 290-3912 | [1] | LINE-FUEL INJECTION(CYL NO. 2) | |
| 46. | 290-3913 | [1] | LINE-FUEL INJECTION(CYL NO. 3) | |
| 47. | 290-3914 | [1] | LINE-FUEL INJECTION(CYL NO. 4) | |
| 48. | 290-3915 | [1] | LINE-FUEL INJECTION(CYL NO. 5) | |
| 49. | 290-3916 | [1] | LINE-FUEL INJECTION(CYL NO. 6) | |
| 50. | 290-3910 | [1] | LINE-FUEL INJECTION | |
| 51. | 282-0480 | [6] | INJECTOR GP-FUEL | |
| | | | (EACH INCLUDES) |
| 51A. | 274-1639 | [1] | SEAL | |
| 51B. | 287-7637 | [1] | WASHER | |
| 52. | 287-6839 | [1] | BOLT | |
| 53. | 268-6677 | [1] | BRACKET AS | |
| | 260-3718 | [1] | BRACKET | |
| 53A. | 260-3939M | [1] | SCREW-HEX HEAD(M6X1X25-MM) | |
| 54. | 268-6678 | [1] | BRACKET AS | |
| | 260-3719 | [1] | BRACKET | |
| 54A. | 260-3939M | [1] | SCREW-HEX HEAD(M6X1X25-MM) | |
| 55. | 1N-3361 | [1] | SPACER | |
| 56. | 241-4291 | [3] | SCREW | |
| | | | |
| | 6I-0260FM | [1] | BOLT(M8X1.25X25-MM) | |
| | 101-3895FM | [1] | BOLT(M8X1.25X35-MM) | |
| | 278-4138F | [4] | KIT-FUEL LINE PROTECTION(LINE, LOW PRESSURE) | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
