卡特零件查询（AP-655D） 253-4752: ADJUSTER GP-HEIGHT
广数供应链运营团队, 17 02月, 2025，浏览：
400 次

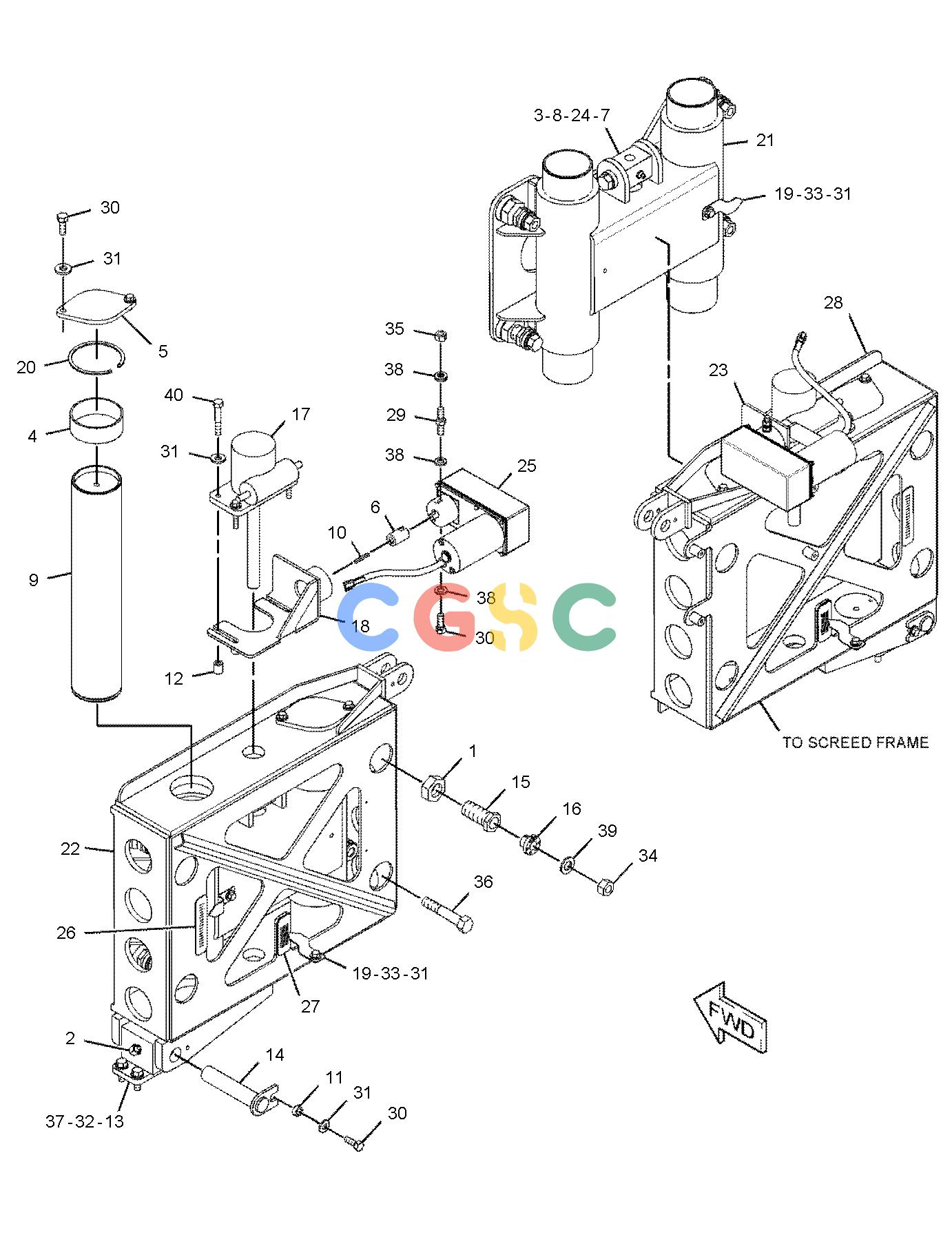

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1A-4168 | [8] | NUT(1-1/4-12-THD) | |
| 2. | 3B-8488 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 4. | 8I-0256 | [8] | BUSHING | |
| 5. | 8I-0267 | [4] | CAP | |
| 6. | 8I-0740 | [2] | COUPLING GP | |
| | | | (EACH INCLUDES) |
| | 4B-9806 | [1] | SETSCREW-SOCKET(1/4-20X0.25-IN) | |
| 7. | 8I-0901 | [2] | TRUNNION | |
| 8. | 8I-0902 | [4] | SPACER(0.75X1.50X1-IN THK) | |
| 9. | 354-6744 | [4] | TUBE AS | |
| 10. | 102-2739 | [2] | KEY-SQUARE | |
| 11. | 106-6340 | [2] | SPACER(10.74X17.14X7-MM THK) | |
| 12. | 113-4339 | [8] | SPACER(10.5X18X21-MM THK) | |
| 13. | 165-4655 | [2] | BLOCK AS(PIVOT) | |
| 14. | 165-4731 | [2] | PIN AS | |
| 15. | 185-5431 | [8] | BOLT-SPECIAL | |
| 16. | 185-5432 | [8] | LOCK | |
| 17. | 196-2503Y | [2] | JACK GP-HEIGHT ADJUSTER | |
| 18. | 196-2564 | [1] | BRACKET AS | |
| 19. | 196-2566 | [4] | POINTER | |
| 20. | 198-2819 | [8] | RING-RETAINING | |
| 21. | 206-6621 | [2] | PLATE AS | |
| 22. | 206-6622 | [1] | FRAME AS(LH) | |
| 23. | 206-6630 | [1] | BRACKET AS | |
| 24. | 253-9037 | [4] | BOLT(3/4-16X1.75-IN) | |
| 25. | 277-2006Y | [2] | MOTOR GP-POWER ADJUSTER | |
| 26. | 277-3180 | [2] | FILM-IDENTIFICATION(HEIGHT ADJUST) | |
| 27. | 277-3181 | [2] | FILM-IDENTIFICATION(SLOPE) | |
| 28. | 294-7761 | [1] | FRAME AS(RH) | |
| 29. | 174-4883 | [2] | STUD(3/8-16X2-IN)(BOLT) | |
| 30. | 4L-6454 | [12] | BOLT(3/8-16X1-IN) | |
| 31. | 5P-1075 | [22] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 32. | 5P-2566 | [8] | BOLT(1/2-13X1.5-IN) | |
| 33. | 5P-8167 | [4] | BOLT(3/8-16X0.625-IN) | |
| 34. | 6V-8182 | [6] | NUT(3/4-10-THD) | |
| 35. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 36. | 7X-0372 | [2] | BOLT(3/4-10X4.25-IN) | |
| 37. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 38. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 39. | 8T-4994 | [8] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 40. | 8T-9377 | [8] | BOLT(3/8-16X2.25-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
