卡特零件查询（AP-655D） 290-1628: CROWN GP-POWER
广数供应链运营团队, 17 02月, 2025，浏览：
891 次

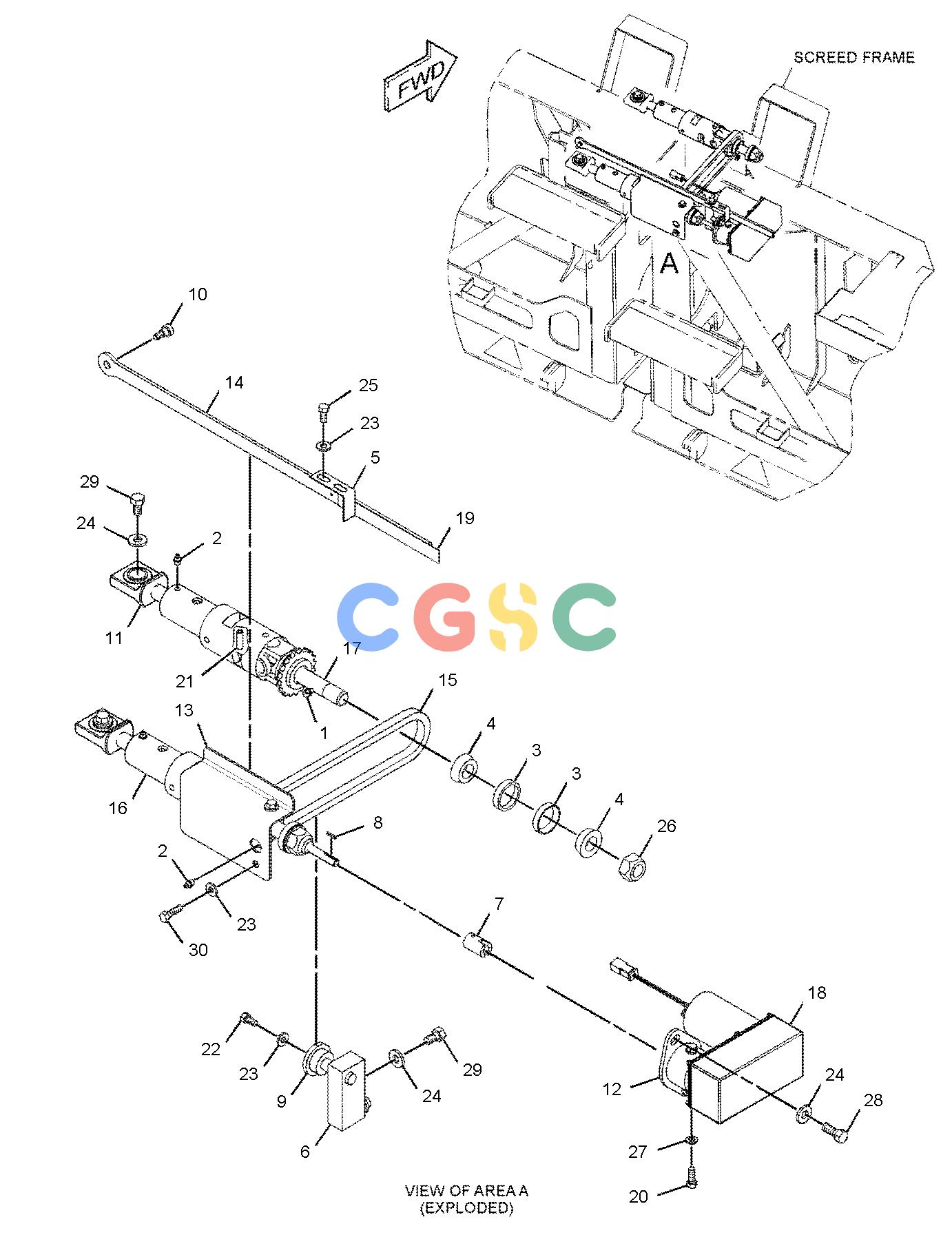

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 3B-8489 | [3] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 3P-8680 | [4] | CUP-BEARING | |
| 4. | 3P-8681 | [4] | CONE-BEARING | |
| 5. | 8I-0358 | [1] | POINTER | |
| 6. | 8I-0586 | [1] | BLOCK-TAKEUP | |
| 7. | 8I-0740 | [1] | COUPLING GP | |
| | 4B-9806 | [1] | SETSCREW-SOCKET(1/4-20X0.25-IN) | |
| 8. | 102-2739 | [1] | KEY-SQUARE | |
| 9. | 119-0750 | [1] | SPROCKET(12-TEETH) | |
| 10. | 190-5083 | [1] | BOLT-SPECIAL | |
| 11. | 193-1310 | [2] | BEARING GP-SCREED | |
| | | | (EACH INCLUDES) |
| | 7X-8686 | [1] | BEARING(SPHERICAL) | |
| 12. | 197-5276 | [1] | BRACKET AS | |
| 13. | 197-9840 | [1] | COVER AS | |
| | 185-1445 | [2] | BOSS(12.7X25.4X15.7-MM THK) | |
| 14. | 197-9842 | [1] | PLATE | |
| 15. | 197-9844Y | [1] | CHAIN GP-SCREED | |
| 16. | 197-9849Y | [1] | SHAFT GP-DRIVE(REAR)(ACTUATED) | |
| 17. | 197-9850Y | [1] | SHAFT GP-DRIVE(FRONT)(NON-ACTUATED) | |
| 18. | 277-2004Y | [1] | MOTOR GP-POWER ADJUSTER(ACTUATED) | |
| 19. | 277-3182 | [1] | FILM-IDENTIFICATION(CROWN) | |
| 20. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 21. | 5J-3941 | [2] | PIN-SPRING | |
| 22. | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 23. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 24. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 25. | 5S-7379 | [1] | BOLT(3/8-16X0.875-IN) | |
| 26. | 6K-3632 | [2] | LOCKNUT(1-8-THD) | |
| 27. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 28. | 8T-8917 | [2] | BOLT(1/2-13X1.25-IN) | |
| 29. | 8T-9384 | [4] | BOLT(1/2-13X0.875-IN) | |
| 30. | 9B-7237 | [2] | BOLT(3/8-16X1.25-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
