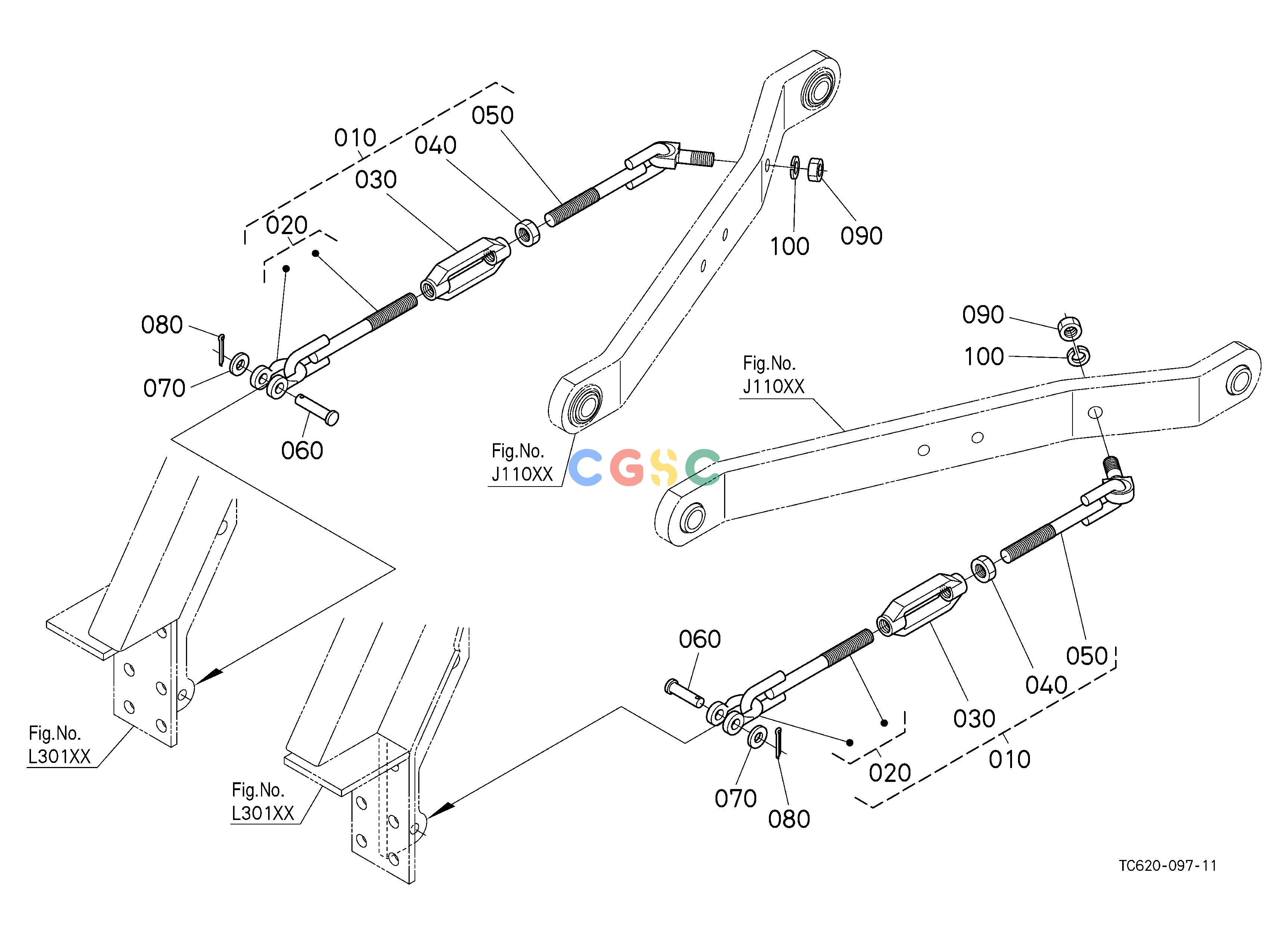

久保田零件查询J11200 CHECK CHAIN 3-POINT LINKAGE/DRAWBAR/HITCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
677 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC62039700
|
[2] |
CHAIN,ASSY(CHECK)
|
0.0000(lbs); 0.000
|
| 020. |
TC62039710
|
[2] |
CHAIN(CHECK,1)
|
0.0000(lbs); 0.000
|
| 030. |
TC62039730
|
[2] |
TURNBUCKLE(CHECK CHAIN)
|
0.0000(lbs); 0.000
|
| 040. |
TC62039740
|
[2] |
NUT(CHECK CHAIN)
|
0.0000(lbs); 0.000
|
| 050. |
TC62039720
|
[2] |
CHAIN(CHECK,2)
|
0.0000(lbs); 0.000
|
| 060. |
3235371890
|
[2] |
PIN
|
0.0902(lbs); 0.041
|
| 070. |
0401350120
|
[2] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 080. |
0551150425
|
[2] |
PIN,SPLIT
|
0.0066(lbs); 0.003
|
| 080. |
0551150430
|
[2] |
PIN,SPLIT
|
0.0088(lbs); 0.004
|
| 090. |
0207450160
|
[2] |
NUT
|
0.0638(lbs); 0.029
|
| 100. |
0451250160
|
[2] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
