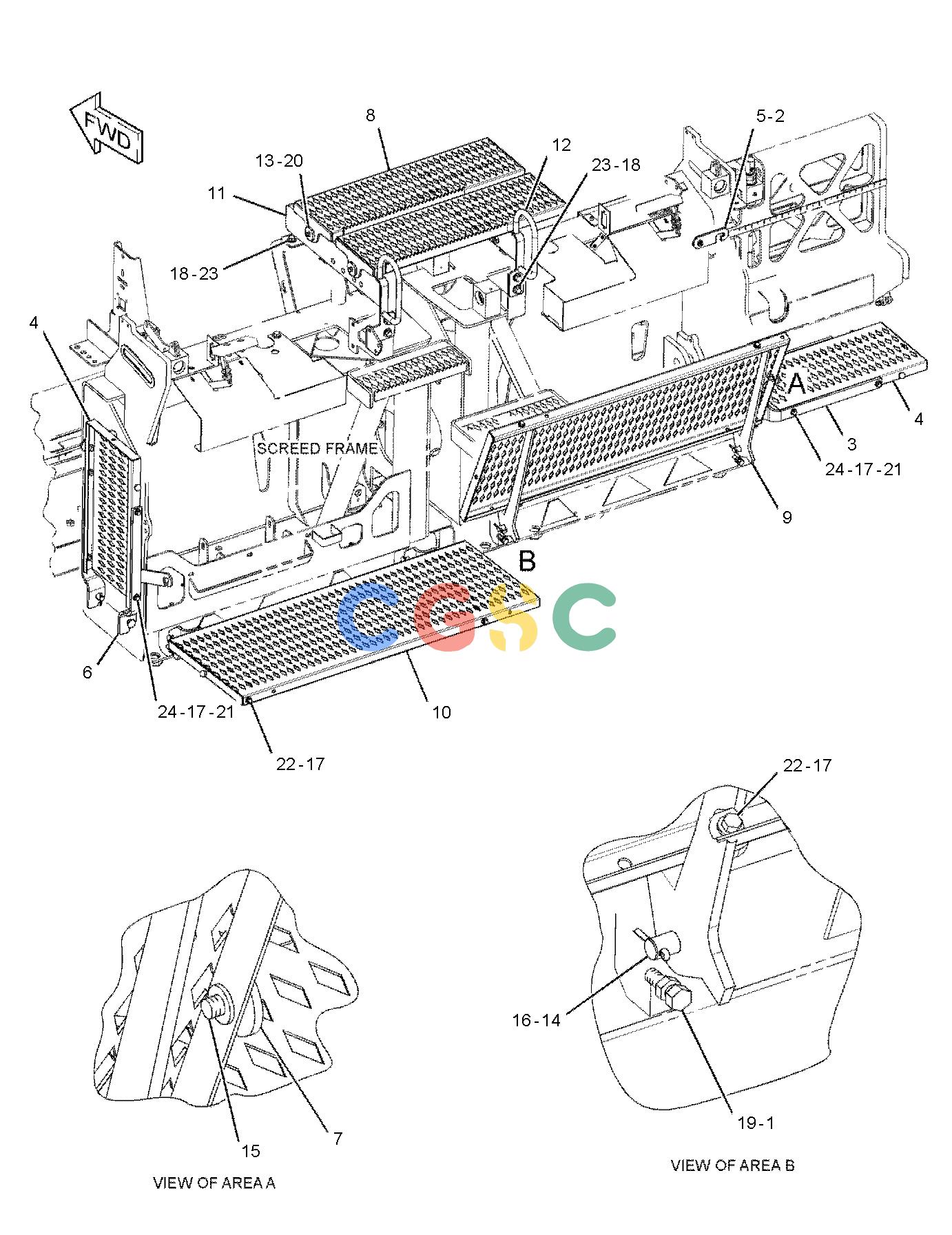

卡特零件查询（AP-655D） 295-3087: PLATFORM GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
905 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3H-3680 | [4] | NUT-JAM(1/2-13-THD) | |
| 2. | 190-5083 | [2] | BOLT-SPECIAL | |
| 3. | 193-1301 | [2] | BRACKET | |
| 4. | 193-1303 | [2] | PLATFORM AS(EXTENDER) | |
| | | | (EACH INCLUDES) |
| | 5P-8245 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 5. | 193-1304 | [2] | PLATE | |
| 6. | 197-9752 | [2] | BRACKET | |
| 7. | 319-9595 | [2] | PLATE | |
| 8. | 256-8781 | [2] | WALKWAY AS | |
| 9. | 284-2789 | [4] | BRACKET AS | |
| 10. | 290-9928 | [2] | WALKWAY AS(MAIN) | |
| 11. | 299-5220 | [1] | PLATFORM AS(LH) | |
| 12. | 299-5221 | [1] | PLATFORM AS(RH) | |
| 13. | 115-6433 | [2] | WASHER(11X50X6-MM THK) | |
| 14. | 1S-5395 | [8] | PIN | |
| 15. | 204-3389 | [2] | BOLT-SPECIAL | |
| 16. | 3B-4629 | [8] | PIN-COTTER | |
| 17. | 5P-1075B | [28] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 18. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 19. | 5P-2566 | [4] | BOLT(1/2-13X1.5-IN) | |
| 20. | 5P-8167 | [2] | BOLT(3/8-16X0.625-IN) | |
| 21. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 22. | 8T-2502 | [8] | BOLT(3/8-16X1.125-IN) | |
| 23. | 8T-8917 | [8] | BOLT(1/2-13X1.25-IN) | |
| 24. | 9B-7237 | [8] | BOLT(3/8-16X1.25-IN) | |
| | B | | USE AS REQUIRED |
