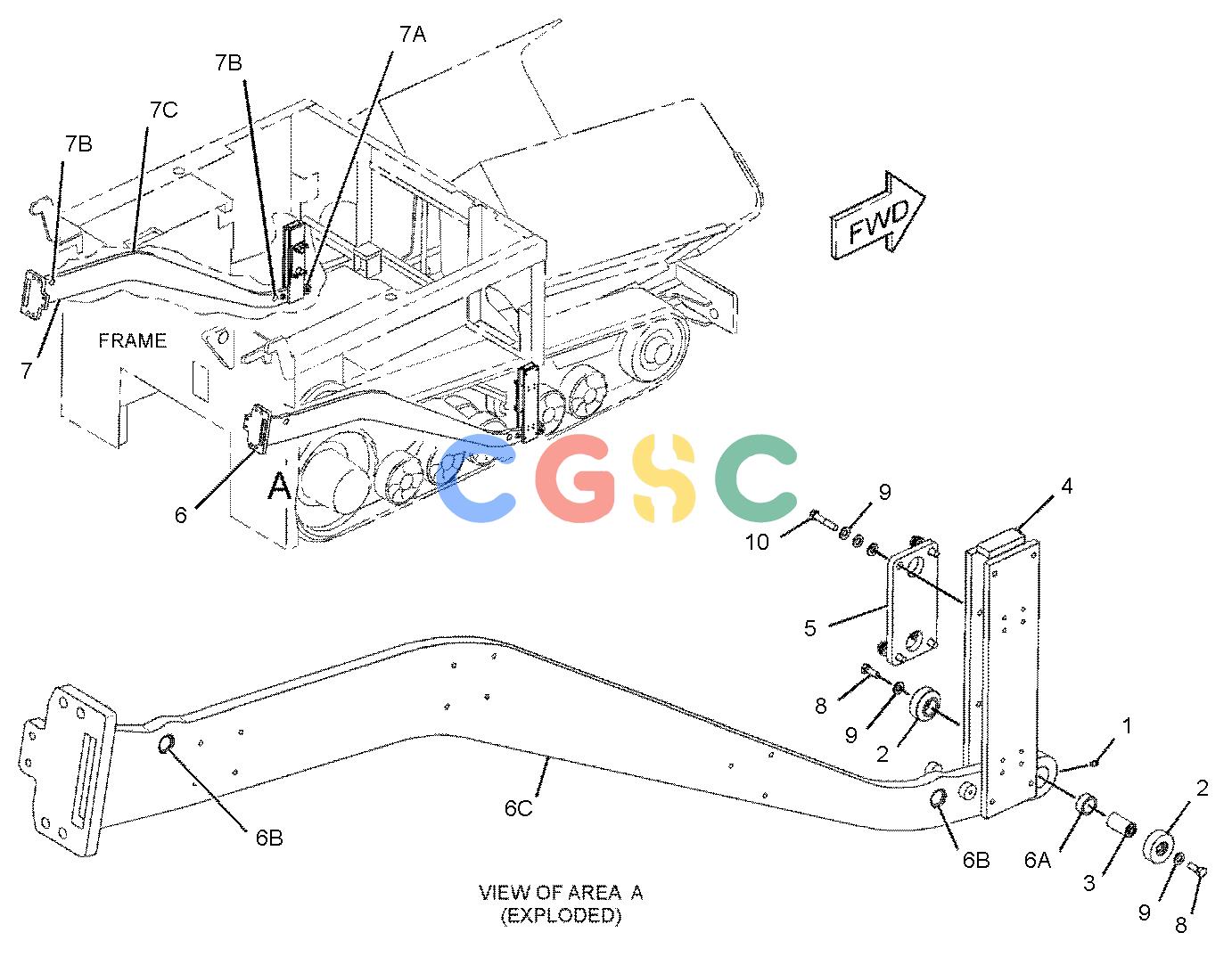

卡特零件查询（AP-655D） 263-5955: ARM GP-TOW
广数供应链运营团队, 17 02月, 2025，浏览：
431 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 194-4519 | [4] | ROLLER | |
| 3. | 194-4520 | [2] | SHAFT | |
| 4. | 243-1087 | [2] | SUPPORT AS | |
| 5. | 271-2315 | [2] | PLATE | |
| 6. | 343-4128 | [1] | ARM GP-TOW(RH) | |
| 6A. | 9W-2401 | [1] | BEARING-ALIGNING | |
| 6B. | 005-8639 | [2] | BEARING-ALIGNING | |
| 6C. | 263-5963 | [1] | ARM AS(RH) | |
| 7. | 343-4129 | [1] | ARM GP-TOW(LH) | |
| 7A. | 9W-2401 | [1] | BEARING-ALIGNING | |
| 7B. | 005-8639 | [2] | BEARING-ALIGNING | |
| 7C. | 263-5964 | [1] | ARM AS(LH) | |
| 8. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 9. | 8T-4223 | [28] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8T-4910M | [8] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
