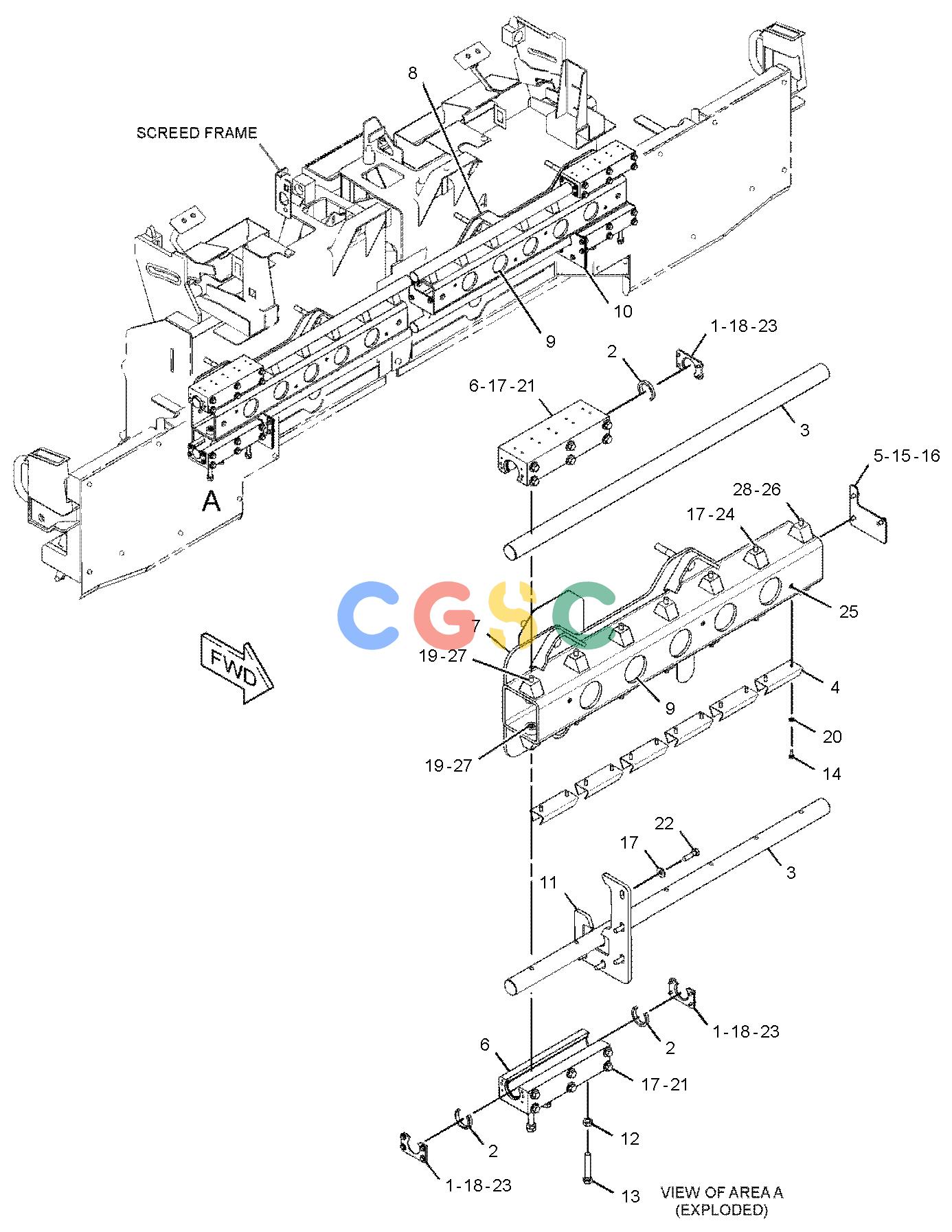

卡特零件查询（AP-655D） 295-3079: CARRIAGE GP-EXTENDER
广数供应链运营团队, 17 02月, 2025，浏览：
596 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 185-5425 | [6] | SCRAPER(BRASS) | |
| 2. | 196-2557 | [6] | SCRAPER AS | |
| 3. | 206-6707 | [4] | SHAFT | |
| 4. | 206-6714 | [12] | CHANNEL | |
| 5. | 217-7684 | [2] | COVER | |
| 6. | 218-1857 | [4] | HOUSING AS | |
| 7. | 353-2361C | [1] | FRAME AS(RH) | |
| 8. | 353-2362C | [1] | FRAME AS(LH) | |
| 9. | 297-0834 | [2] | COVER AS-ACCESS | |
| 10. | 309-9204 | [1] | PLATE | |
| 11. | 309-9205 | [1] | PLATE | |
| 12. | 164-4539 | [6] | BOLT(5/8-11X3.5-IN) | |
| 13. | 1D-5118 | [6] | NUT-JAM(5/8-11-THD) | |
| 14. | 4M-0061 | [24] | BOLT(5/16-18X0.75-IN) | |
| 15. | 5M-3062 | [6] | BOLT(3/8-16X0.75-IN) | |
| 16. | 5P-1075 | [6] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 17. | 5P-1076 | [56] | WASHER-HARD(13.5X30X4-MM THK) | |
| 18. | 5P-4115 | [24] | WASHER-HARD(7.2X19X2-MM THK) | |
| 19. | 5S-2389 | [4] | BOLT-SOCKET HEAD(1/2-13X2.75-IN) | |
| 20. | 8T-4224 | [24] | WASHER-HARD(8.8X16X2-MM THK) | |
| 21. | 8T-8917 | [24] | BOLT(1/2-13X1.25-IN) | |
| 22. | 8T-8919 | [10] | BOLT(1/2-13X1.75-IN) | |
| 23. | 8T-9364 | [24] | BOLT(1/4-20X0.625-IN) | |
| 24. | 8T-9389 | [22] | BOLT(1/2-13X2.75-IN) | |
| 25. | 9M-2750 | [8] | SCREW-HEX SOCKET(1/4-20X0.62-IN) | |
| 26. | 7X-0605 | [2] | WASHER-HARD(13X28X1.6-MM THK) | |
| 27. | 206-6717C | [4] | PLATE | |
| 28. | 7X-0325 | [2] | BOLT(1/2-13X2.5-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
