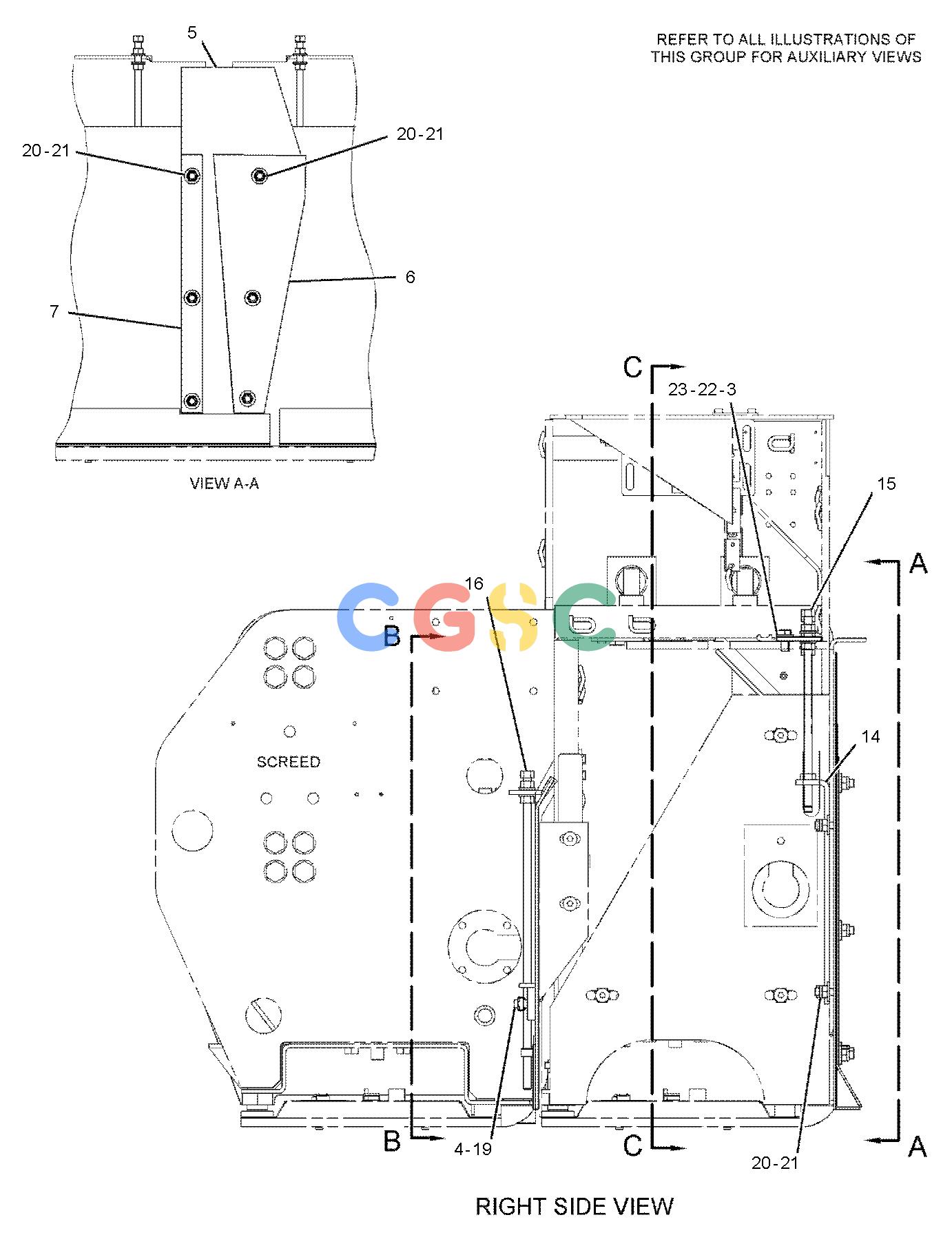

卡特零件查询（AP-655D） 276-4582: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0298 | [1] | PLATE AS(LH) | |
| 2. | 8I-0299 | [1] | PLATE AS(RH) | |
| 3. | 8I-0332 | [2] | PLATE-MOUNTING | |
| 4. | 104-2231 | [8] | NUT-SPRING | |
| 5. | 165-3558 | [1] | PLATE | |
| 6. | 165-3559 | [1] | PLATE | |
| 7. | 165-3560 | [1] | PLATE | |
| 8. | 277-3185 | [1] | FILM-SCALE(1-IN TO 28-IN)(RH) | |
| 9. | 277-3187 | [1] | FILM-SCALE(1-IN TO 28-IN)(LH) | |
| 10. | 279-4235 | [1] | FILM-IDENTIFICATION(EXTENDER CONTROL, RH)(RH) | |
| 11. | 279-4237 | [1] | FILM-IDENTIFICATION(EXTENDER CONTROL, LH)(LH) | |
| 12. | 279-9785 | [1] | PLATE AS(LH)(LH) | |
| 13. | 279-9786 | [1] | PLATE AS(RH)(RH) | |
| 14. | 279-9915 | [4] | BRACKET AS | |
| 15. | 281-0801 | [4] | ROD AS-ADJUSTING | |
| 16. | 284-9087 | [4] | ROD AS-ADJUSTING | |
| 17. | 284-9089 | [1] | PLATE AS(LH)(LH) | |
| 18. | 284-9090 | [1] | PLATE AS(RH)(RH) | |
| 19. | 107-2784 | [8] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 20. | 129-3180M | [18] | LOCKNUT(M12X1.75-THD) | |
| 21. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 22. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 23. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
