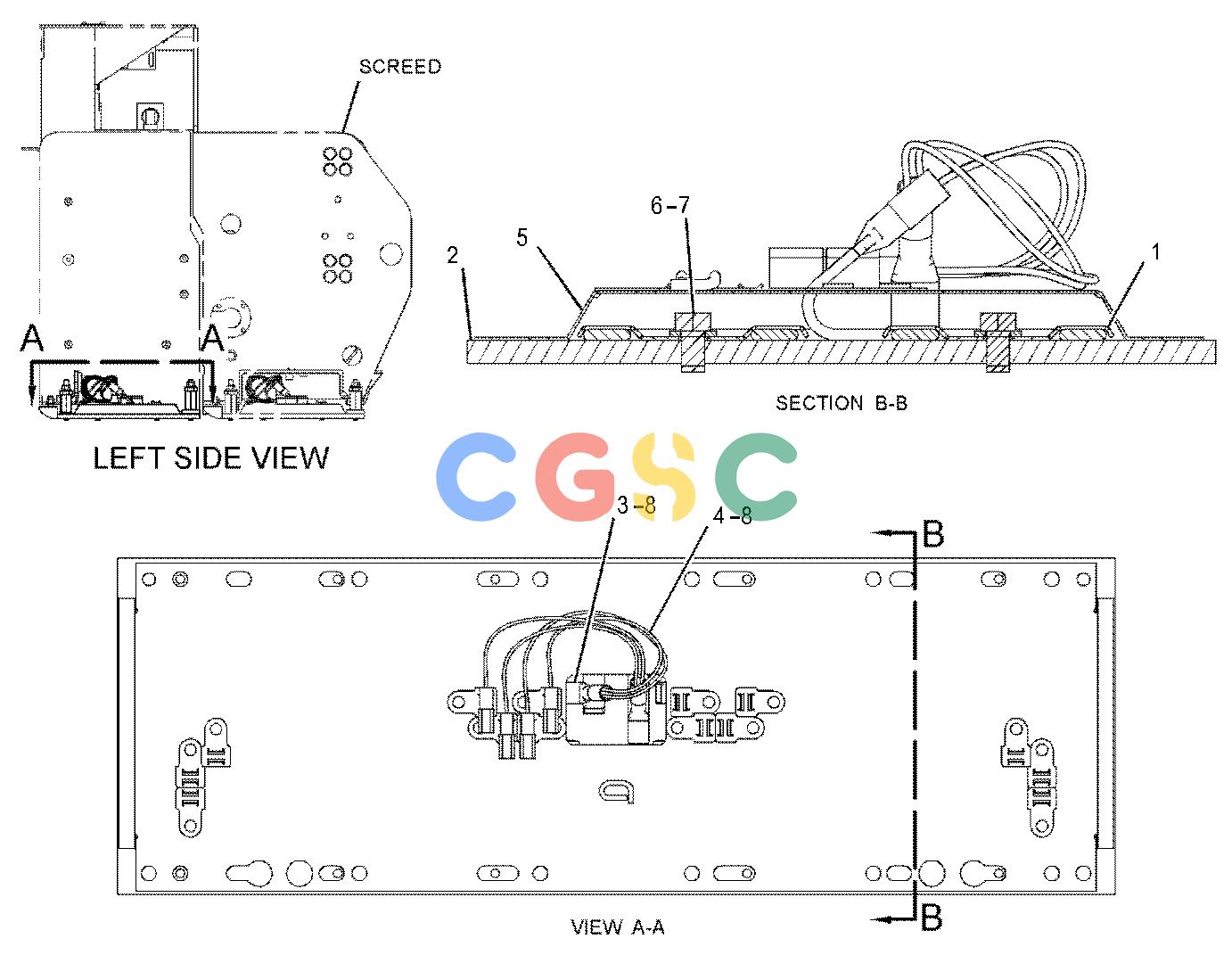

卡特零件查询（AP-655D） 308-3132: PLATE GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
332 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 250-0737 | [8] | BRACKET(LH) | |
| 2. | 251-0013 | [1] | PLATE(LH) | |
| 3. | 349-3015C | [1] | HEATER AS-SCREED(240-VOLT, 1099-WATT) | |
| 4. | 349-3018C | [1] | HEATER AS-SCREED(240-VOLT, 2901-WATT) | |
| | | | (EACH HEATER AS INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 5. | 308-0641 | [1] | PLATE AS | |
| 6. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 8T-9384 | [8] | BOLT(1/2-13X0.875-IN) | |
| 8. | 5P-9210B | | COMPOUND(397-GRAM CARTRIDGE) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
