卡特零件查询（AP-655D） 286-3627: LINES GP-TAMPER

广数供应链运营团队, 17 02月, 2025，浏览： 841 次

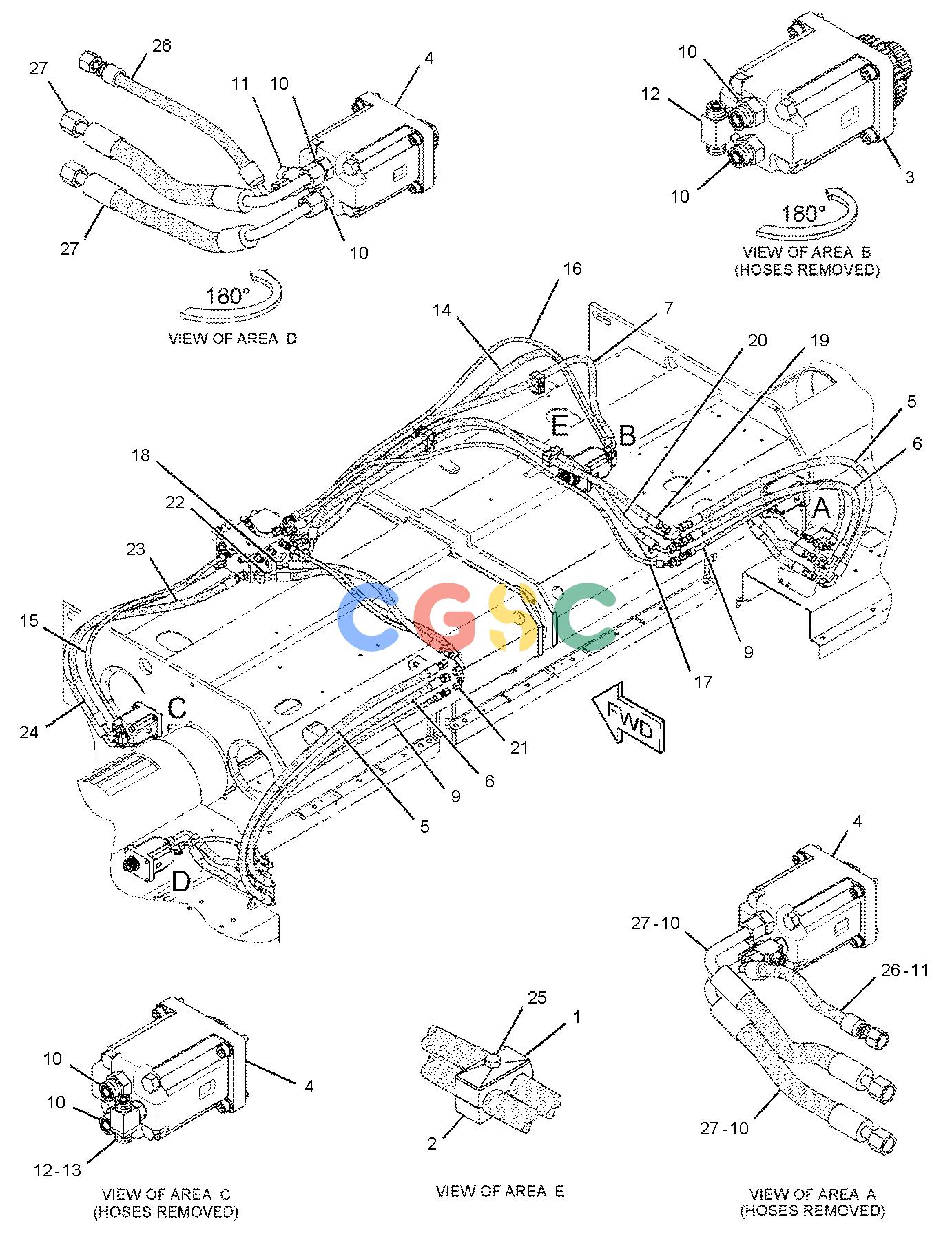

Pos.	Part No	Qty	Parts name
1.	102-8705	[4]	PLATE(TOP)
2.	206-6411	[8]	CLAMP-HALF
3.	258-7162Y	[1]	MOTOR & MTG GP-TAMPER(VIBRATORY)
4.	258-7185Y	[3]	MOTOR & MTG GP-TAMPER(VIBRATORY)
5.	275-9749I	[2]	HOSE AS
6.	275-9760I	[2]	HOSE AS
7.	295-1657I	[1]	HOSE AS
9.	295-1658I	[2]	HOSE AS
10.	148-8345	[8]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8638	[1]	CONNECTOR
11.	148-8435	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
12.	148-8439	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8774	[1]	TEE
13.	250-1424	[1]	ELBOW AS
	6V-8724	[1]	ELBOW
	214-7568	[1]	SEAL-O-RING
	221-3494	[1]	SEAL-O-RING
14.	250-5611I	[1]	HOSE AS
15.	265-2881I	[1]	HOSE AS
16.	265-2882I	[1]	HOSE AS
17.	265-2883I	[1]	HOSE AS
18.	275-9750I	[1]	HOSE AS
19.	275-9753I	[1]	HOSE AS
20.	275-9761I	[1]	HOSE AS
21.	275-9762I	[1]	HOSE AS
22.	275-9763I	[1]	HOSE AS
23.	278-0577I	[1]	HOSE AS
24.	278-0578I	[1]	HOSE AS
25.	8T-6912M	[4]	BOLT(M8X1.25X50-MM)
26.	208-1806I	[2]	HOSE AS
27.	265-2877I	[4]	HOSE AS
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
